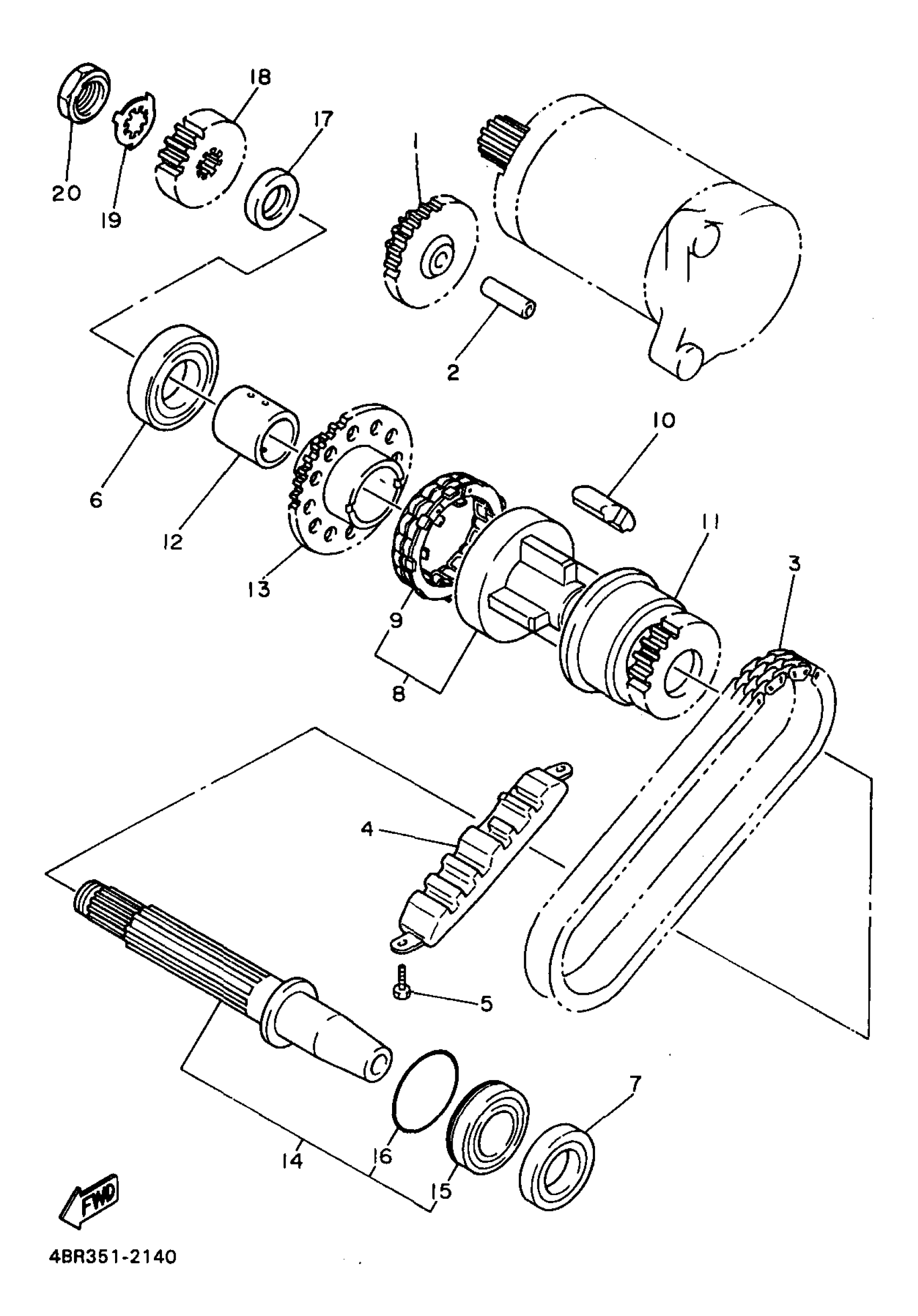

Yamaha XJ600SJC (SECA II CA) 4DUH 1997 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

4BP-15512-00-00

Unavailable

2

SHAFT 1

33M-15521-00-00

Unavailable

3

CHAIN, PRIMARY

4BR-16139-00-00

Unavailable

4

GUIDE,UPPER

4BP-11474-00-00

Unavailable

5

BOLT(8CP)

97017-06014-00

$8.49

6

BEARING (3Y1)

93306-30525-00

$63.99

7

OIL SEAL (4G0)

93102-25253-00

$15.99

8

STARTER CLUTCH ASSY

4BR-15570-00-00

Unavailable

9

STARTER CLUTCH ASSY

4BR-15580-01-00

$84.99

10

ABSORBER 1

4BR-16155-00-00

$7.99

11

GEAR, DRIVEN

4BR-11537-00-00

Unavailable

12

COLLAR (4BP1)

90387-253Y6-00

Unavailable

13

GEAR, IDLER 2

4BP-15517-00-00

Unavailable

14

SHAFT ASSEMBLY

4G0-11406-00-00

Unavailable

15

BEARING (4G0)

93306-20545-00

$49.99

16

O-RING (4G0)

93210-47440-00

Unavailable

17

COLLAR(4HM)

90387-2103N-00

Unavailable

18

GEAR, PRIMARY DRIVE (28T)

4U8-16111-00-00

Unavailable

19

WASHER, LOCK (4G0)

90215-19226-00

Unavailable

20

NUT

90179-16319-00

Unavailable
