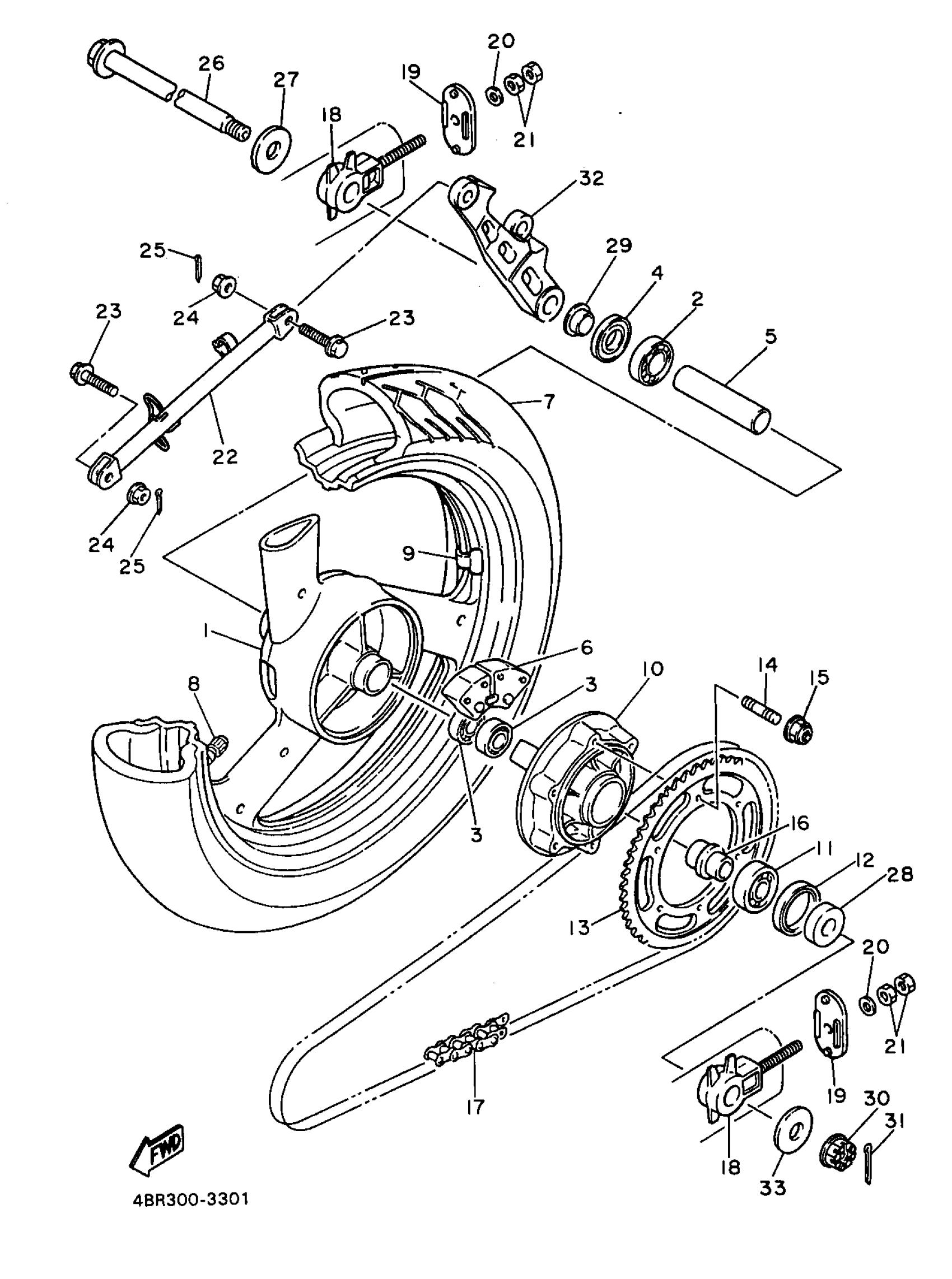

Yamaha XJ600SJC (SECA II CA) 4DUH 1997 REAR WHEEL Diagram
#
Description
Price
1
WHEEL,CAST REAR
3HE-25338-00-33
Unavailable
5
COLLAR
90387-174V8-00
Unavailable
7
TIRE (130/70-18 63H D103A)
94113-1807X-00
Unavailable
9
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
10
CLUTCH, HUB
4BP-25366-00-00
Unavailable
12
OIL SEAL(47X)
93105-42024-00
Unavailable
14
BOLT, STUD(1TX)
90116-10485-00
Unavailable
15
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
16
COLLAR(47X)
90387-177K0-00
Unavailable
17
CHAIN(4BR)
94581-30110-00
Unavailable
18
PULLER, CHAIN 1
4BP-25388-00-00
Unavailable
19
END 1
3YX-22174-00-00
Unavailable
20
.. WASHER, PLATE
92990-08600-00
Unavailable
21
NUT (661)
95380-08600-00
Unavailable
22
BAR,TENSION
4BR-25371-01-00
Unavailable
23
BOLT, FLANGE
90105-08777-00
Unavailable
24
NUT, FLANGE
95704-08500-00
Unavailable
25
PIN, COTTER (648)
91490-20015-00
Unavailable
26
AXLE, WHEEL
3HE-25381-01-00
Unavailable
27
WASHER, PLATE(3HE)
90201-170T3-00
Unavailable
28
COLLAR
90387-177Y5-00
Unavailable
29
COLLAR (3HE)
90387-177Y4-00
Unavailable
30
NUT, CASTLE (2H6)
90171-16024-00
Unavailable
31
PIN, COTTER
91490-30030-00
Unavailable
32
BRACKET, CALIPER
3HE-25819-01-00
Unavailable
33
WASHER, PLATE(3LD)
90201-160T2-00
Unavailable
