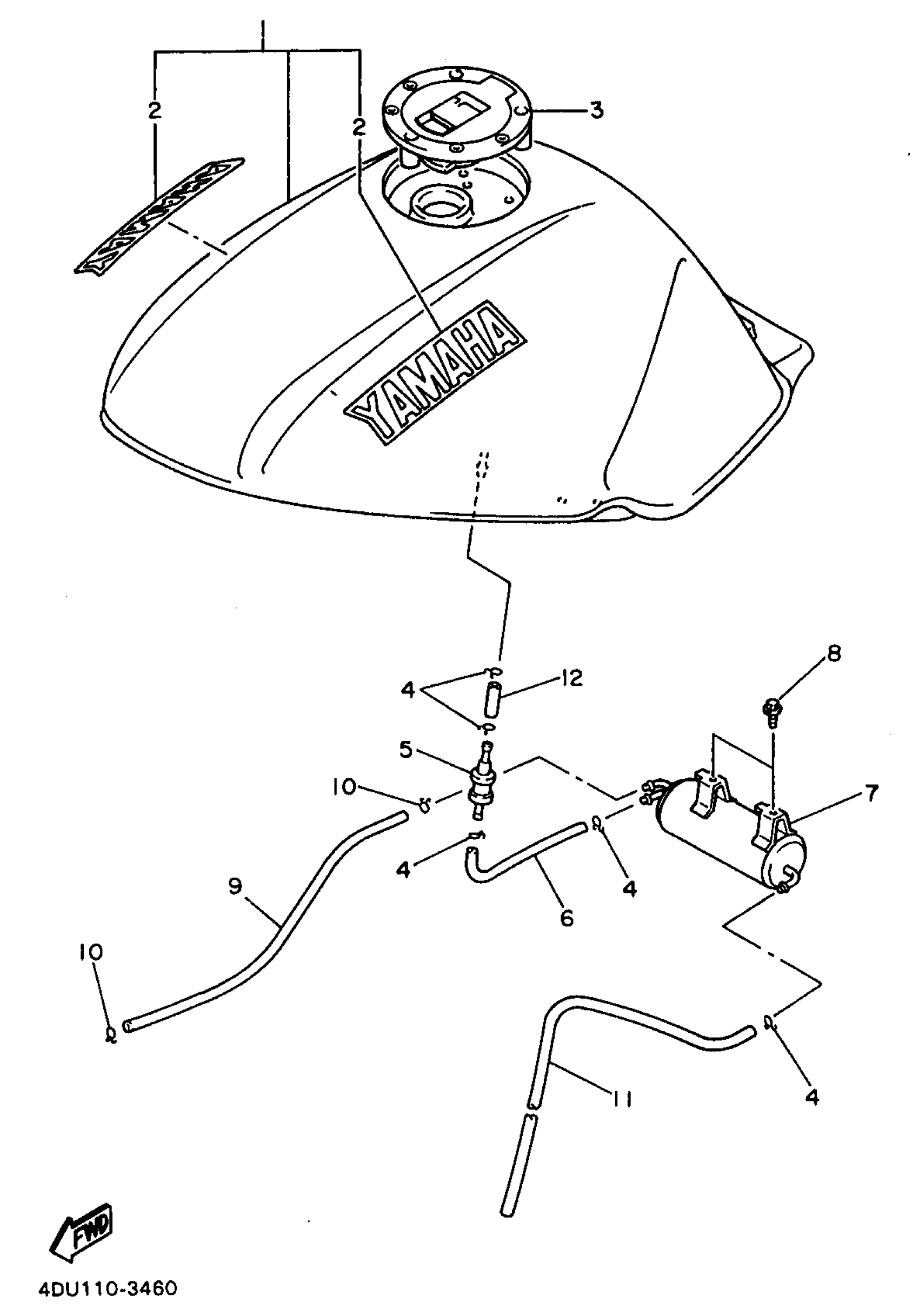

Yamaha XJ600SJC (SECA II CA) 4DUH 1997 FUEL TANK CALIFORNIA ONLY Diagram

#

Description
Price

1

FUEL TANK COMP.

4BP-24110-11-07

Unavailable

1

FUEL TANK COMP.

4BP-24110-10-W4

Unavailable

2

EMBLEM, YAMAHA

99246-00140-00

$22.45

3

CAP ASSY

4HM-24602-01-00

$259.03

4

CLIP

90467-100A1-00

$5.96

5

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

6

PIPE, FUEL 1

1UA-24311-00-00

Unavailable

7

CANISTER ASSEMBLY

4DU-24170-00-00

Unavailable

8

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

9

HOSE (L450)

90445-10144-00

$4.23

10

CLIP

90467-090A2-00

$2.47

11

PIPE, FUEL 1

2LJ-24311-00-00

Unavailable

12

HOSE (L120)

90445-113E8-00

$3.56
