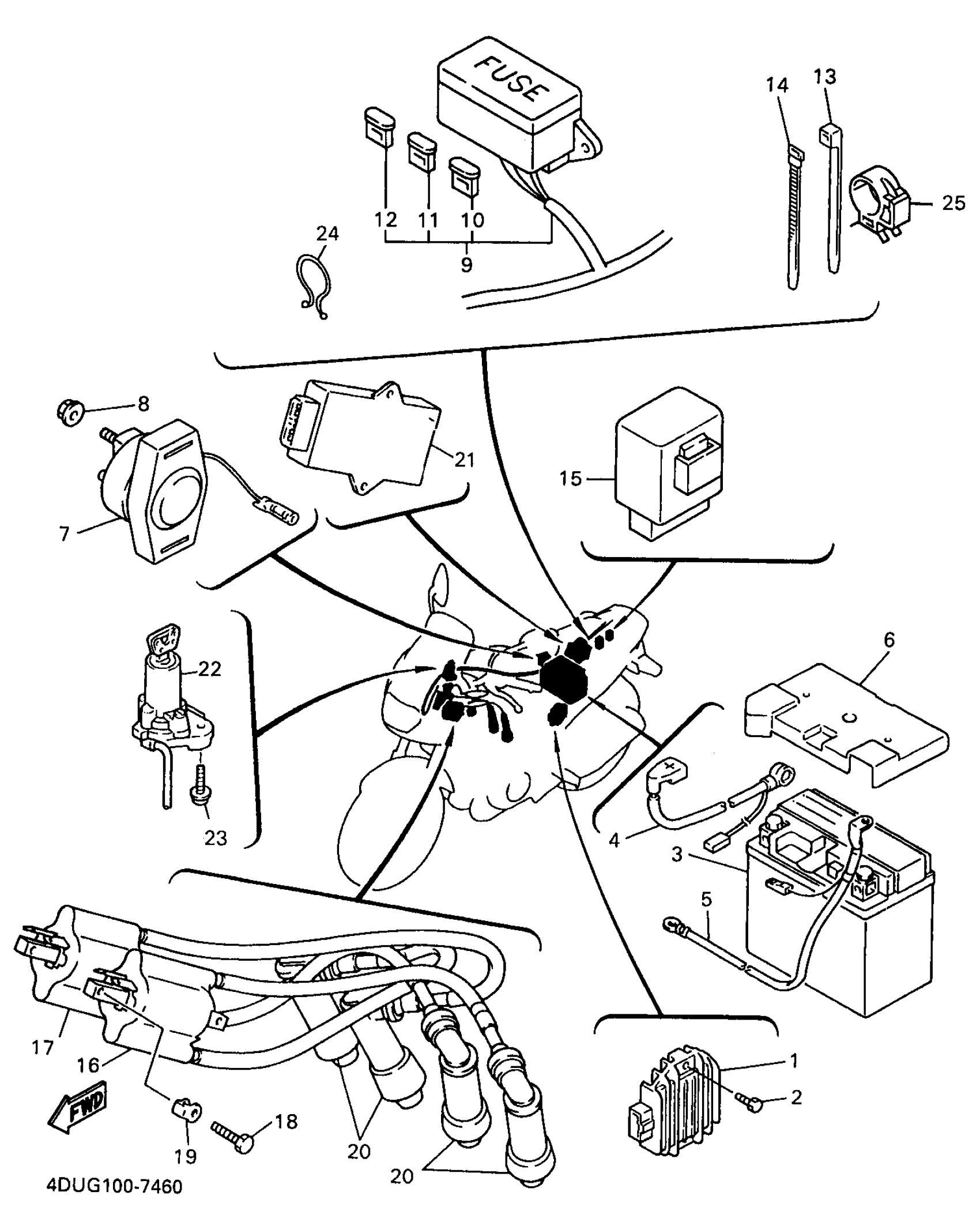

Yamaha XJ600SJC (SECA II CA) 4DUH 1997 ELECTRICAL 1 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

4HM-81960-01-00

Unavailable

2

BOLT,SOCKET

91317-06020-00

Unavailable

3

YTX9BS YUASA BATTERY - SA

YTX-9BS00-00-00

Unavailable

4

WIRE, PLUS LEAD

4BP-82115-00-00

Unavailable

5

WIRE,MINUS LEAD

4BP-82116-00-00

Unavailable

6

COVER, BATTERY

4EB-82129-00-00

Unavailable

7

STARTER RELAY ASSY (MS5D-401)

4BP-81940-00-00

Unavailable

8

NUT, FLANGE(4MV)

95707-06500-00

$1.23

9

WIRE HARNESS ASSEMBLY

4DU-82590-20-00

Unavailable

10

FUSE (12V 30A)

1AE-82151-00-00

$7.99

11

FUSE (12V 15A)

36Y-82151-00-00

$4.94

12

FUSE (10A)

42X-82151-00-00

$4.32

13

BAND

1UA-82591-00-00

$4.78

14

BAND

80L-26397-00-00

$7.99

15

RELAY ASSEMBLY

4EP-81950-00-00

Unavailable

16

IGNITION COIL ASSY

4BR-82310-06-00

Unavailable

17

IGNITION COIL ASSY

4BR-82320-06-00

Unavailable

18

BOLT(7U8)

97080-06020-00

Unavailable

19

DAMPER, IGNITION COIL

4BR-82317-00-00

Unavailable

20

PLUG CAP ASSY

4BP-82370-01-00

Unavailable

21

IGNITOR UNIT ASSEMBLY

4DU-82305-00-00

Unavailable

22

MAIN SWITCH STEERING LOCK

4NA-82501-02-00

Unavailable

23

BOLT

90109-08196-00

Unavailable

24

CLAMP

90464-25267-00

Unavailable

25

CLAMP(4GY)

90464-20191-00

Unavailable
