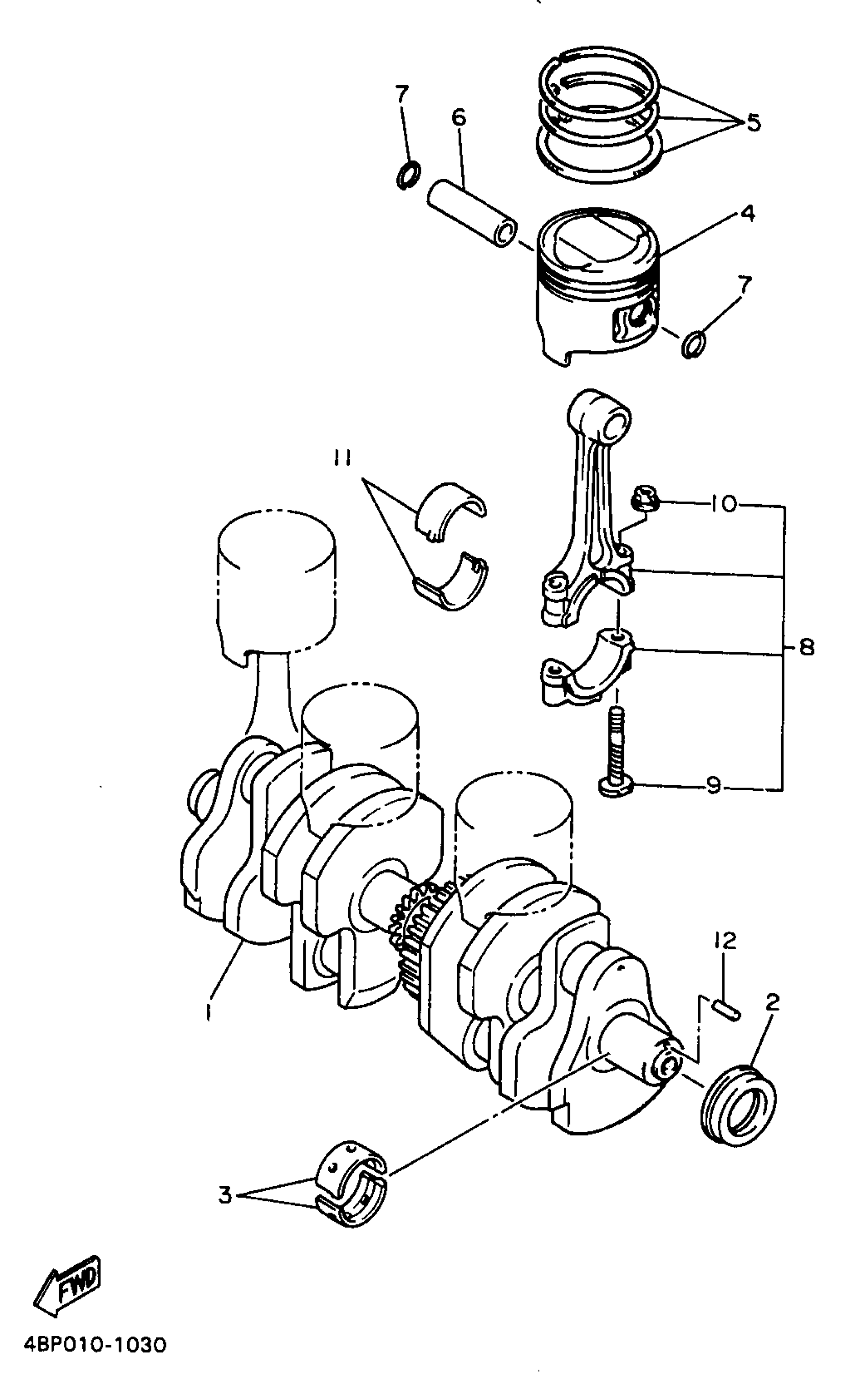

Yamaha XJ600SJC (SECA II CA) 4DUH 1997 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

4BR-11411-00-00

Unavailable

2

OIL SEAL (32X45X6.5-2H7)

93101-32144-00

$24.99

3

PLANE BEARING, CRANKSHAFT 1

4BR-11416-00-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

4BR-11416-10-00

$5.49

3

PLANE BEARING, CRANKSHAFT 1

4BR-11416-20-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

4BR-11416-30-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

4BR-11416-40-00

Unavailable

4

PISTON (STD)

4BR-11631-00-A0

Unavailable

4

PISTON (0.50MM O/S)

4BR-11636-00-00

Unavailable

4

PISTON (1.00MM O/S)

4BR-11638-00-00

Unavailable

5

PISTON RING SET (STD)

4BR-11610-00-00

$79.99

5

PISTON RING SET (0.50MM O/S)

4BR-11610-20-00

$58.99

5

PISTON RING SET (1.00MM O/S)

4BR-11610-40-00

Unavailable

6

PIN, PISTON

49A-11633-00-00

Unavailable

7

CIRCLIP (4G0)

93450-16068-00

$7.49

8

CONNECTING ROD ASSEMBLY

4BR-11650-00-00

Unavailable

9

BOLT, CONNECTING ROD

4H7-11654-00-00

Unavailable

10

NUT (4H7)

90179-07307-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

49A-11656-00-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

49A-11656-10-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

49A-11656-20-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

49A-11656-30-00

Unavailable

12

PIN,DOWEL (603)

93604-10011-00

Unavailable
