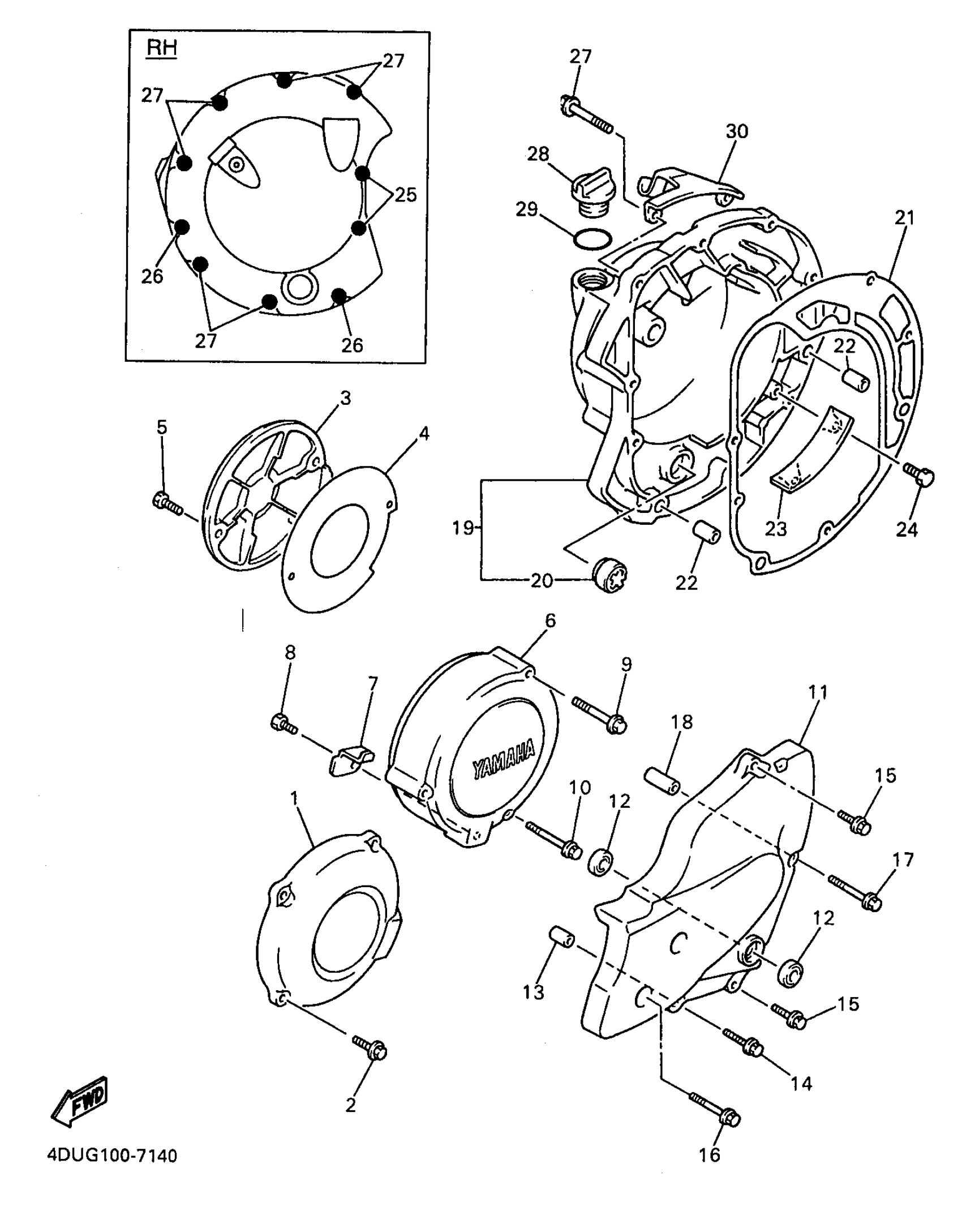

Yamaha XJ600SJC (SECA II CA) 4DUH 1997 CRANKCASE COVER 1 Diagram

#

Description
Price

1

CRANKCASE COVER ASSEMBLY 1

4BR-15410-00-00

Unavailable

2

BOLT, WASHER BASED(4EB)

90105-06790-00

$2.39

3

CRANKCASE COVER ASSEMBLY 2

4BR-15420-10-00

Unavailable

4

GASKET, CARBURETOR COVER 2

4BR-15463-00-00

Unavailable

5

BOLT, BUTTON HEAD

92017-06014-00

$4.29

6

COVER, GENERATOR

4DU-15415-00-00

Unavailable

7

CLAMP 2

4BR-15484-00-00

Unavailable

8

BOLT,SOCKET

91317-06010-00

$9.49

9

BOLT, SMALL FLANGE

95027-06065-00

$3.28

10

BOLT, SMALL FLANGE

95027-06065-00

$3.28

11

COVER,CRANKCASE L

4DU-15411-01-00

Unavailable

12

OIL SEAL

93109-12075-00

$10.49

13

PIN, DOWEL(3VD)

99530-10114-00

$2.55

14

BOLT, SMALL FLANGE

95027-06035-00

$2.22

15

BOLT, SMALL FLANGE

95027-06030-00

$3.98

16

BOLT, SMALL FLANGE

95027-06055-00

Unavailable

17

BOLT, SMALL FLANGE

95027-06065-00

$3.28

18

COLLAR(4BR)

90387-064Y1-00

Unavailable

19

CRANKCASE COVER ASSEMBLY 2

4DU-W1543-00-00

Unavailable

20

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

21

GASKET, CRANKCASE COVER 2

4BR-15461-00-00

Unavailable

22

PIN, DOWEL(3VD)

99530-10114-00

$2.55

23

PLATE, OIL GUIDE

49A-15412-00-00

Unavailable

24

BOLT, HEXAGON

97017-06012-00

Unavailable

25

BOLT, SMALL FLANGE

95027-06070-00

Unavailable

26

BOLT, SMALL FLANGE

95027-06040-00

Unavailable

27

BOLT, SMALL FLANGE

95027-06030-00

$3.98

28

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

29

O-RING(1KT)

93210-27778-00

Unavailable

30

HOLDER, CLUTCH CABLE

4BR-15441-00-00

Unavailable
