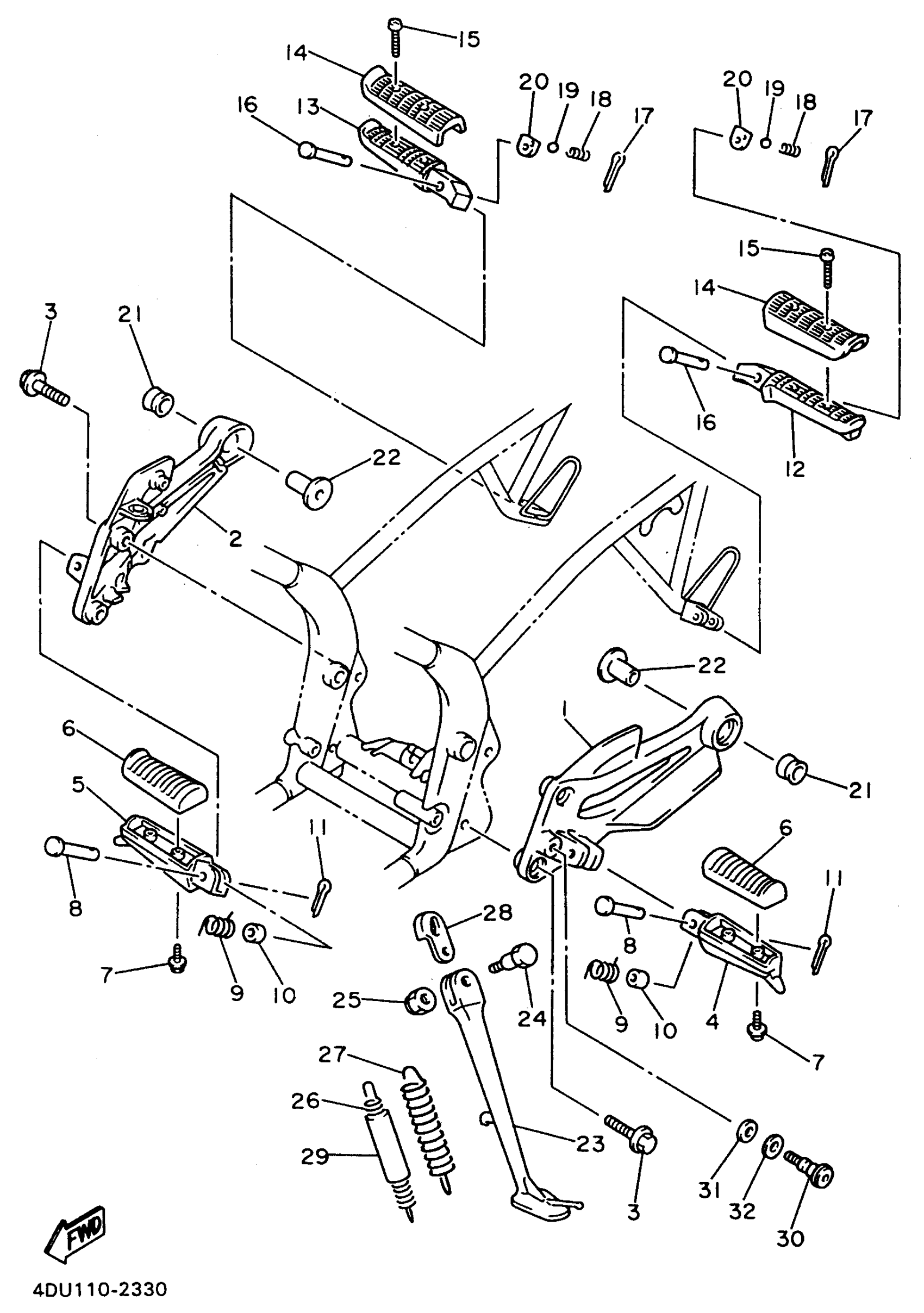

Yamaha XJ600SHC (SECA II CA) 4DUE 1996 STAND FOOTREST Diagram

#

Description
Price

1

BRACKET 2

4BR-27442-10-00

Unavailable

2

BRACKET 3

4BR-27443-10-00

Unavailable

3

BOLT(47X)

90109-082A1-00

$3.55

4

FOOTREST

4BP-27451-01-00

Unavailable

5

FOOTREST

4BP-27461-01-00

Unavailable

6

COVER, FOOTREST

4BP-27413-00-00

$30.99

7

SCREW, PAN HEAD

98507-05014-00

$8.49

8

PIN, CLEVIS(4BR)

90240-08140-00

Unavailable

9

SPRING, TORSION (22N)

90508-20572-00

$8.49

10

COLLAR(1RW)

90387-0801M-00

$9.49

11

PIN, COTTER

91490-25020-00

$3.19

12

FOOTREST, REAR 1

4BR-27431-01-00

Unavailable

13

FOOTREST, REAR 2

4BR-27441-00-00

$25.99

14

COVER, FOOTREST

2GH-27413-00-00

$45.99

15

SCREW, PAN HEAD

98507-05014-00

$8.49

16

PIN, CLEVIS(4BR)

90240-08141-00

Unavailable

17

PIN, COTTER

91490-25020-00

$3.19

18

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

19

BALL

93501-04011-00

Unavailable

20

WASHER, SPECIAL

4BP-27437-00-00

Unavailable

21

DAMPER, MUFFLER BRACKET

2H7-27414-00-00

Unavailable

22

COLLAR (2H7)

90387-10636-00

Unavailable

23

STAND,SIDE

4BP-27311-00-00

Unavailable

24

BOLT(2GH)

90109-104E6-00

Unavailable

25

NUT, U

90185-10037-00

Unavailable

26

SPRING, TENSION (4K0)

90506-18224-00

Unavailable

27

SPRING, TENSION (4K0)

90506-26225-00

Unavailable

28

LINK, SIDE STAND

3VD-27315-00-00

Unavailable

29

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

30

BOLT

4BP-27434-11-00

Unavailable

31

WASHER (853)

90201-08326-00

Unavailable

32

WASHER, PLATE(55K)

90201-127J6-00

Unavailable
