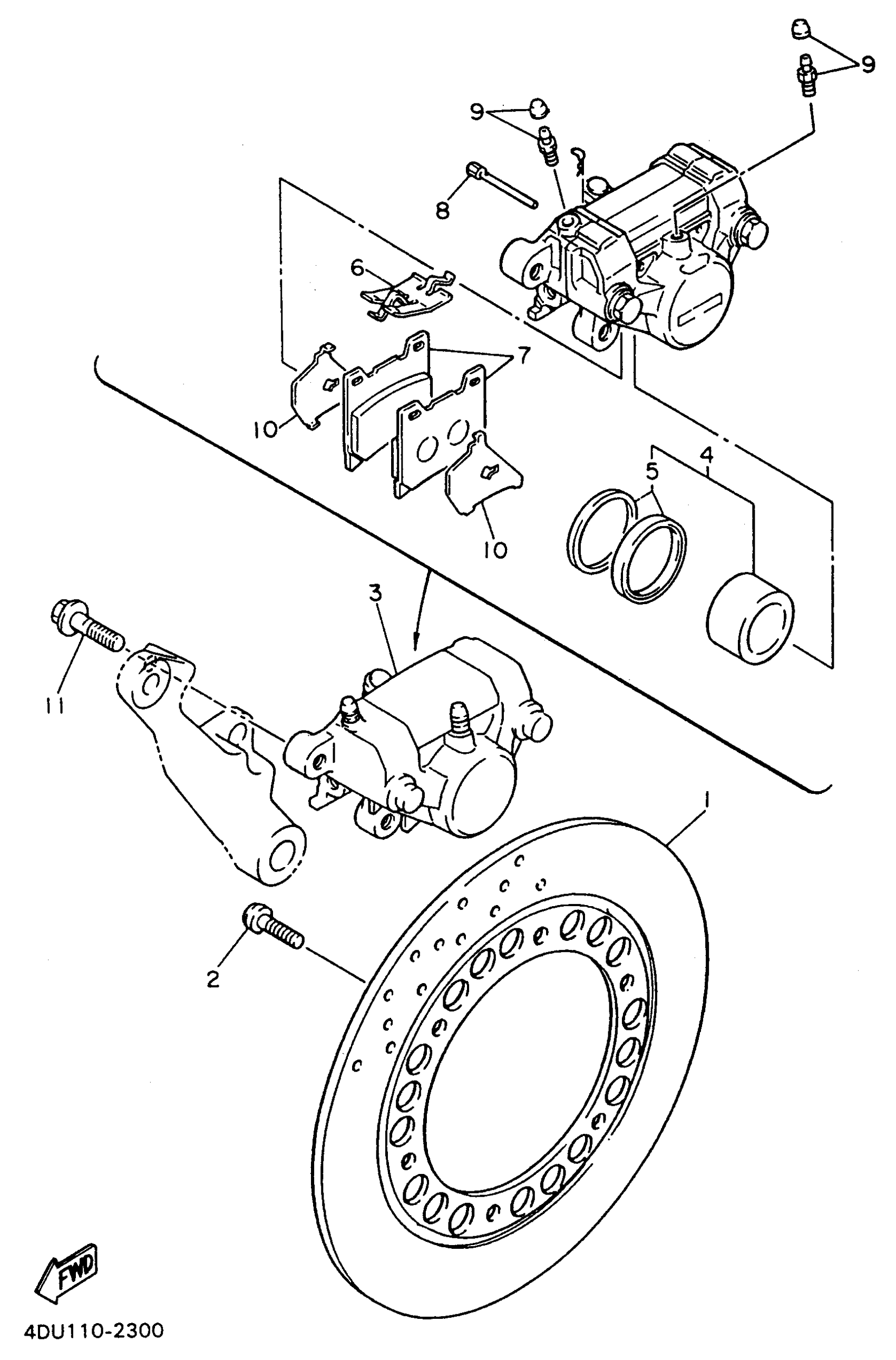

Yamaha XJ600SHC (SECA II CA) 4DUE 1996 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

4HM-2582W-00-00

Unavailable

BOLT

90109-084F7-00

$9.49

CALIPER ASSEMBLY, REAR 2

4BP-2580W-00-00

Unavailable

PISTON ASSY, CALIPER

51L-W0057-00-00

$138.99

CALIPER SEAL KIT

51L-W0047-11-00

Unavailable

. SUPPORT, PAD

3LN-25919-10-00

Unavailable

BRAKE PAD KIT 2

4AP-W0046-00-00

$46.99

PIN, PAD

4FL-25924-00-00

$22.99

BLEED SCREW KIT

15B-W0048-00-00

$19.99

SHIM, CALIPER

4BP-25827-00-00

Unavailable

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49
