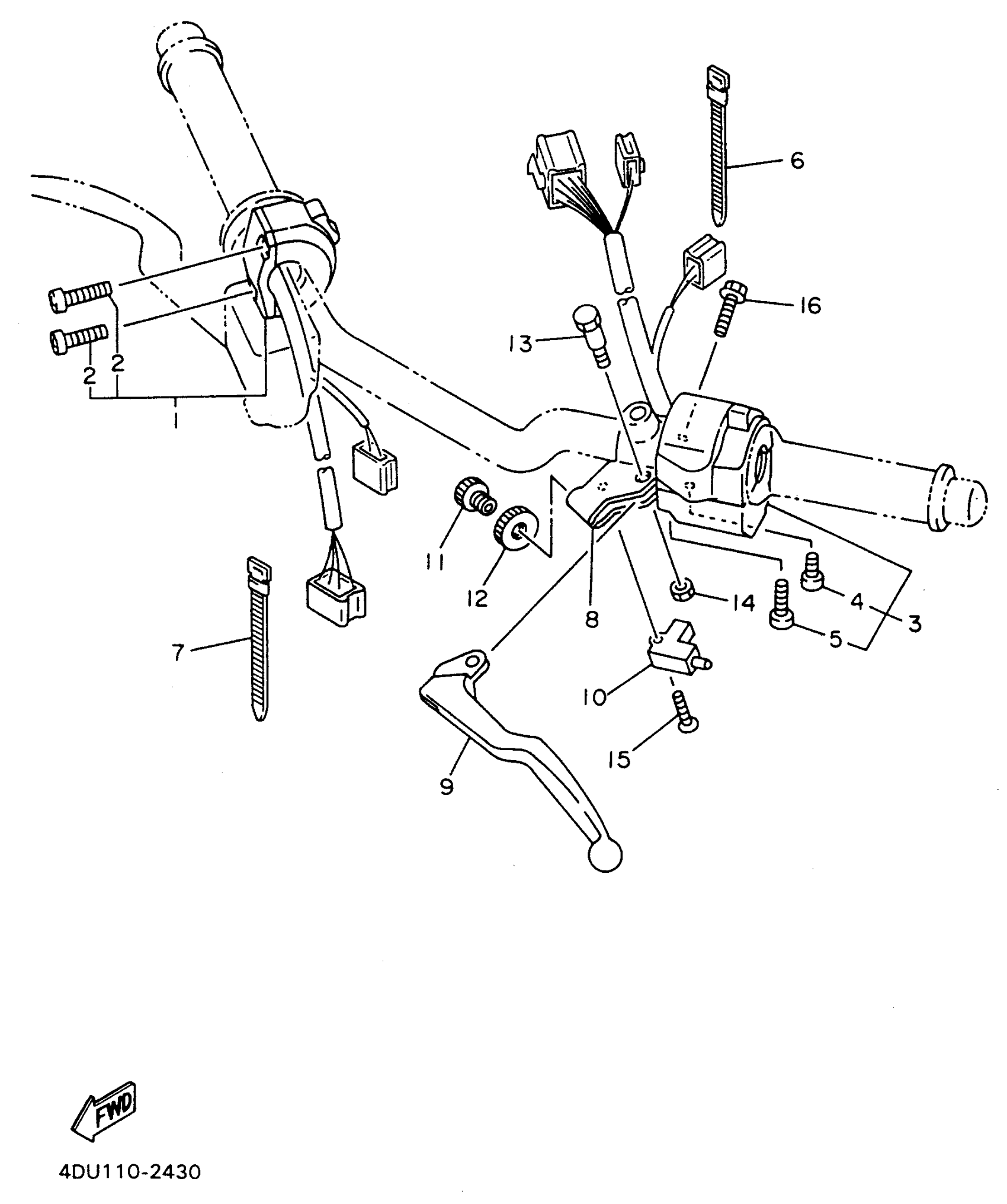

Yamaha XJ600SHC (SECA II CA) 4DUE 1996 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH,HANDLE 2

4FE-83975-00-00

Unavailable

2

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

3

SWITCH, HANDLE 3

4AH-83973-00-00

Unavailable

4

SCREW, PAN HEAD

98517-05030-00

$10.49

5

SCREW, PAN

98507-05040-00

$8.49

6

BAND

80L-26397-00-00

$7.99

7

BAND

1UA-82591-00-00

$4.78

8

HOLDER, LEVER 1

3YX-82911-01-00

Unavailable

9

LEVER 1

3YX-83912-00-00

$30.99

10

SWITCH

3YX-82917-01-00

$43.99

11

BOLT (27M)

90123-08096-00

$2.02

12

NUT

90179-08030-00

$5.49

13

BOLT, LEVER

3YX-83945-00-00

Unavailable

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

SCREW, FLAT HEAD(4BP)

98707-03020-00

$8.49

16

. BOLT, FLANGE

95027-06020-00

Unavailable
