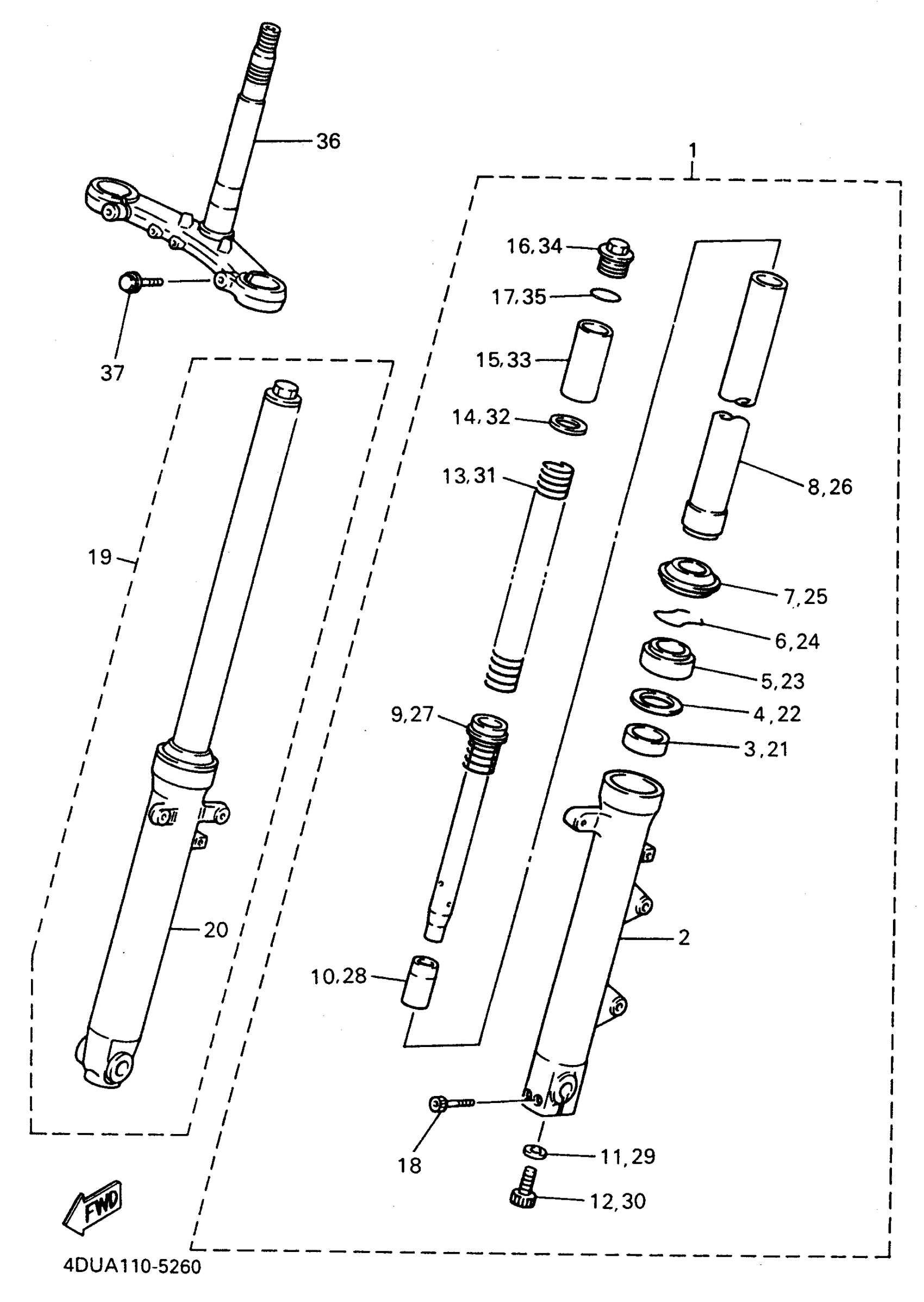

Yamaha XJ600SHC (SECA II CA) 4DUE 1996 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (L
4BR-23102-03-00
Unavailable
2
. TUBE, OUTER (LEFT)
4BP-23126-00-00
Unavailable
8
INNER TUBE COMP.1
3YX-23110-01-00
Unavailable
9
. CYLINDER COMP, FRONT FORK
4BR-23170-00-00
Unavailable
10
SPINDLE, TAPER
2YK-23173-00-00
Unavailable
13
. SPRING, FRONT FORK
4BP-23141-00-00
Unavailable
14
. WASHER, SPRING UPPER
4DN-23149-40-00
Unavailable
15
. SPACER
26H-23118-00-00
Unavailable
16
. BOLT, CAP
3EN-23111-00-00
Unavailable
17
O-RING
1W4-23114-L0-00
Unavailable
18
BOLT, SOCKET
91317-08035-00
Unavailable
19
FRONT FORK ASY RH
4BR-23103-03-00
Unavailable
20
. TUBE, OUTER (RIGHT)
4BP-23136-00-00
Unavailable
26
INNER TUBE COMP.1
3YX-23110-01-00
Unavailable
27
. CYLINDER COMP, FRONT FORK
4BR-23170-00-00
Unavailable
28
SPINDLE, TAPER
2YK-23173-00-00
Unavailable
31
. SPRING, FRONT FORK
4BP-23141-00-00
Unavailable
32
. WASHER, SPRING UPPER
4DN-23149-40-00
Unavailable
33
. SPACER
26H-23118-00-00
Unavailable
34
. BOLT, CAP
3EN-23111-00-00
Unavailable
35
O-RING
1W4-23114-L0-00
Unavailable
36
UNDER BRACKET COMP.
4BP-23340-10-00
Unavailable
37
BOLT 2
2NX-23356-00-00
Unavailable
