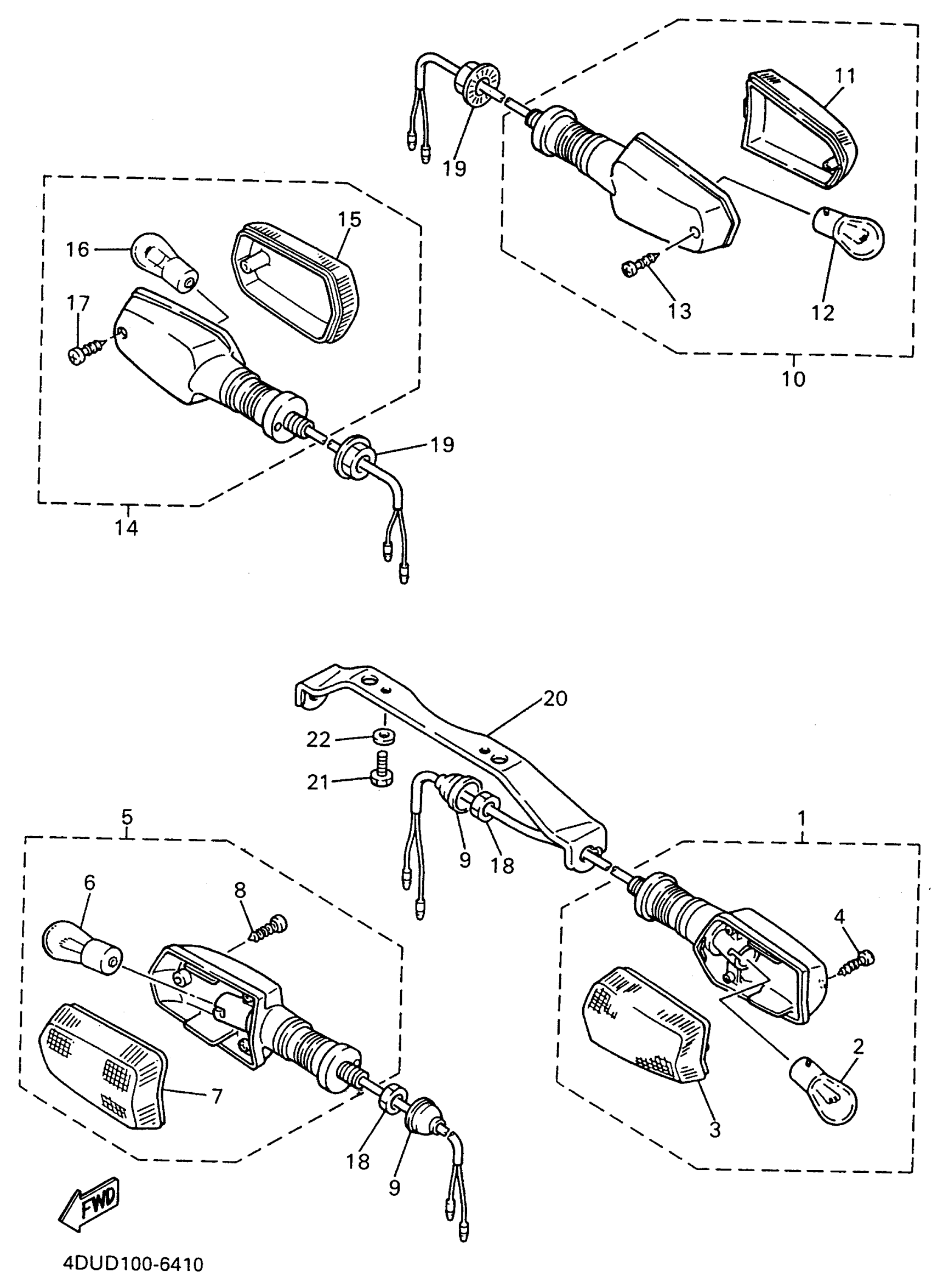

Yamaha XJ600SHC (SECA II CA) 4DUE 1996 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSEMBLY 1

1LJ-83310-20-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

LENS, FLASHER

51L-83332-01-00

Unavailable

4

SCREW, PAN TAP.2

97707-40520-00

$9.49

5

FRONT FLASHER LIGHT ASSEMBLY 2

1LJ-83320-20-00

Unavailable

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

7

LENS, FLASHER 2

51L-83342-01-00

$11.99

8

SCREW, PAN TAP.2

97707-40520-00

$9.49

9

CAP

10V-83365-01-00

$3.33

10

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

11

LENS, FLASHER 2

51L-83342-01-00

$11.99

12

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

13

SCREW, PAN TAP.2

97707-40520-00

$9.49

14

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

$134.99

15

LENS, FLASHER

51L-83332-01-00

Unavailable

16

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

17

SCREW, PAN TAP.2

97707-40520-00

$9.49

18

NUT, HEXAGON

95337-12600-00

Unavailable

19

NUT(3GG)

90179-12588-00

Unavailable

20

STAY, FLASHER 1

4BR-83318-00-00

Unavailable

21

BOLT, HEXAGON

97017-06016-00

Unavailable

22

WASHER(6TA)

92907-06600-00

Unavailable
