Description

Price

1

STOP SWITCH ASSEMBLY

4BP-82530-01-00

Unavailable

2

SWITCH, SIDE STAND

3LD-82566-71-00

$49.99

3

SCREW, PAN HEAD

98507-05014-00

$8.49

4

HORN

2KG-83371-00-00

Unavailable

5

BOLT, FLANGE

95817-06010-00

$4.73

6

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

6

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

7

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

8

WIRE, SUB LEAD

4HM-82509-01-00

Unavailable

9

O-RING (371)

93210-29196-00

$8.49

10

SCREW, FLAT

98707-05012-00

$1.71

11

OIL LEVEL GAUGE ASSEMBLY

4BR-85720-00-00

Unavailable

12

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

13

REAR REFLECTOR ASSY

4KM-85130-00-00

$22.99

14

NUT, FLANGE(3GM)

95707-05500-00

$8.49

15

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

16

NUT, FLANGE(3GM)

95707-05500-00

$8.49

17

REAR REFLECTOR ASSY

4KM-85130-00-00

$22.99

18

NUT, FLANGE(3GM)

95707-05500-00

$8.49

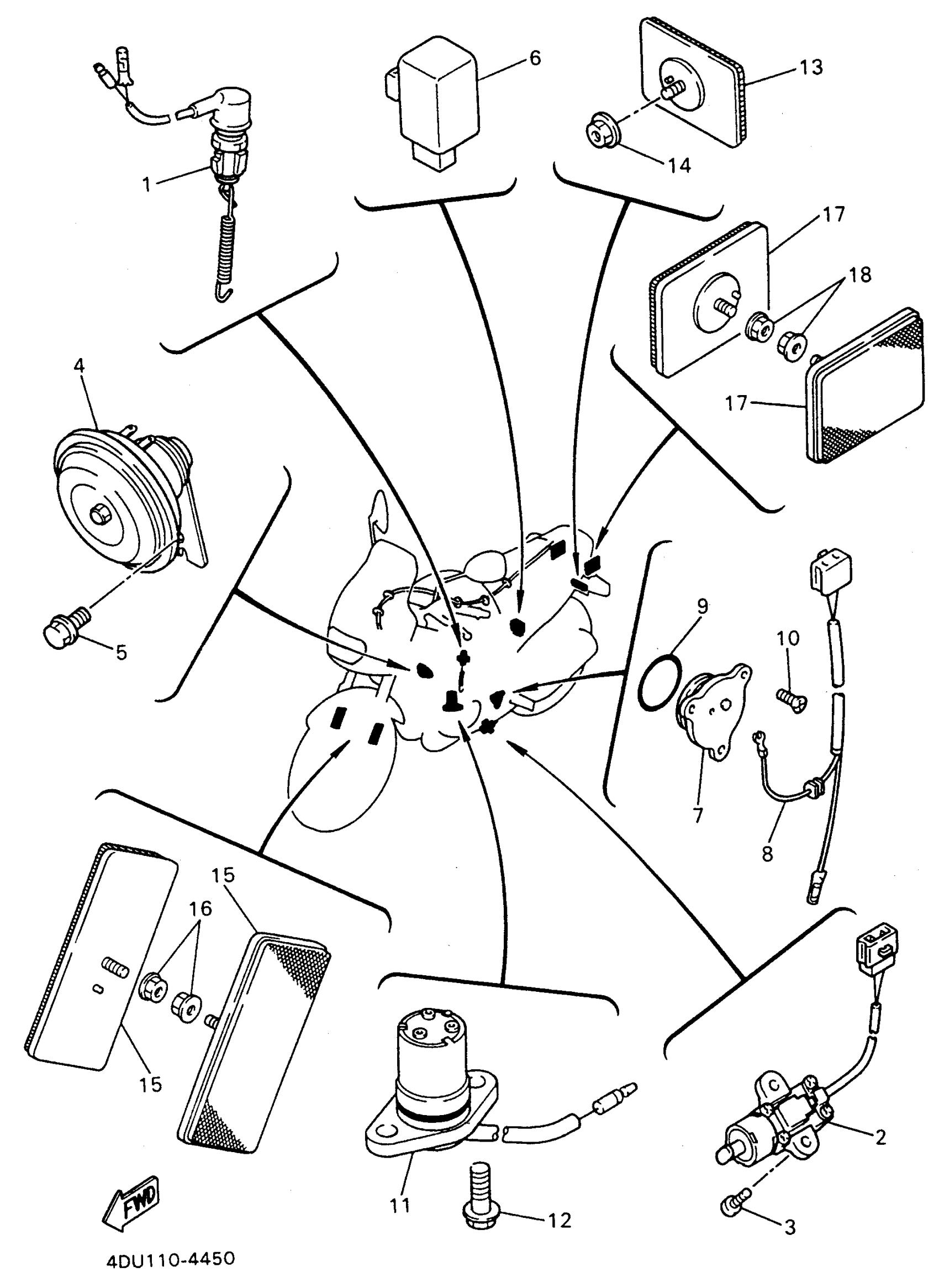

Yamaha XJ600SHC (SECA II CA) 4DUE 1996 ELECTRICAL 2 Diagram

STOP SWITCH ASSEMBLY

SWITCH, SIDE STAND

SCREW, PAN HEAD

HORN

BOLT, FLANGE

FLASHER RELAY ASSY

FLASHER RELAY ASSY

NEUTRAL SWITCH ASSY

WIRE, SUB LEAD

O-RING (371)

SCREW, FLAT

OIL LEVEL GAUGE ASSEMBLY

BOLT, WASHER BASED(JA9)

REAR REFLECTOR ASSY

NUT, FLANGE(3GM)

FRONT REFLECTOR ASSY

NUT, FLANGE(3GM)

REAR REFLECTOR ASSY

NUT, FLANGE(3GM)
