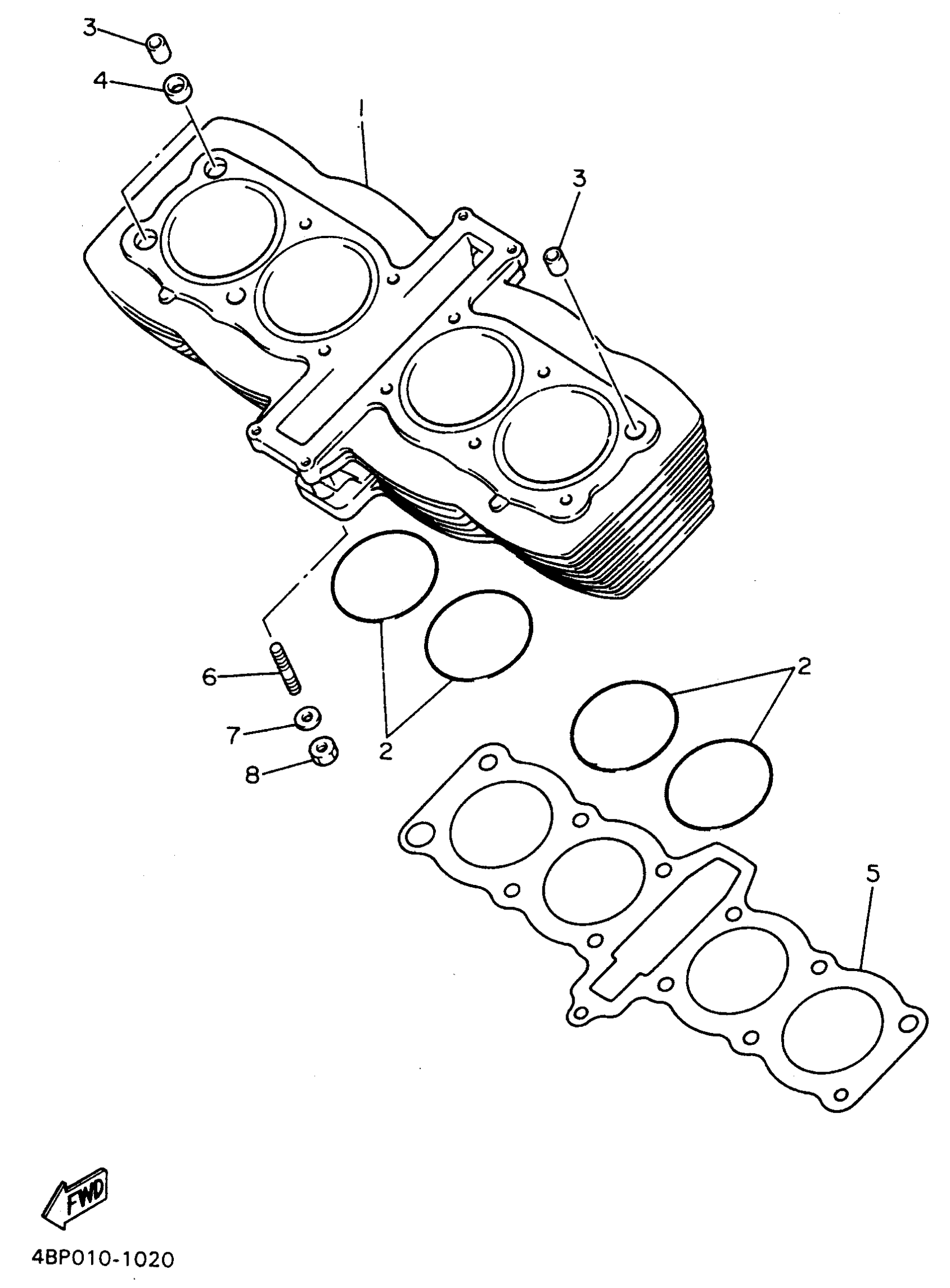

Yamaha XJ600SHC (SECA II CA) 4DUE 1996 CYLINDER Diagram

#

Description

Price

1

CYLINDER

4DU-11310-00-00

Unavailable

2

O-RING (4U8)

93210-63442-00

$5.78

3

PIN, DOWEL

99530-14016-00

$3.07

4

GASKET (1L9)

90430-14131-00

$5.32

5

GASKET, CYLINDER

4BR-11351-01-00

Unavailable

6

BOLT, STUD 2

95617-08330-00

$9.23

7

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

8

NUT(6TA)

95337-08600-00

$6.17
