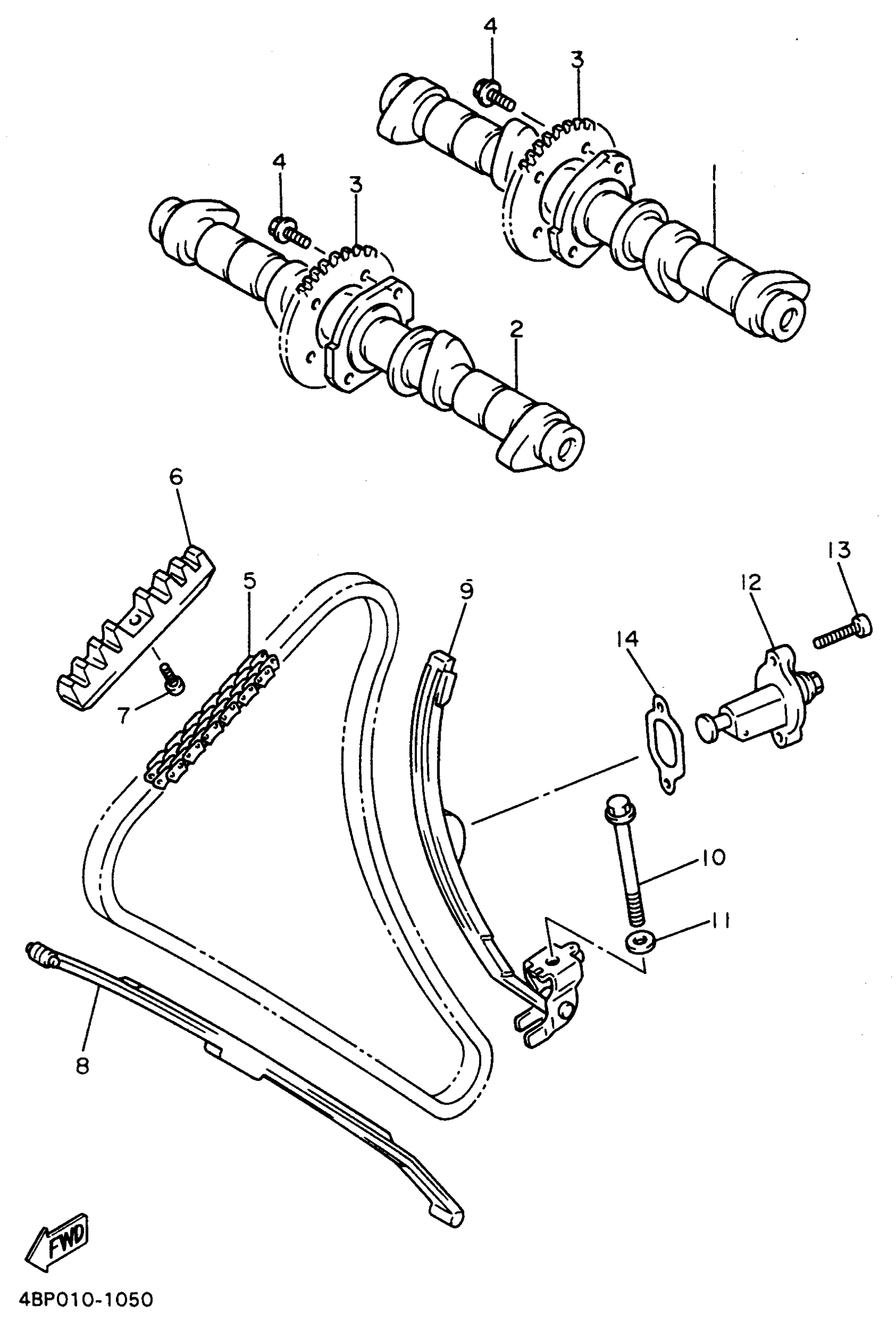

Yamaha XJ600SHC (SECA II CA) 4DUE 1996 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

4BR-12171-00-00

Unavailable

2

CAMSHAFT 2

4BR-12181-00-00

Unavailable

3

SPROCKET, CAM CHAIN

4BR-12176-00-00

Unavailable

4

BOLT, FLANGE

90105-07004-00

$5.00

5

CHAIN (4BP)

94890-04144-00

Unavailable

6

GUIDE,STOPPER 2

4BP-12241-00-00

Unavailable

7

SCREW, BINDING

98907-06010-00

$1.49

8

DAMPER,CHAIN 1

4BP-12251-00-00

Unavailable

9

DAMPER,CHAIN 2

4BP-12252-00-00

Unavailable

10

BOLT, FLANGE

95817-08075-00

$3.37

11

WASHER, PLATE

90201-080L8-00

$2.80

12

TENSIONER ASSY, CAM CHAIN

4BR-12210-00-00

Unavailable

13

BOLT,SOCKET

91317-06025-00

$2.05

14

GASKET, TENSIONER CASE

4BR-12213-00-00

$6.55
