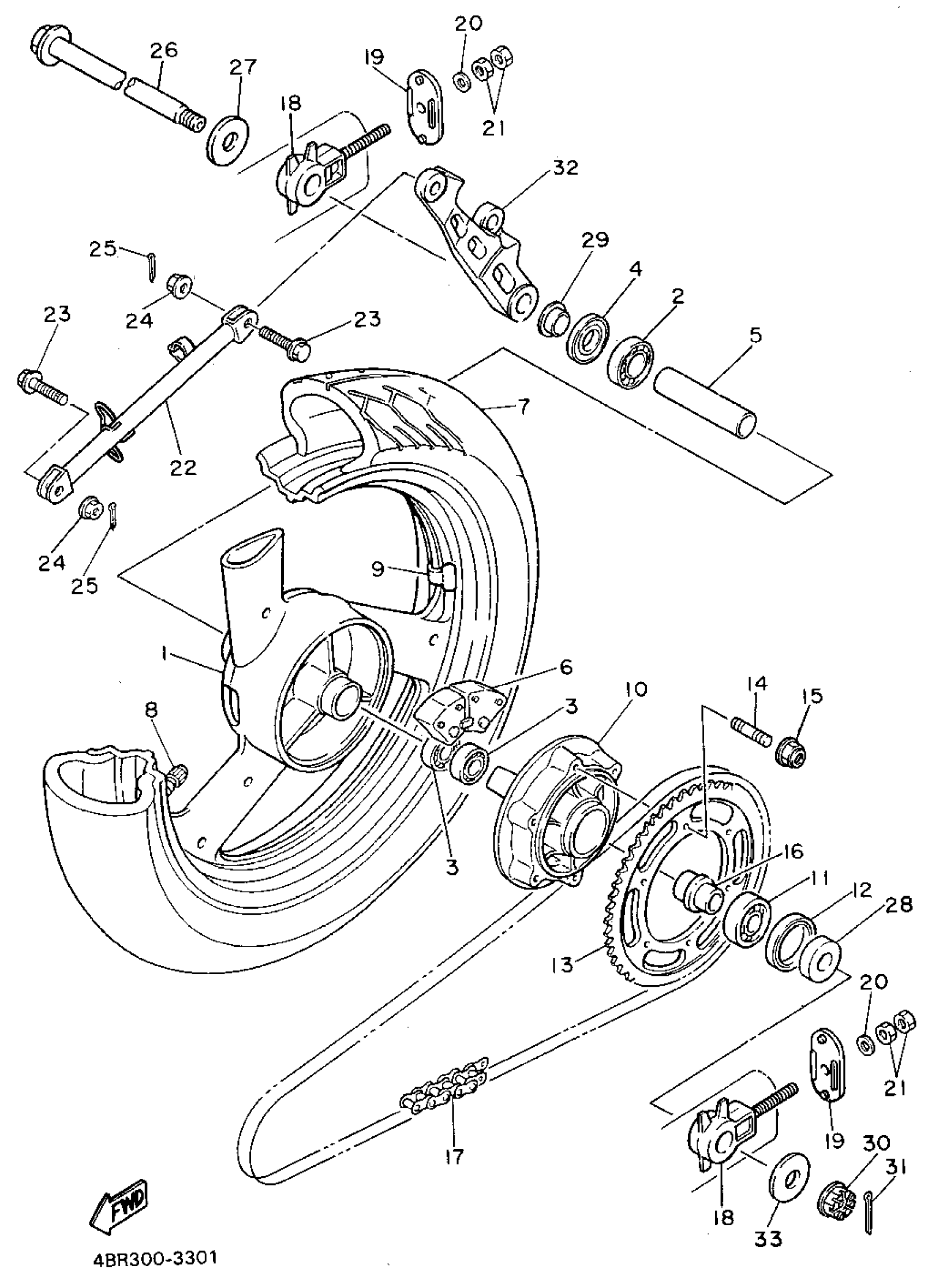

Yamaha XJ600SGC (SECA II CA) 1995 REAR WHEEL Diagram

#

Description
Price

1

WHEEL,CAST REAR

3HE-25338-00-33

Unavailable

1

CAST WHEEL, REAR

3HE-25338-00-P1

Unavailable

2

BEARING(4HM)

93306-30317-00

$39.99

3

BEARING (10H)

93306-20314-00

$32.99

4

OIL SEAL (25X47X7-801)

93102-25044-00

$14.99

5

COLLAR

90387-174V8-00

Unavailable

6

DAMPER

4BP-25364-00-00

$39.99

7

TIRE (130/70-18 63H K275)

94113-183Y0-00

Unavailable

7

TIRE (130/70-18 63H R209)

94113-183Y2-00

Unavailable

8

VALVE, RIM(2GH)

93900-00030-00

$16.99

9

BALANCER, WHEEL

5MT-25398-00-00

$17.49

9

BALANCER, WHEEL

5MT-25398-10-00

$17.49

9

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

10

CLUTCH, HUB

4BP-25366-00-00

Unavailable

11

BEARING(N01)

93306-37207-00

$49.99

12

OIL SEAL(47X)

93105-42024-00

Unavailable

13

SPROCKET, DRIVEN

4BP-25448-21-00

Unavailable

14

BOLT, STUD(1TX)

90116-10485-00

Unavailable

15

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

16

COLLAR(47X)

90387-177K0-00

Unavailable

17

CHAIN(4BR)

94581-30110-00

Unavailable

18

PULLER, CHAIN 1

4BP-25388-00-00

Unavailable

19

END 1

3YX-22174-00-00

Unavailable

20

WASHER(6TA)

92907-08600-00

Unavailable

21

NUT(6TA)

95337-08600-00

Unavailable

22

BAR,TENSION

4BR-25371-01-00

Unavailable

23

BOLT, WASHER BASED(47X)

90105-08321-00

Unavailable

24

NUT, FLANGE(JN5)

95707-08500-00

Unavailable

25

PIN, COTTER

91490-20025-00

Unavailable

26

AXLE, WHEEL

3HE-25381-01-00

Unavailable

27

WASHER, PLATE(3HE)

90201-170T3-00

Unavailable

28

COLLAR

90387-177Y5-00

Unavailable

29

COLLAR (3HE)

90387-177Y4-00

Unavailable

30

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

31

PIN, COTTER

91490-30030-00

Unavailable

32

BRACKET, CALIPER

3HE-25819-01-00

Unavailable

33

WASHER, PLATE(3LD)

90201-160T2-00

Unavailable
