1995 Yamaha Seca Ii CA (XJ600SGC) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1995 Yamaha Seca Ii CA (XJ600SGC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

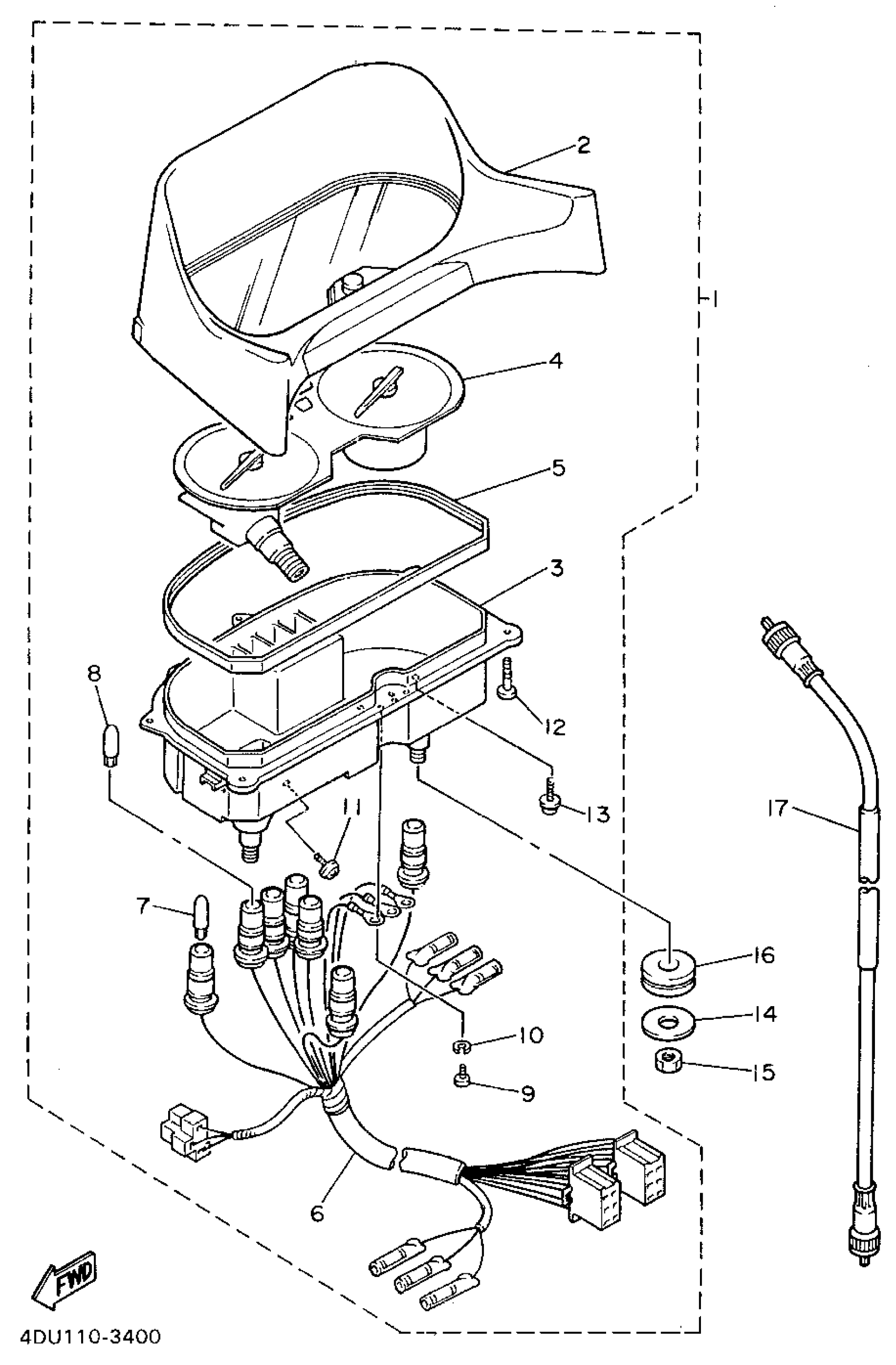

1995 Yamaha Seca Ii CA (XJ600SGC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASY

4DU-83500-01-00

1
Out of stock

2

. METER CASE COMP, UPPER

4BP-W835E-00-00

1
Out of stock

3

METER CASE COMP U

4HK-W835F-00-00

1
Out of stock

4

. SPEEDOMETER ASSEMBLY

4DU-83570-01-00

1
Out of stock

5

. GASKET, UPPER

4BP-8353J-00-00

1
Out of stock

6

SOCKET CORD ASY

4DU-83509-01-00

1
Out of stock

7

BULB (12V-1.7W)

3GM-83517-00-00

1
Out of stock

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

9

SCREW, PAN HEAD(3HH)

98507-03010-00

1
Out of stock

10

WASHER, SPRING

92990-03100-00

1
Out of stock

11

SCREW,PAN HEAD W/WASHER

99999-04427-00

1
Out of stock

12

SCREW, TAPPING

90164-04005-00

1
Out of stock

13

SCREW, TAPPING (15A)

90164-04008-00

1
Out of stock

14

WASHER, PLATE

90201-06380-00

1
Out of stock

15

NUT(6TA)

95317-06600-00

1
Out of stock

16

DAMPER

5J0-83513-00-00

—
Out of stock

17

SPEEDOMETER CABLE ASSY

3GM-83550-02-00

—
Out of stock
