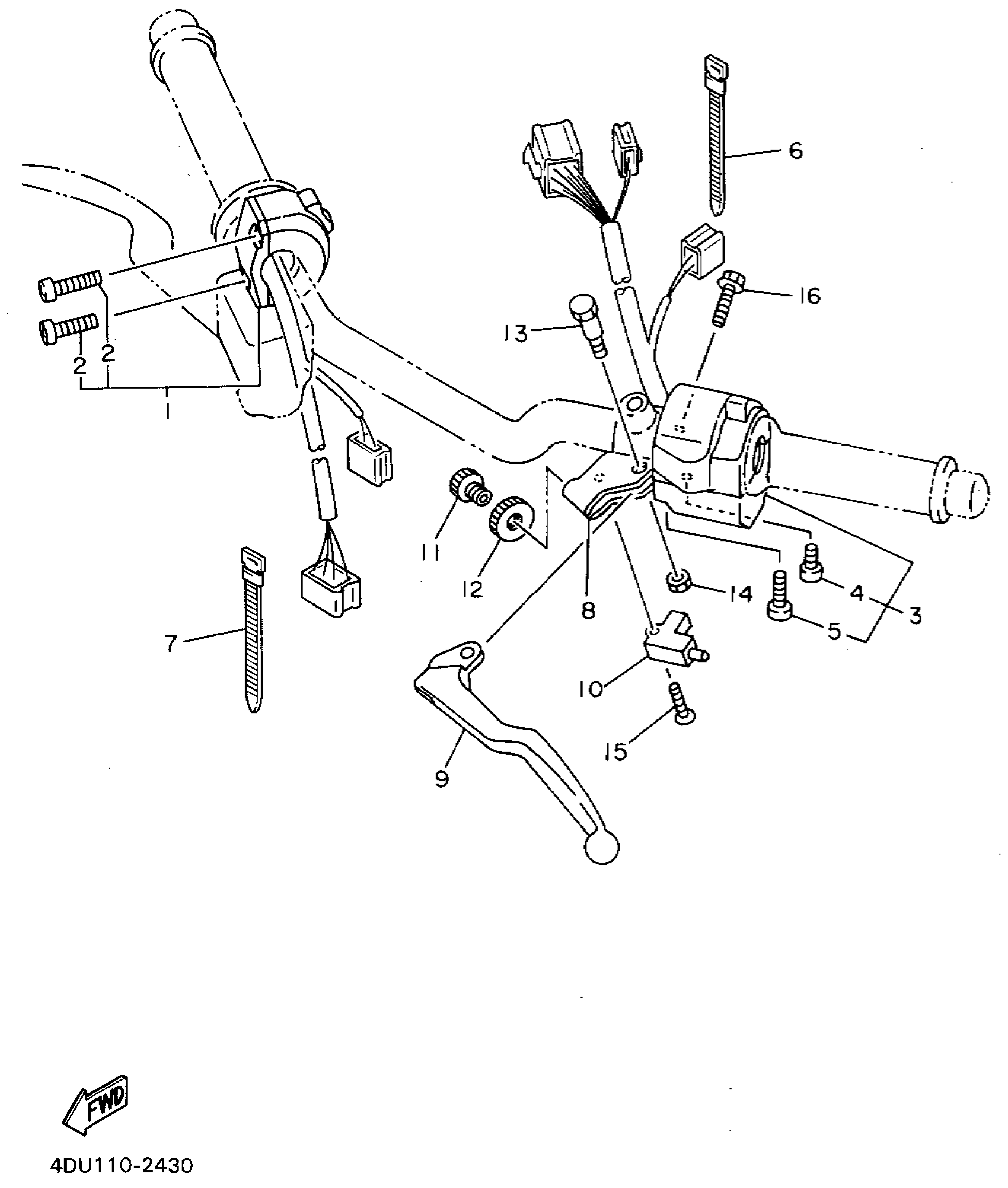

Yamaha XJ600SGC (SECA II CA) 1995 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH,HANDLE 2

4FE-83975-00-00

Unavailable

2

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

3

SWITCH, HANDLE 3

4AH-83973-00-00

Unavailable

4

SCREW, PAN HEAD

98517-05030-00

$7.40

5

SCREW, PAN

98507-05040-00

$6.22

6

BAND

80L-26397-00-00

$6.47

7

BAND

1UA-82591-00-00

$3.85

8

HOLDER, LEVER 1

3YX-82911-01-00

Unavailable

9

LEVER 1

3YX-83912-00-00

$21.77

10

SWITCH

3YX-82917-01-00

$37.06

11

BOLT (27M)

90123-08096-00

$2.53

12

NUT

90179-08030-00

$3.63

13

BOLT, LEVER

3YX-83945-00-00

Unavailable

14

NUT, SELF-LOCKING

95617-06100-00

$2.17

15

SCREW, FLAT HEAD(4BP)

98707-03020-00

$6.22

16

. BOLT, FLANGE

95027-06020-00

$0.93
