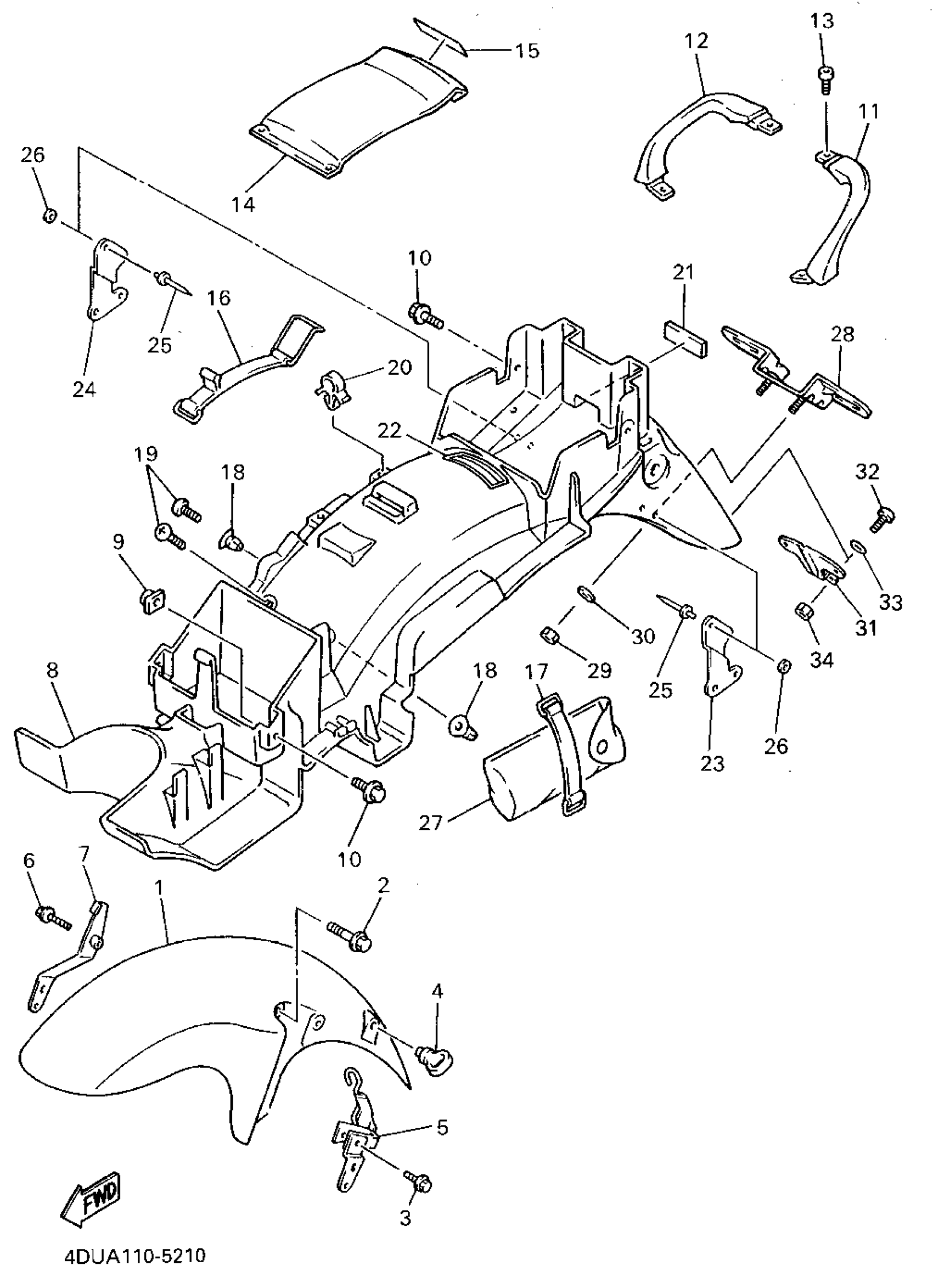

Yamaha XJ600SGC (SECA II CA) 1995 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

4BP-21510-00-PH

Unavailable

1

FRONT FENDER COMP.

4BP-21510-00-P4

Unavailable

2

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

3

BOLT, SMALL FLANGE

95027-06025-00

$4.16

4

GUIDE, WIRE

1A8-21518-00-00

$7.99

5

HOLDER, BRAKE HOSE 1

4DU-25875-00-00

Unavailable

6

BOLT, SMALL FLANGE

95027-06025-00

$4.16

7

HOLDER, WIRE 1

4DU-21597-00-00

Unavailable

8

FNDR, RR

4BP-21611-02-00

Unavailable

9

PLATE

31A-14477-10-00

Unavailable

10

BOLT, WITH WASHER

90119-06242-00

$7.49

11

STAY, REAR

4BP-21644-01-00

Unavailable

12

STAY, REAR

4BP-21645-01-00

Unavailable

13

BOLT(1KT)

90109-060E9-00

$10.49

14

COVER,REAR FENDER

4BP-21651-00-P6

Unavailable

14

COVER, REAR FENDER

4BP-21651-00-P4

Unavailable

15

EMBLEM, YAMAHA

3WF-2153E-61-00

Unavailable

15

EMBLEM, YAMAHA

3WF-2153E-71-00

Unavailable

16

BAND, BATTERY

4BP-82131-00-00

Unavailable

17

BAND,BATTERY

7H3-82131-00-00

Unavailable

18

PLUG(4BP)

90338-08226-00

Unavailable

19

SCREW, TRUSS TAP.

97707-60016-00

Unavailable

20

CLAMP(3XV)

90464-15157-00

Unavailable

21

STRIP, WEATHER 2

8U9-77162-00-00

Unavailable

22

LABEL, CAUTION

3JJ-28446-00-00

Unavailable

23

BRACKET, REAR STAY

3LK-21688-00-00

Unavailable

24

BRACKET, REAR STAY 2

3LK-21689-00-00

Unavailable

25

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

26

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

27

TOOL KIT

1HX-28100-01-00

Unavailable

28

BRACKET,LICENSE

4DU-84751-00-90

Unavailable

29

NUT, SELF-LOCKING

95617-06100-00

Unavailable

30

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

31

BRACKET, REFLECTOR 1

4DU-85132-00-00

Unavailable

32

SCREW(3HE)

90149-04278-00

Unavailable

33

WASHER, PLATE (8M6)

90201-047A2-00

Unavailable

34

NUT, U (7LY)

95617-04100-00

Unavailable
