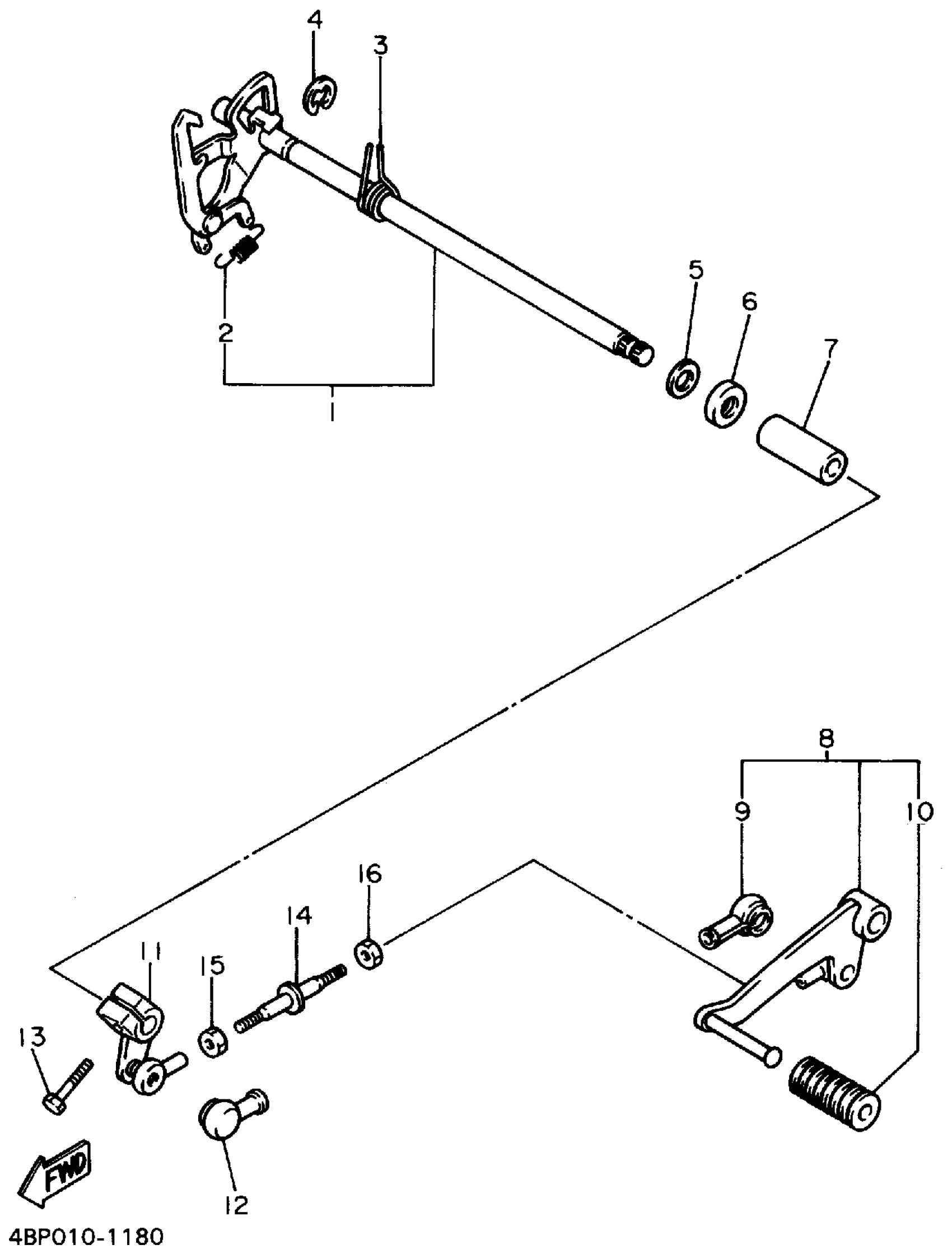

Yamaha XJ600SFC (SECA II CA) 1994 SHIFTER Diagram

#

Description
Price

1

SHIFT LEVER ASSY

4BR-18120-00-00

$66.99

2

SPRING, TENSION (4H7)

90506-08227-00

$4.19

3

SPRING, TORSION

90508-292A0-00

Unavailable

4

CIRCLIP

99006-10600-00

$9.49

5

WASHER, PLATE(55K)

90201-127J6-00

$8.49

6

SEAL, OIL (30X)

93102-12321-00

$12.49

7

SPACER (5F7)

90560-12211-00

$9.49

8

SHIFT PEDAL ASSEMBLY

4BR-18110-00-00

Unavailable

9

COVER, DUST

2H9-18154-00-00

$5.49

10

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

11

ARM, SHIFT

4BR-18112-00-00

Unavailable

12

COVER, DUST

2H9-18154-00-00

$5.49

13

BOLT, HEXAGON

97017-06020-00

$4.06

14

ROD, SHIFT

26H-18115-00-00

$15.49

15

NUT(650)

95380-06700-00

$8.49

16

NUT (2H9)

90170-06228-00

Unavailable
