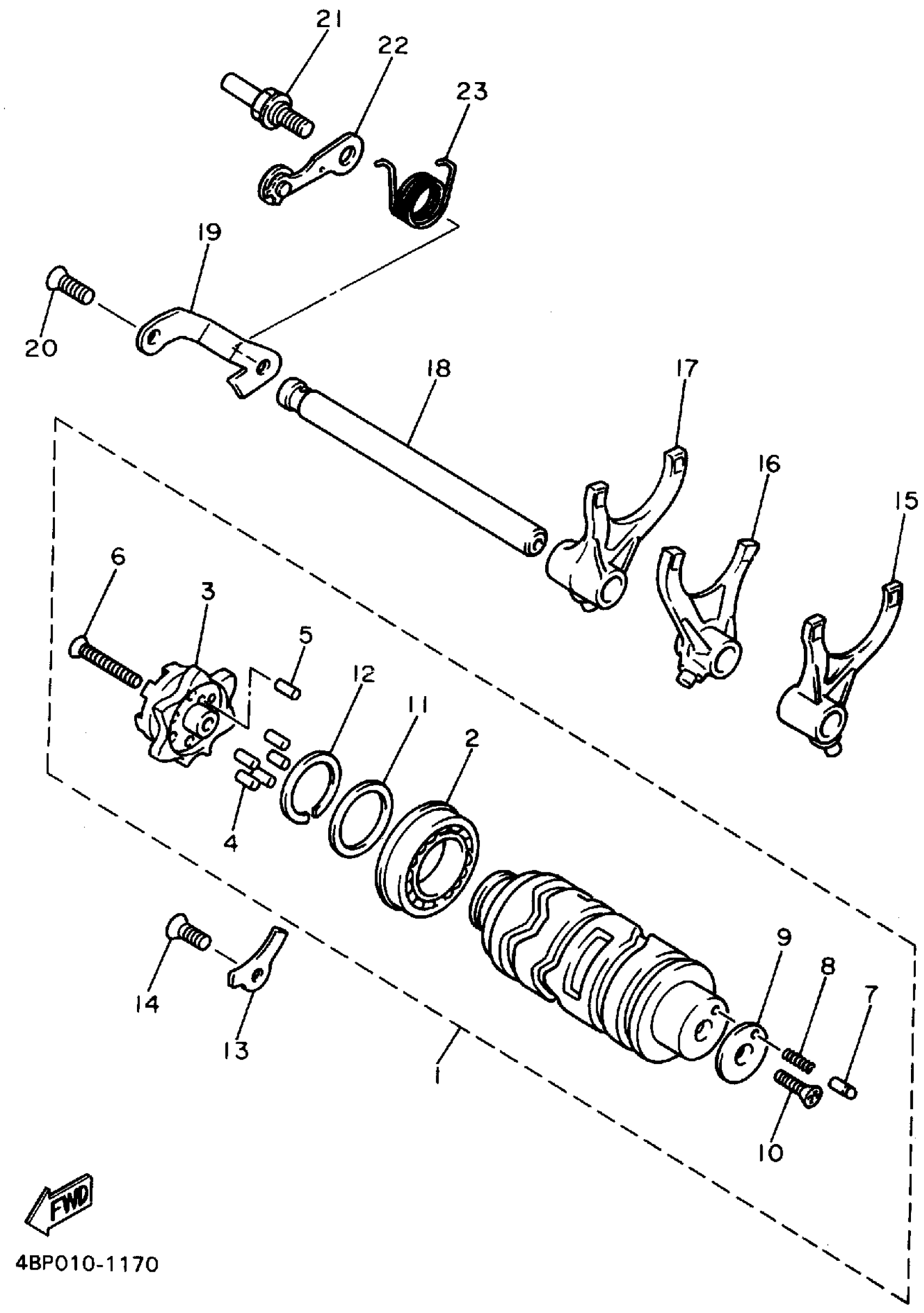

Yamaha XJ600SFC (SECA II CA) 1994 SHIFT CAM SHIFT FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

4BR-18540-03-00

Unavailable

2

BEARING(4BP)

93306-90503-00

Unavailable

3

SEGMENT

4BR-18185-00-00

Unavailable

4

PIN,DOWEL (168)

93604-12037-00

$8.49

5

PIN,DOWEL (603)

93604-10011-00

$8.49

6

SCREW, COUNTERSUNK (5H0)

90151-06013-00

$9.49

7

POINT, NEUTRAL

4UN-18542-00-00

$8.99

8

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

9

PLATE, SIDE 2

278-18566-00-00

Unavailable

10

SCREW, FLAT

98707-05016-00

$7.99

11

WASHER, PLATE(59W)

90201-253K0-00

$8.49

12

CIRCLIP (4L0)

93440-25084-00

$5.60

13

PLATE, BEARING COVER

49A-15383-00-00

Unavailable

14

SCREW, FLAT

98704-06016-00

Unavailable

15

FORK, SHIFT 1

4BR-18511-00-00

Unavailable

16

FORK, SHIFT 2

4BR-18512-00-00

Unavailable

17

FORK, SHIFT 3

4BR-18513-00-00

Unavailable

18

BAR, SHIFT FORK GUIDE 1

4BR-18531-00-00

Unavailable

19

STOPPER, SHIFT BAR

4BR-18536-00-00

Unavailable

20

SCREW, FLAT

98704-06016-00

Unavailable

21

BOLT

90109-08227-00

Unavailable

22

STOPPER LEVER ASSY

4BR-18140-01-00

Unavailable

23

SPRING, TORSION

90508-241A9-00

Unavailable
