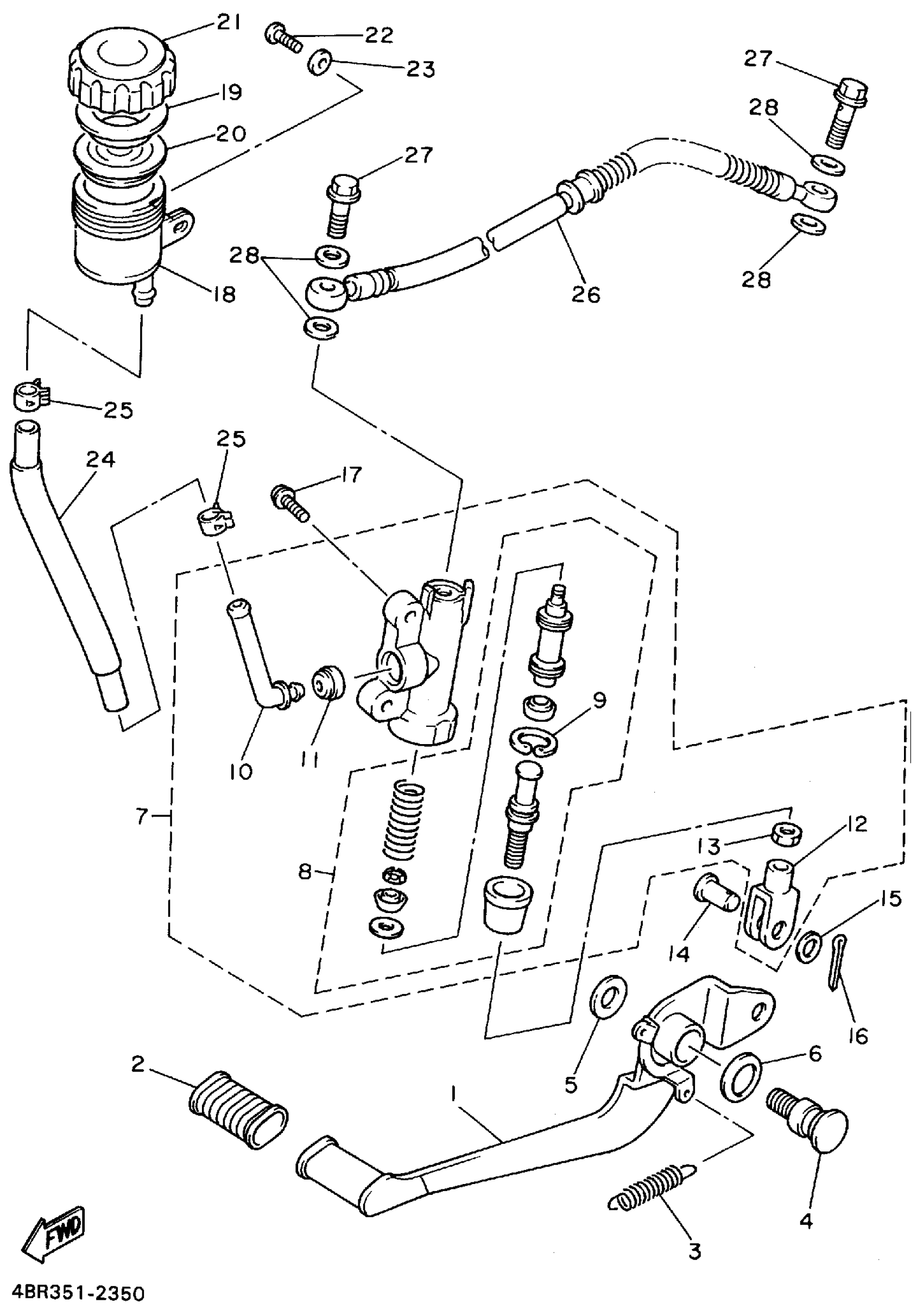

Yamaha XJ600SFC (SECA II CA) 1994 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

4EB-27211-00-00

Unavailable

2

COVER, SHIFT PEDAL

22N-18113-00-00

$7.99

3

SPRING, TENSION (2X4)

90506-20192-00

$7.49

4

SHAFT

4BP-27261-10-00

Unavailable

5

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

6

WASHER, WAVE(6T4)

90206-14086-00

$8.49

7

RR. MASTER CYLINDER ASSY.

4BP-2583V-01-00

$268.99

8

CYLINDER KIT, MASTER

3TU-W0042-51-00

Unavailable

9

CIRCLIP, MASTER CYLINDER

3LN-2585G-00-00

$4.63

10

JOINT

4BP-2582A-00-00

$17.49

11

O-RING

4BP-2585F-01-00

Unavailable

12

JOINT

4BP-27222-02-00

$29.99

13

. NUT

95380-08700-00

Unavailable

14

PIN, CLEVIS(2YK)

90240-08124-00

$7.49

15

WASHER, PLATE 1562722600

90201-08083-00

$9.49

16

PIN, COTTER

91490-20025-00

Unavailable

17

BOLT, BUTTON HEAD(3YF)

92014-08025-00

Unavailable

18

TANK, RESERVOIR

31A-25894-01-00

Unavailable

19

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

20

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

21

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

22

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

HOSE, RESERVOIR

4BP-25895-01-00

Unavailable

25

CLIP (5K4)

90467-14057-00

Unavailable

26

HOSE, BRAKE 5

4BP-2581K-00-00

Unavailable

27

BOLT, UNION(3GM)

90401-10159-00

Unavailable

28

WASHER, PLATE(481)

90201-10118-00

Unavailable
