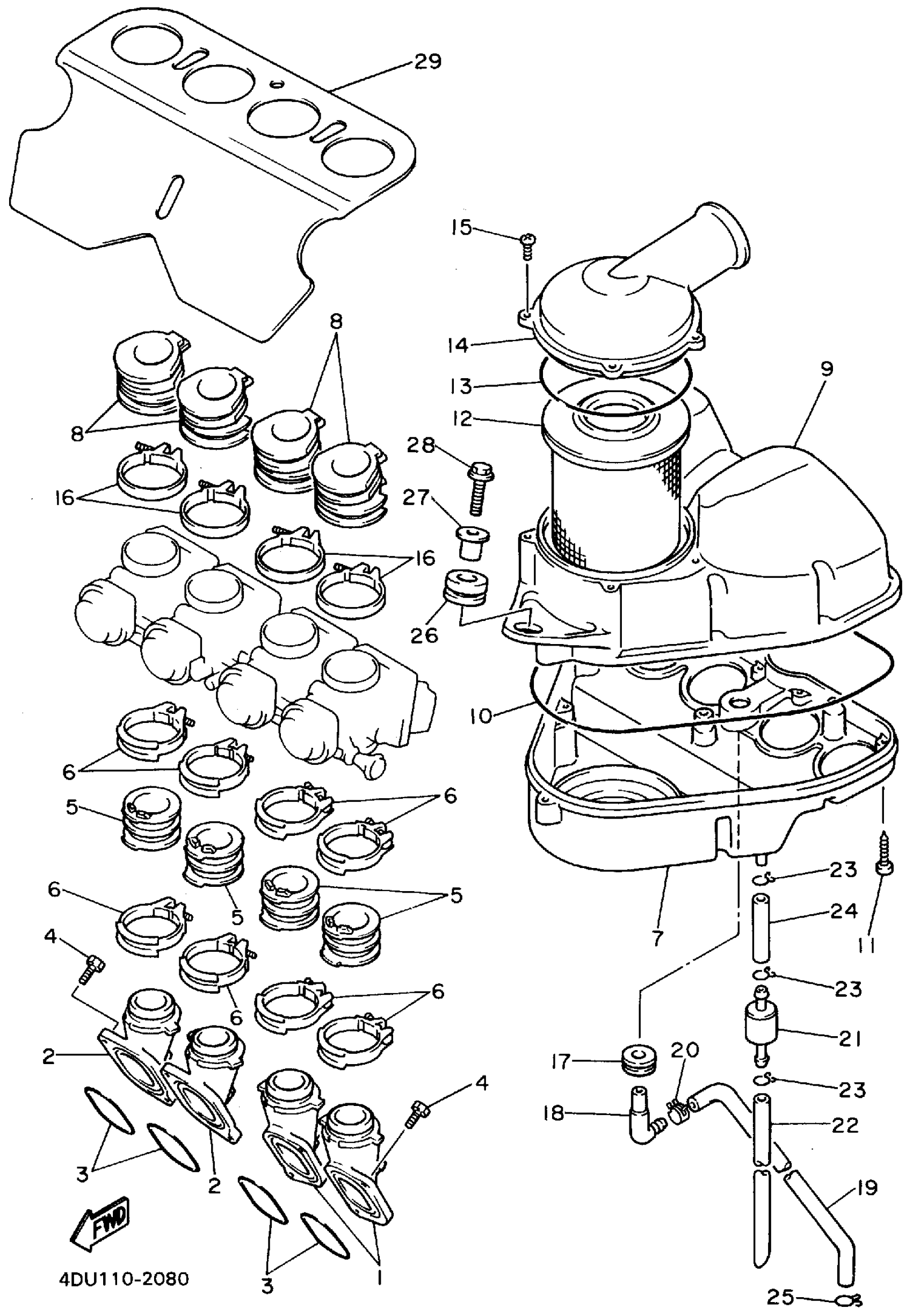

Yamaha XJ600SFC (SECA II CA) 1994 INTAKE Diagram
#
Description
Price
1
JOINT, CARBURETOR 1
4BR-13586-00-00
Unavailable
2
JOINT, CARBURETOR 2
4BR-13596-00-00
Unavailable
7
CASE, AIR CLEANER 1
4BR-14411-00-00
Unavailable
8
JOINT, AIR CLEANER 1
4DU-14453-00-00
Unavailable
9
CASE, AIR CLEANER 2
4BR-14421-00-00
Unavailable
11
YBS83-530 SCREW,PANH.TAPPING
97780-50130-00
Unavailable
12
ELEMENT, AIR CLEANER
4BR-14451-00-00
Unavailable
14
CAP,CLEANER CASE 1
4BR-14412-01-00
Unavailable
15
YBS83-530 SCREW,PANH.TAPPING
97780-50130-00
Unavailable
16
HOSE CLAMP ASSY
90450-54008-00
Unavailable
17
GROMMET
31A-14435-01-00
Unavailable
18
PIPE
31A-14419-00-00
Unavailable
19
PIPE, BREATHER 1
4BR-11166-00-00
Unavailable
20
CLIP (4X7)
90467-15054-00
Unavailable
21
FILTER ASSY
4X7-2149Y-00-00
Unavailable
22
HOSE (L370)
90445-112E1-00
Unavailable
23
CLIP
90467-100A1-00
Unavailable
24
HOSE (L800)
90445-11083-00
Unavailable
25
CLIP (371)
90467-14015-00
Unavailable
26
GROMMET 839774310000
90480-14023-00
Unavailable
27
COLLAR(47X)
90387-060M9-00
Unavailable
28
BOLT, FLANGE
95817-06030-00
Unavailable
29
PROTECTOR, HEAT
4BR-12682-02-00
Unavailable
