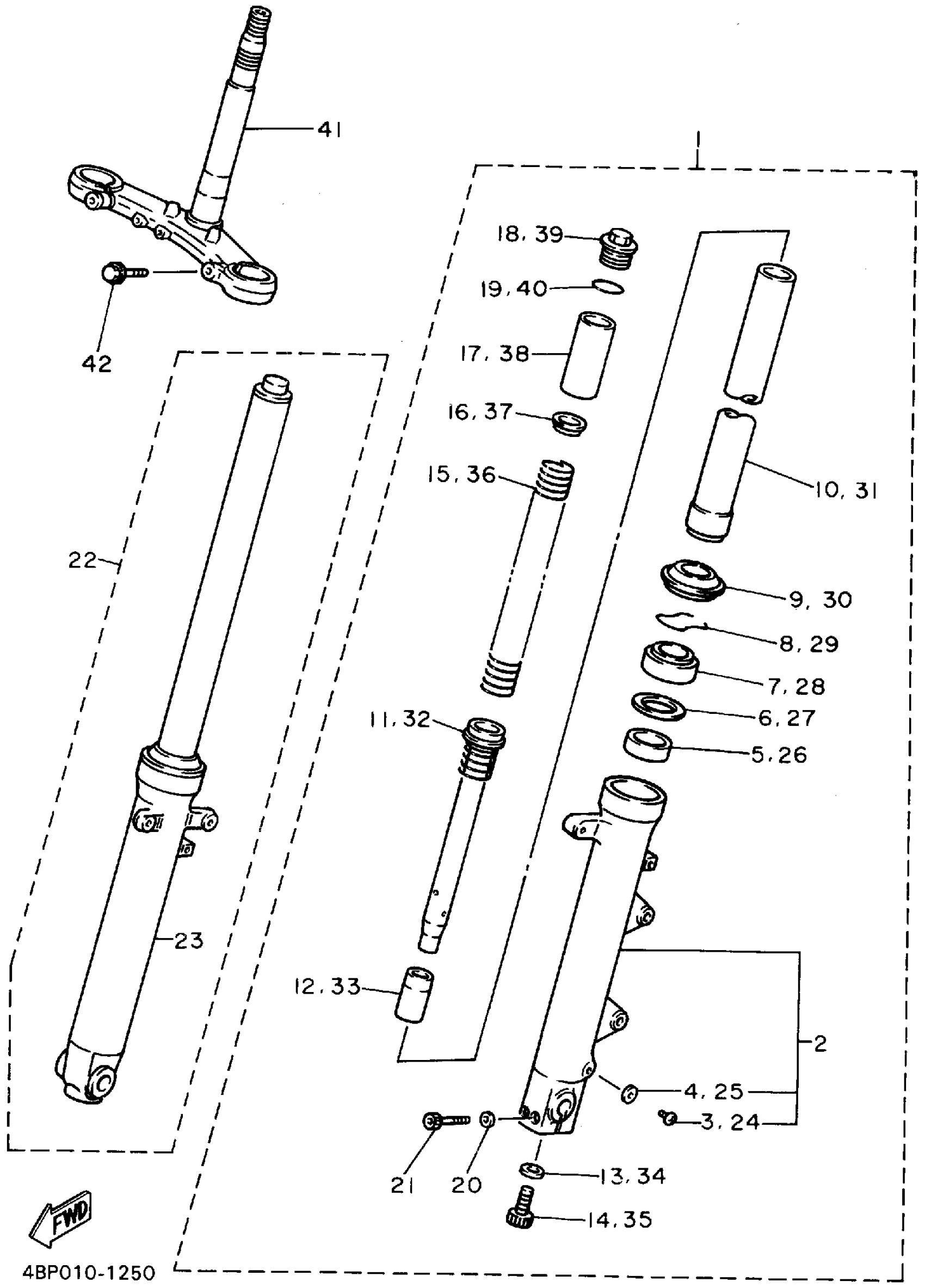

Yamaha XJ600SFC (SECA II CA) 1994 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L

4BR-23102-03-00

Unavailable

2

. TUBE, OUTER (LEFT)

4BP-23126-00-00

Unavailable

3

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

4

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

5

METAL, SLIDE 1

3YX-23125-00-00

$15.49

6

WASHER

4V2-23146-L0-00

$29.99

7

OIL SEAL

3EN-23145-00-00

$25.99

8

RING, SNAP

3R4-23153-00-00

$8.99

9

SEAL, DUST

3EN-23144-01-00

$27.99

10

INNER TUBE COMP.1

3YX-23110-01-00

Unavailable

11

. CYLINDER COMP, FRONT FORK

4BR-23170-00-00

Unavailable

12

SPINDLE, TAPER

2YK-23173-00-00

Unavailable

13

GASKET

509-23158-L0-00

$16.49

14

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

15

. SPRING, FRONT FORK

4BP-23141-00-00

Unavailable

16

. SEAT, SPRING UPPER

1FK-23142-00-00

Unavailable

17

. SPACER

26H-23118-00-00

Unavailable

18

. BOLT, CAP

3EN-23111-00-00

Unavailable

19

O-RING

1W4-23114-L0-00

Unavailable

20

WASHER PLATE 141181390000

90201-08085-00

Unavailable

21

BOLT, SOCKET

91314-08035-00

Unavailable

22

FRONT FORK ASY RH

4BR-23103-03-00

Unavailable

23

. TUBE, OUTER (RIGHT)

4BP-23136-00-00

Unavailable

24

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

25

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

26

METAL, SLIDE 1

3YX-23125-00-00

$15.49

27

WASHER

4V2-23146-L0-00

$29.99

28

OIL SEAL

3EN-23145-00-00

$25.99

29

RING, SNAP

3R4-23153-00-00

$8.99

30

SEAL, DUST

3EN-23144-01-00

$27.99

31

INNER TUBE COMP.1

3YX-23110-01-00

Unavailable

32

. CYLINDER COMP, FRONT FORK

4BR-23170-00-00

Unavailable

33

SPINDLE, TAPER

2YK-23173-00-00

Unavailable

34

GASKET

509-23158-L0-00

$16.49

35

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

36

. SPRING, FRONT FORK

4BP-23141-00-00

Unavailable

37

. SEAT, SPRING UPPER

1FK-23142-00-00

Unavailable

38

. SPACER

26H-23118-00-00

Unavailable

39

. BOLT, CAP

3EN-23111-00-00

Unavailable

40

O-RING

1W4-23114-L0-00

Unavailable

41

UNDER BRACKET COMP.

4BP-23340-10-00

Unavailable

42

BOLT 2

2NX-23356-00-00

Unavailable
