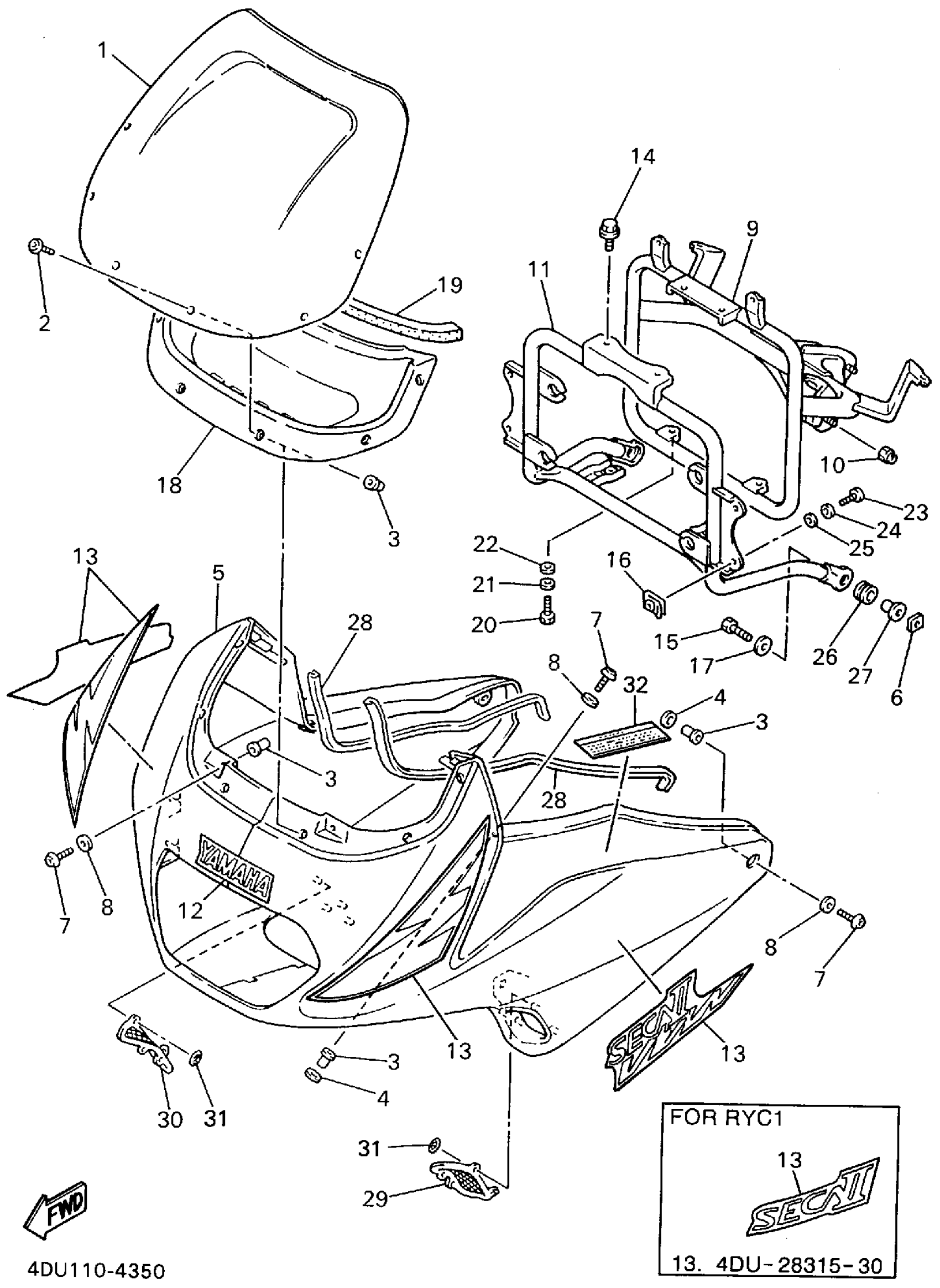

Yamaha XJ600SFC (SECA II CA) 1994 COWLING 1 Diagram

#

Description
Price

1

WINDSHIELD

4BR-28381-20-00

Unavailable

2

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

3

NUT(1KT)

90179-05523-00

$8.49

4

WASHER, PLATE (5E3)

90202-10120-00

Unavailable

5

COWLING ASSEMBLY

4BR-28350-10-NJ

Unavailable

5

COWLING ASSEMBLY

4BR-28350-10-P3

Unavailable

6

NUT, EMBLEM

42N-28317-00-00

Unavailable

7

SCREW(3YF)

90149-05299-00

$4.14

8

PLATE

4U5-2176E-00-00

$7.99

9

STAY 1

4BR-28356-00-00

Unavailable

10

NUT, SELF-LOCKING

90185-08169-00

$8.49

11

STAY 2

4BR-28357-00-00

Unavailable

12

EMBLEM, YAMAHA

99246-00100-00

$17.99

12

EMBLEM, YAMAHA

99247-00100-00

$14.99

13

EMBLEM (REDDISH YELLOW COCKTAIL 1)

4DU-28315-30-00

Unavailable

13

GRAPHIC, SET (FARAWAY BLUE)

4DU-28390-01-00

Unavailable

14

BOLT, FLANGE

95817-06012-00

Unavailable

15

BOLT, HEXAGON

97017-06020-00

Unavailable

16

NUT,PLATE

47X-21736-01-00

Unavailable

17

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

18

PANEL, INNER 1

4BR-2836K-00-00

Unavailable

19

DAMPER 1

4BR-28217-00-00

Unavailable

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable

23

SCREW, PAN HEAD

98580-06016-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

GROMMET (1E5)

90480-13163-00

Unavailable

27

COLLAR (11G)

90387-061F9-00

Unavailable

28

MOLE 1

4BR-28345-00-00

Unavailable

29

PANEL 1

4BR-2172A-00-00

Unavailable

30

PANEL 2

4BR-2172F-00-00

Unavailable

31

NUT, SPRING

90183-03010-00

Unavailable

32

LABEL, CAUTION

3JJ-2835Y-00-00

Unavailable
