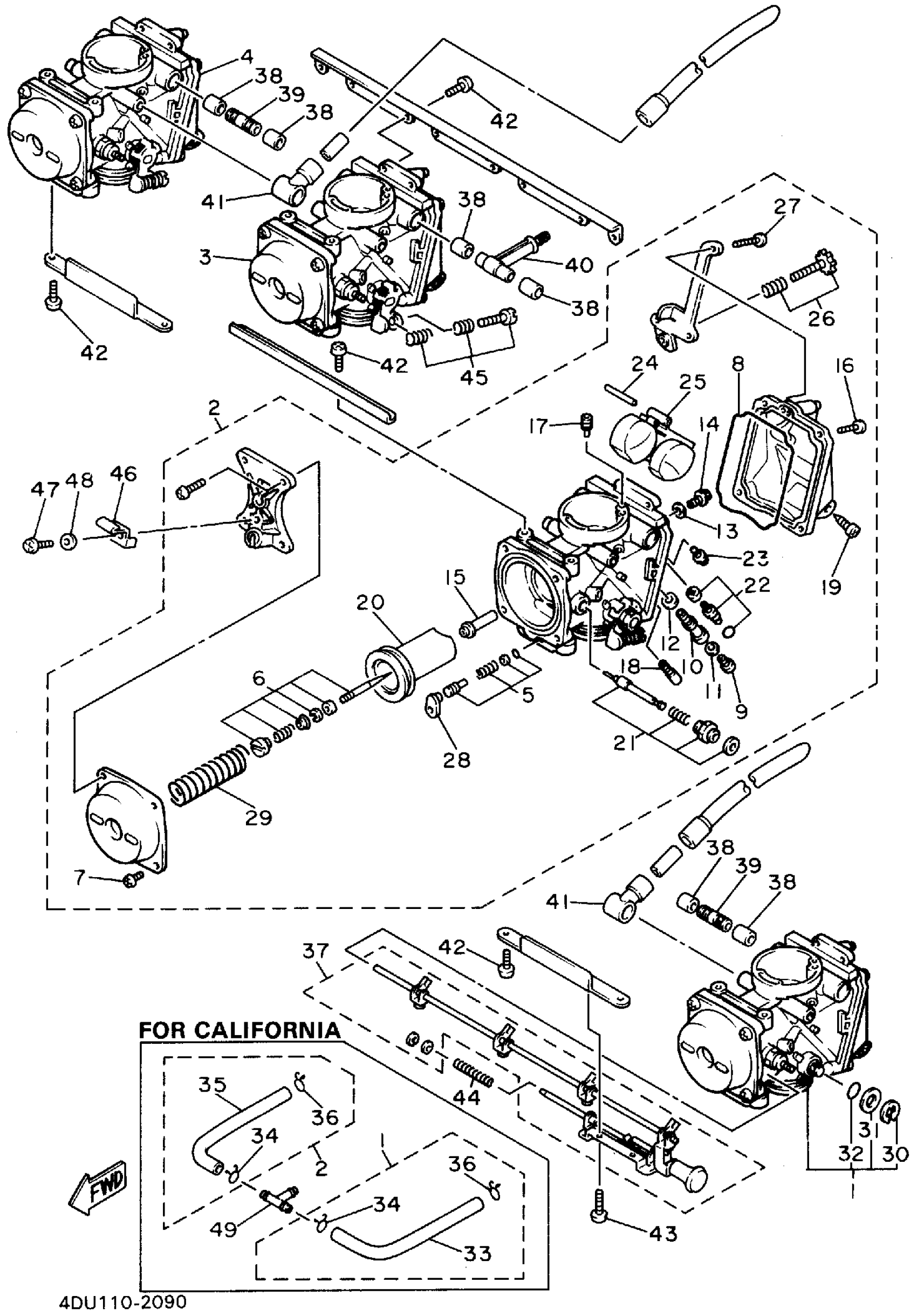

Yamaha XJ600SFC (SECA II CA) 1994 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

4DU-14901-01-00

Unavailable

1

CARBURETOR ASSEMBLY 1

4DU-14901-11-00

Unavailable

2

CARBURETOR ASSEMBLY 2

4DU-14902-01-00

Unavailable

2

CARBURETOR ASSEMBLY 2

4DU-14902-11-00

Unavailable

3

CARBURETOR ASSEMBLY 3

4DU-14903-01-00

Unavailable

3

CARBURETOR ASSEMBLY 3

4DU-14903-11-00

Unavailable

4

CARBURETOR ASSEMBLY 4

4DU-14904-00-00

Unavailable

4

CARBURETOR ASSEMBLY 4

4DU-14904-11-00

Unavailable

5

PILOT SCREW SET

12R-14105-00-00

$17.49

6

. NEEDLE SET

4DU-1490J-00-00

Unavailable

7

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

7

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

8

O-RING

1HX-14147-00-00

$22.99

9

JET,MA1N #102.5

620-1423A-71-A0

$10.99

10

HOLDER

1AE-14261-00-00

$30.99

11

O-RING

1AE-14227-00-00

Unavailable

12

GASKET

1AE-14237-00-00

Unavailable

13

WASHER,MAIN JET

137-14153-00-00

Unavailable

14

SCREW

1HX-14565-00-00

Unavailable

15

. NOZZLE, MAIN

3DM-14141-32-00

Unavailable

15

NOZZLE, MAIN

3DM-14141-34-00

Unavailable

16

SCREW

4DU-14125-00-00

Unavailable

16

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

17

. JET, MAIN (#145)

830-14231-29-00

Unavailable

18

JET, PILOT (#17.5)

22F-14142-17-00

Unavailable

19

PLUG, DRAIN

12R-14191-00-00

Unavailable

20

DIAPHRAGM ASSY

3BG-14940-00-00

Unavailable

21

. STARTER SET

4DU-1410A-00-00

Unavailable

22

NEEDLE VALVE SET

1FN-14107-12-00

Unavailable

23

SCREW

1FN-14565-00-00

Unavailable

24

PIN, FLOAT

353-14186-00-00

Unavailable

25

FLOAT

1HX-14985-00-00

Unavailable

26

THROTTLE SCREW SET

1HX-14103-00-00

Unavailable

27

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

28

CAP

3F9-14118-00-00

Unavailable

29

SPRING, DIAPHRAGM

1HX-14933-00-00

Unavailable

30

CLIP

812-14137-00-00

Unavailable

31

WASHER (3H1)

1A8-14953-00-00

Unavailable

32

.. SEAL

256-14997-00-00

Unavailable

33

. PIPE 4

4DU-12484-00-00

Unavailable

34

CLIP

90467-100A1-00

Unavailable

35

. PIPE 3

4DU-12483-00-00

Unavailable

36

CLIP, PIPE

8A7-14139-00-00

Unavailable

37

STARTER LEVER SET, 1

4DU-1490L-00-00

Unavailable

38

SEAL

3EN-14997-00-00

Unavailable

39

PIPE

3YX-14148-00-00

Unavailable

40

NIPPLE

3LN-14251-00-00

Unavailable

41

. PIPE

1AE-14197-00-00

Unavailable

42

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

43

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

44

SPRING, PLUNGER

2N3-14135-00-00

Unavailable

45

STOP SCREW SET

3KW-1490K-00-00

Unavailable

46

PLATE

4DU-14255-01-00

Unavailable

47

SCREW, PAN HEAD (7G3)

98580-05008-00

Unavailable

48

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

49

PIPE, JOINT

3H3-24376-00-00

Unavailable
