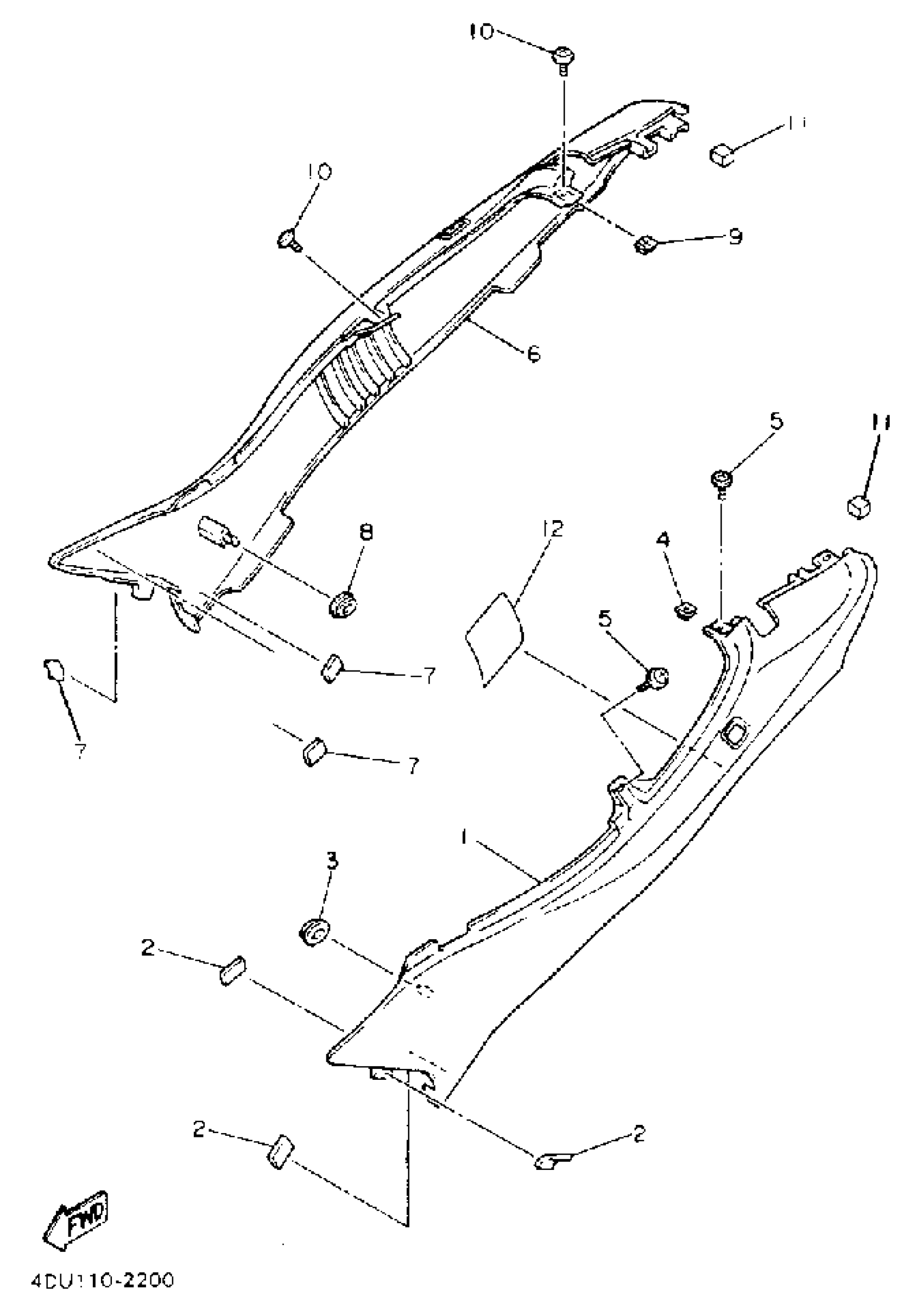

Yamaha XJ600SEC (SECA II CA) 1993 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

4BP-21711-01-P1

Unavailable

1

COVER, SIDE 1

4BP-21711-01-P2

Unavailable

2

DAMPER, LOCATING 1

18A-21778-00-00

$6.99

3

GROMMET(41Y)

90480-01401-00

$8.49

4

NUT, SPRING

90183-051A0-00

$3.81

5

SCREW, WITH WASHER

90159-05163-00

Unavailable

6

COVER, SIDE 2

4BP-21721-01-P1

Unavailable

6

COVER, SIDE 2

4BP-21721-01-P2

Unavailable

7

DAMPER, LOCATING 1

18A-21778-00-00

$6.99

8

GROMMET(41Y)

90480-01401-00

$8.49

9

NUT, SPRING

90183-051A0-00

$3.81

10

SCREW, WITH WASHER

90159-05163-00

Unavailable

11

DAMPER

34M-2139X-00-00

$3.74

12

PLATE, EPA

4DU-2179R-10-00

Unavailable

12

PLATE, EPA 1

4DU-2179V-10-00

Unavailable
