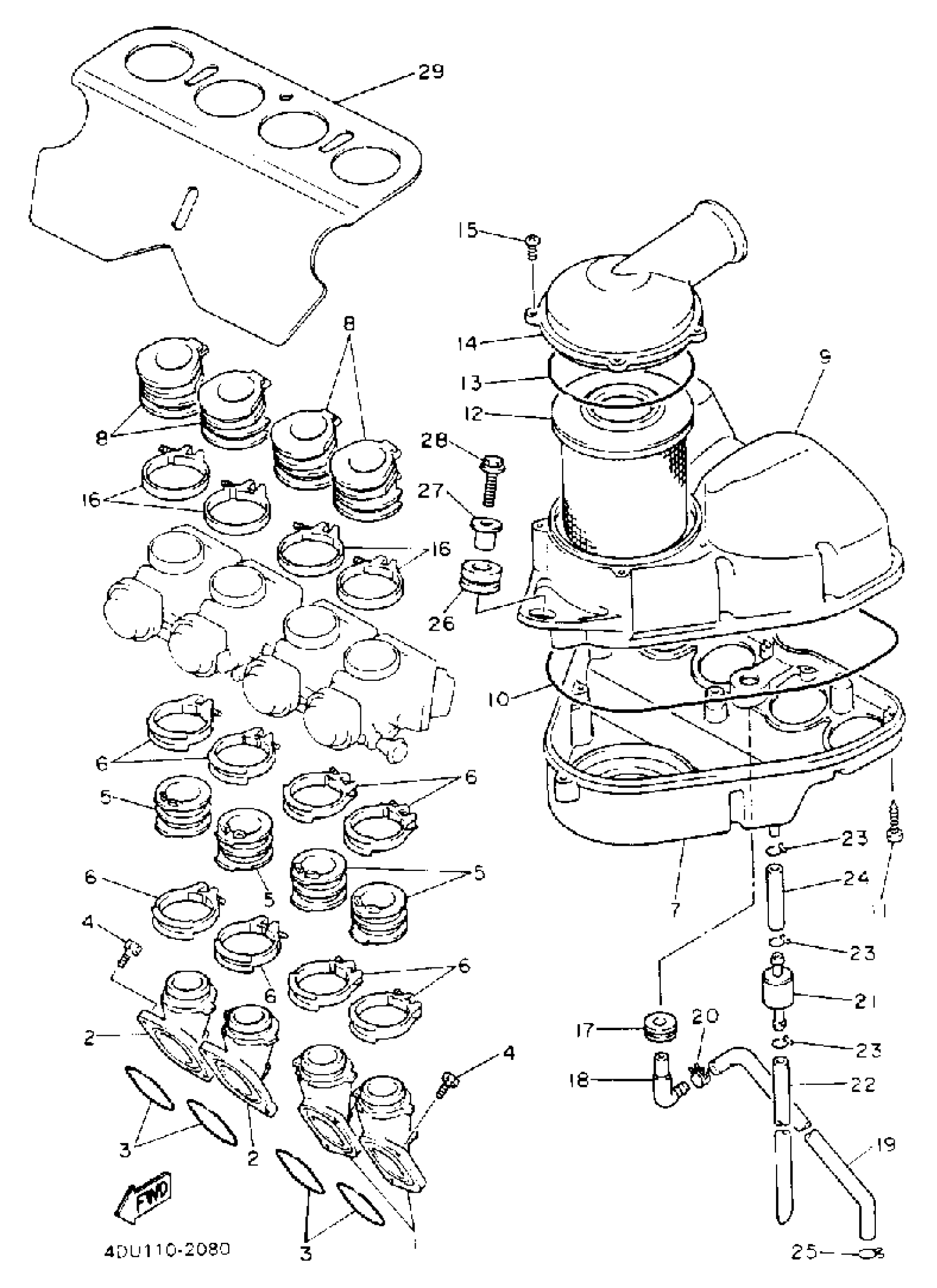

Yamaha XJ600SEC (SECA II CA) 1993 AIR FILTER Diagram

JOINT, CARBURETOR 1

4BR-13586-00-00

Unavailable

JOINT, CARBURETOR 2

4BR-13596-00-00

Unavailable

O-RING (5Y1)

93210-37532-00

$8.49

BOLT,SOCKET HEAD

91314-06020-00

$1.49

JOINT, CARBURETOR 4

4BR-13598-10-00

$36.99

HOSE CLAMP ASSY

90450-46001-00

$12.49

CASE, AIR CLEANER 1

4BR-14411-00-00

Unavailable

JOINT, AIR CLEANER 1

4DU-14453-00-00

Unavailable

CASE, AIR CLEANER 2

4BR-14421-00-00

Unavailable

SEAL

1VJ-14462-00-00

$18.49

YBS83-530 SCREW,PANH.TAPPING

97780-50130-00

Unavailable

ELEMENT, AIR CLEANER

4BR-14451-00-00

Unavailable

SEAL

1VJ-14462-00-00

$18.49

CAP,CLEANER CASE 1

4BR-14412-01-00

Unavailable

YBS83-530 SCREW,PANH.TAPPING

97780-50130-00

Unavailable

HOSE CLAMP ASSY

90450-54008-00

Unavailable

GROMMET

31A-14435-01-00

Unavailable

PIPE

31A-14419-00-00

Unavailable

PIPE, BREATHER 1

4BR-11166-00-00

Unavailable

CLIP (4X7)

90467-15054-00

Unavailable

FILTER ASSY

4X7-2149Y-00-00

Unavailable

HOSE (L370)

90445-112E1-00

Unavailable

CLIP

90467-100A1-00

Unavailable

HOSE (L800)

90445-11083-00

Unavailable

CLIP (371)

90467-14015-00

Unavailable

GROMMET 839774310000

90480-14023-00

Unavailable

COLLAR(47X)

90387-060M9-00

Unavailable

BOLT, FLANGE

95817-06030-00

Unavailable

PROTECTOR, HEAT

4BR-12682-02-00

Unavailable
