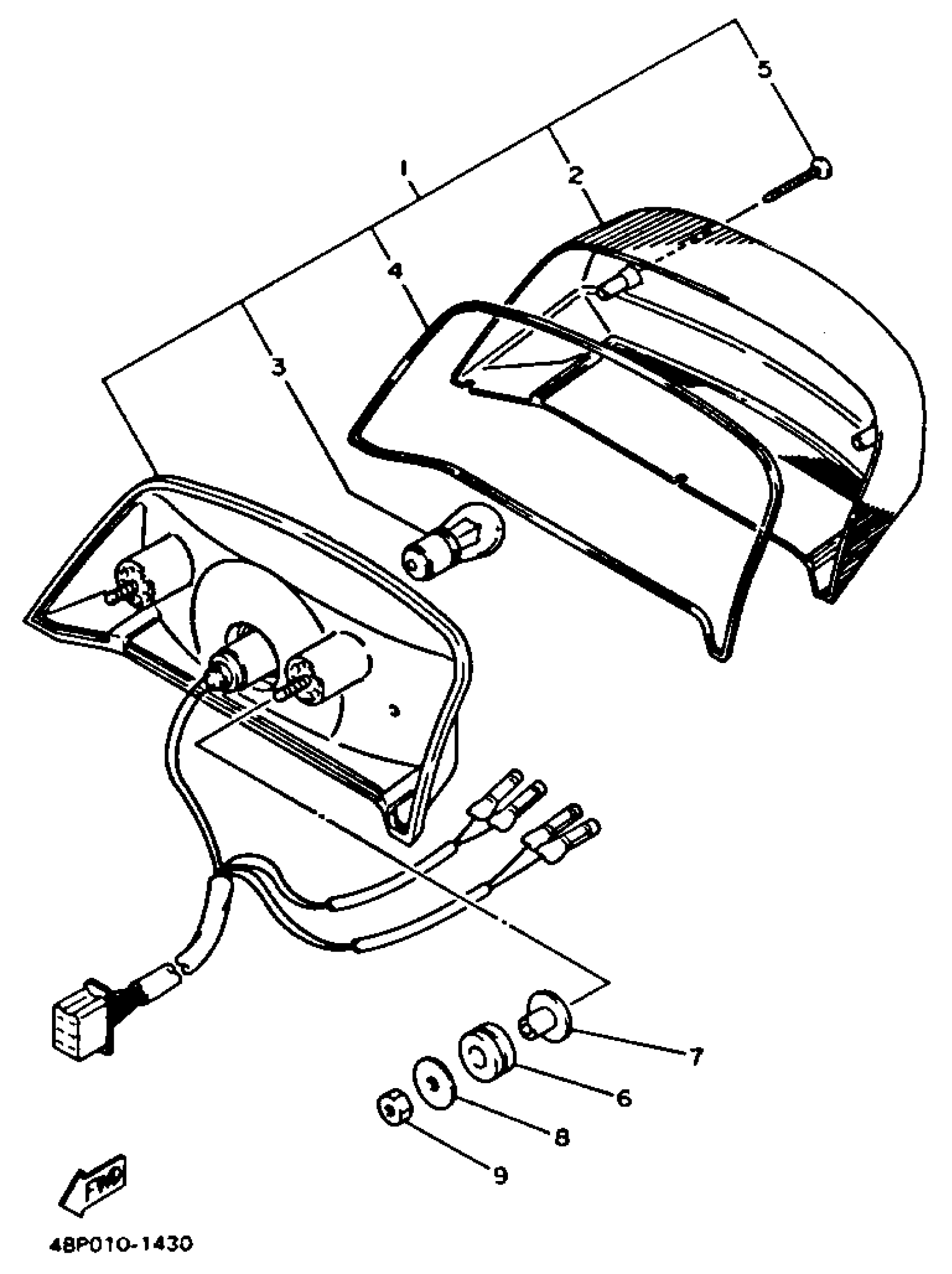

Yamaha XJ600SDC (SECA II CA) 1992 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

4DU-84710-00-00

Unavailable

2

LENS, TAILLIGHT

4BP-84721-00-00

Unavailable

3

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

4

GASKET, TAILLIGHT

4BP-84712-00-00

$8.59

5

SCREW, TAILLIGHT

4BP-8471J-00-00

$2.98

6

GROMMET (4L0)

90480-18276-00

$6.35

7

COLLAR 8111266500

90387-07037-00

$5.77

8

WASHER, PLATE (J10)

90201-06697-00

$5.87

9

NUT, HEXAGON

95380-06600-00

$4.01
