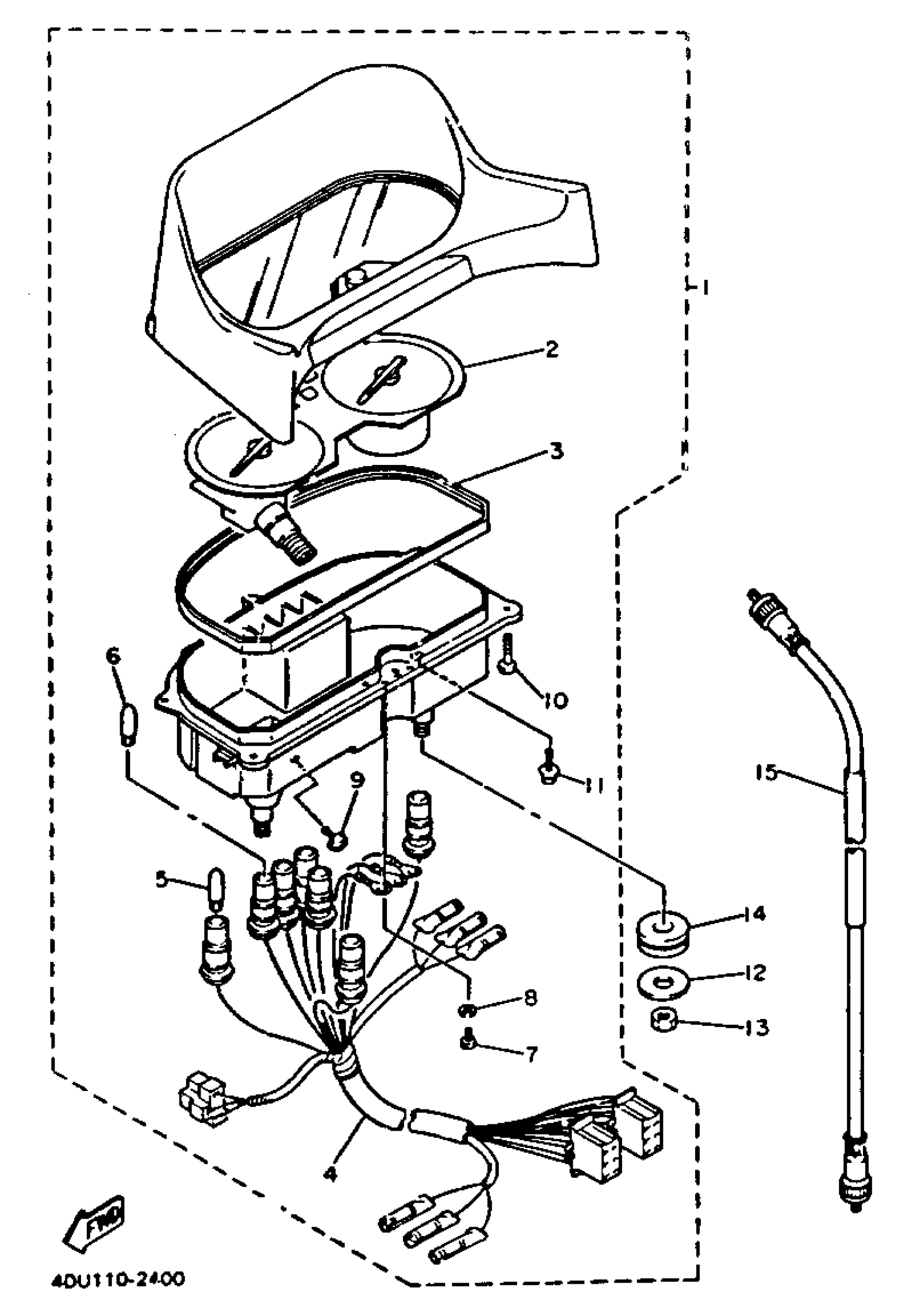

Yamaha XJ600SDC (SECA II CA) 1992 METER Diagram

#

Description
Price

1

SPEEDOMETER ASY

4DU-83500-01-00

Unavailable

2

SPEEDOMETER ASY

4BR-83570-11-00

Unavailable

3

. GASKET, UPPER

4BP-8353J-00-00

Unavailable

4

SOCKET CORD ASY

4DU-83509-01-00

Unavailable

5

BULB (12V-1.7W)

3GM-83517-00-00

$4.58

6

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.94

7

SCREW PAN HEAD

98580-03010-00

$6.58

8

WASHER, SPRING

92990-03100-00

$5.87

9

SCREW,PAN HEAD W/WASHER

99999-04427-00

$1.52

10

SCREW, TAPPING

90164-04005-00

Unavailable

11

SCREW, TAPPING (15A)

90164-04008-00

$6.80

12

WASHER, PLATE

90201-06380-00

$1.49

13

NUT, HEXAGON

95380-06600-00

$4.01

14

DAMPER

5J0-83513-00-00

$13.88

15

SPEEDOMETER CABLE ASSY

3GM-83550-02-00

Unavailable
