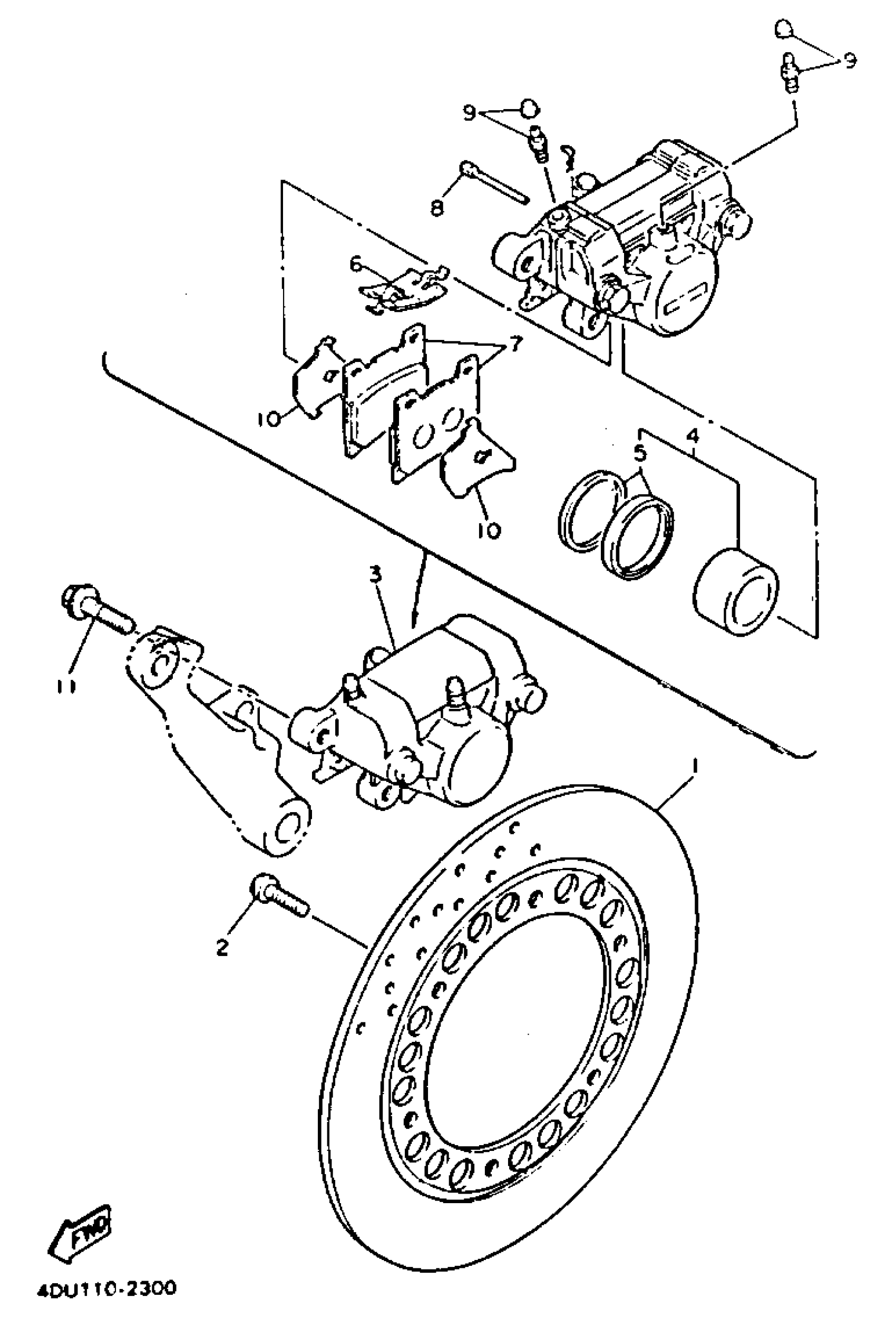

Yamaha XJ600SDC (SECA II CA) 1992 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

4HM-2582W-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$3.96

3

CALIPER ASSEMBLY, REAR 2

4BP-2580W-00-00

Unavailable

4

PISTON ASSY, CALIPER

51L-W0057-00-00

$72.47

5

CALIPER SEAL KIT

51L-W0047-11-00

Unavailable

6

. SUPPORT, PAD

3LN-25919-10-00

Unavailable

7

BRAKE PAD KIT 2

4AP-W0046-00-00

$42.23

8

PIN, PAD

4FL-25924-00-00

$15.13

9

BLEED SCREW KIT

15B-W0048-00-00

$17.25

10

SHIM, CALIPER

4BP-25827-00-00

Unavailable

11

BOLT, WASHER BASED(3VD)

90105-10638-00

$8.49
