Description

Price

1

CAST WHEEL, FRONT

4BP-25168-00-WN

Unavailable

2

SPACER

90560-17241-00

Unavailable

3

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

4

OIL SEAL (25X40X5-101)

93102-25017-00

$5.60

5

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

6

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

7

OIL SEAL (45X56X6)

93105-45017-00

$14.99

8

110/80-17 57H DUN K275F

94111-172Y9-00

Unavailable

8

110/80-17 57H DUN K275F

94111-172Y9-00

Unavailable

9

VALVE, RIM(2GH)

93900-00030-00

$16.99

10

BALANCER, WHEEL

5MT-25398-00-00

$17.49

10

BALANCER, WHEEL

5MT-25398-10-00

$17.49

10

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

11

GEAR UNIT ASSY

4HM-25190-20-00

Unavailable

12

AXLE, WHEEL

3GM-25181-03-00

Unavailable

13

COLLAR (3HE)

90387-177Y4-00

Unavailable

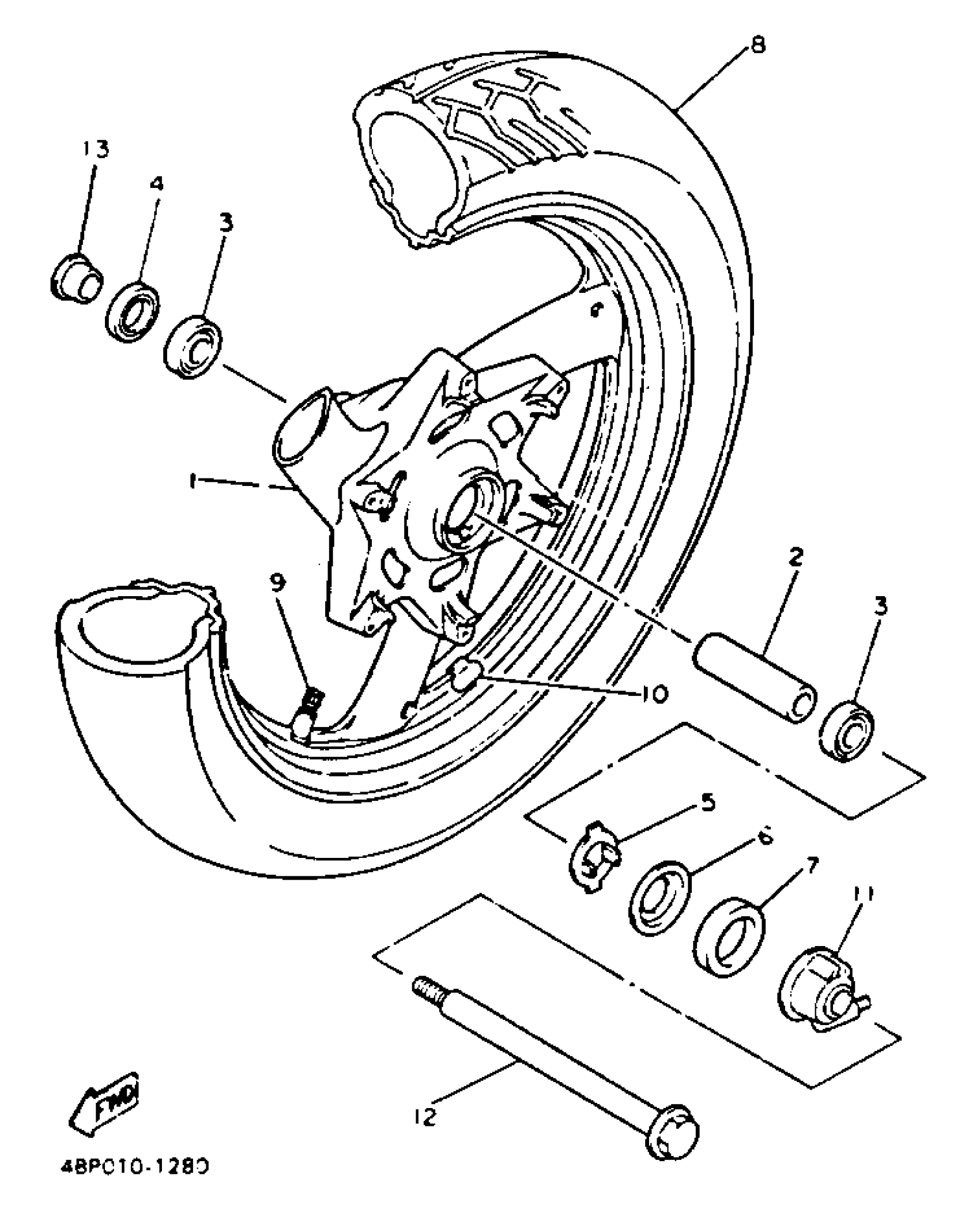

Yamaha XJ600SDC (SECA II CA) 1992 FRONT WHEEL Diagram

CAST WHEEL, FRONT

SPACER

BRG,R-B 6203RS 40MM 63.3G KY

OIL SEAL (25X40X5-101)

CLUTCH, METER (371,447)

RETAINER, CLUTCH (371,447)

OIL SEAL (45X56X6)

110/80-17 57H DUN K275F

110/80-17 57H DUN K275F

VALVE, RIM(2GH)

BALANCER, WHEEL

BALANCER, WHEEL

BALANCER, WHEEL

GEAR UNIT ASSY

AXLE, WHEEL

COLLAR (3HE)
