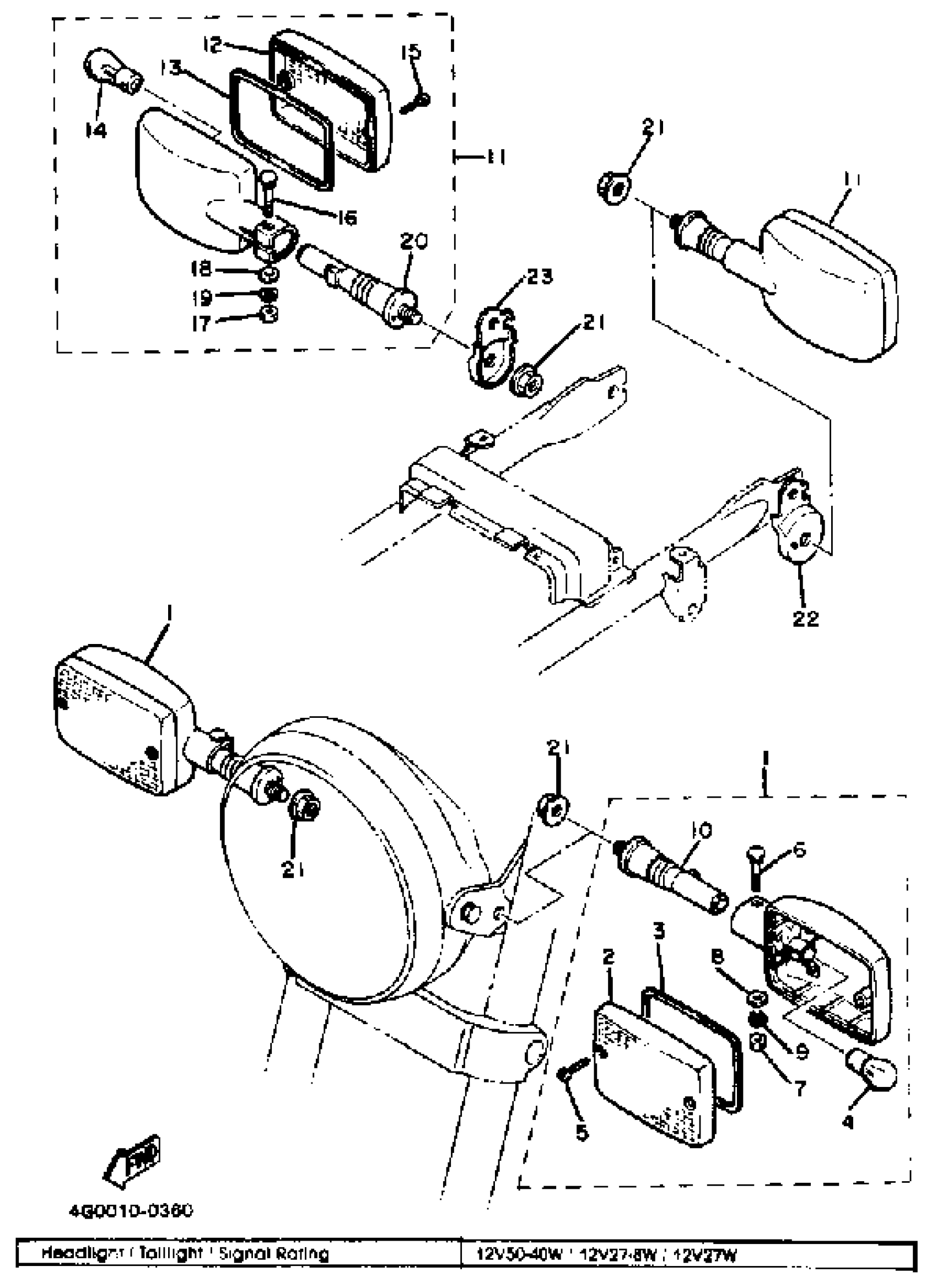

Yamaha XJ550RK (XJ550R) 1983 TURNSIGNAL Diagram

#

Description
Price

1

FRT FLSHR LITE ASY

4G0-83310-20-00

Unavailable

2

. LENS, FLASHER

4G0-83312-00-00

Unavailable

3

. GASKET, FLASHER LENS

4G0-83313-00-00

Unavailable

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

SCREW,TAPPING

97701-40618-00

Unavailable

6

. BOLT, FLASHER 1

4G0-83317-00-00

Unavailable

7

NUT, HEXAGON (663)

95380-05600-00

$8.49

8

WASHER, PLAIN (646)

92990-05600-00

$0.80

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

STAY, FLASHER 1

4G0-83318-00-00

Unavailable

11

FRT FLSHR LITE ASY

4G0-83310-20-00

Unavailable

12

. LENS, FLASHER

4G0-83312-00-00

Unavailable

13

. GASKET, FLASHER LENS

4G0-83313-00-00

Unavailable

14

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

15

SCREW,TAPPING

97701-40618-00

Unavailable

16

. BOLT, FLASHER 1

4G0-83317-00-00

Unavailable

17

NUT, HEXAGON (663)

95380-05600-00

$8.49

18

WASHER, PLAIN (646)

92990-05600-00

$0.80

19

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

20

STAY, FLASHER 1

4G0-83318-00-00

Unavailable

21

NUT(3GG)

90179-12588-00

Unavailable

22

STAY, FLASHER

4G0-83368-00-00

Unavailable

23

STAY, FLASHER

4G0-83369-00-00

Unavailable
