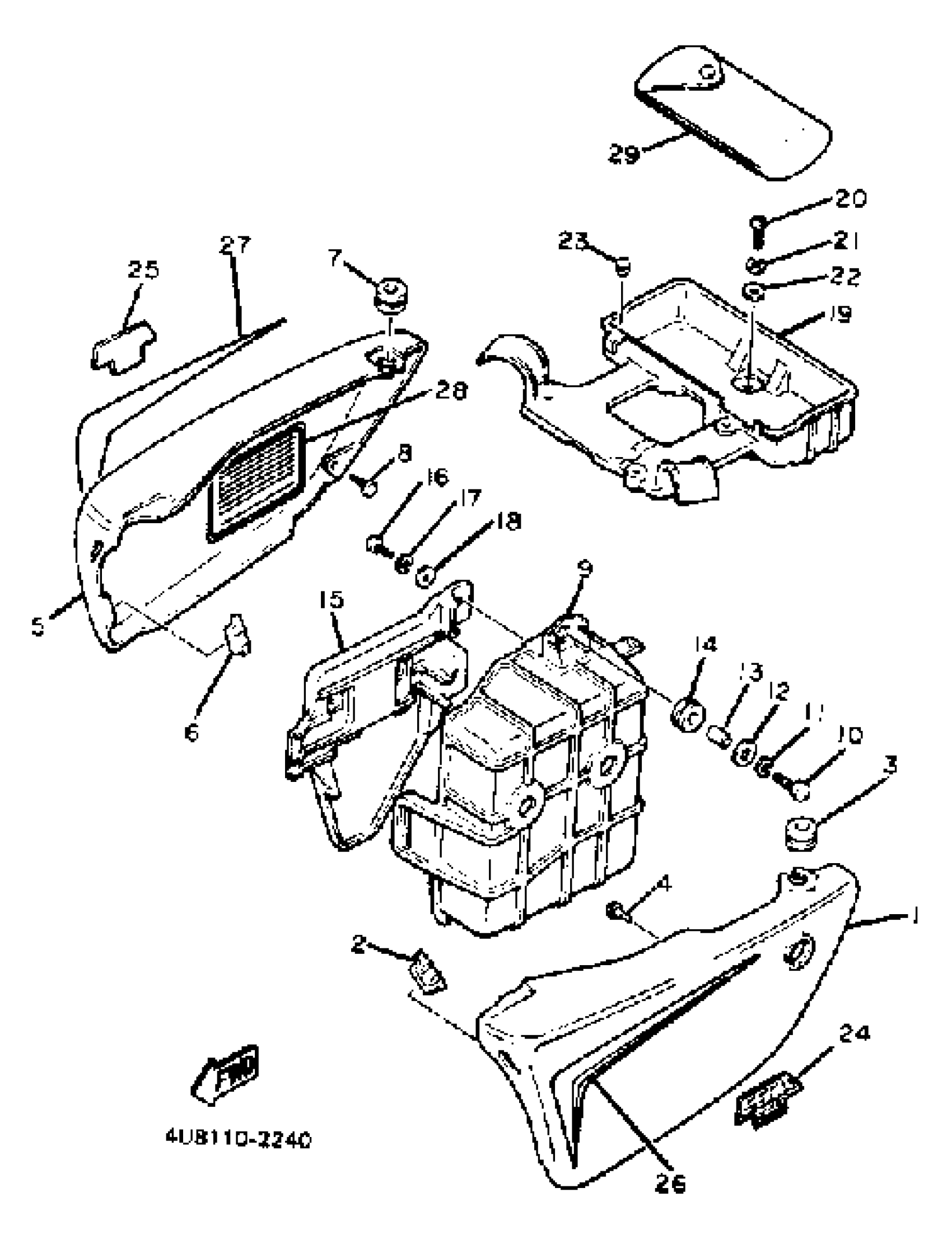

Yamaha XJ550RK (XJ550R) 1983 SIDE COVER TOOL Diagram

#

Description
Price

1

COVER, SIDE 1 (LH)

4G0-21711-00-6G

Unavailable

2

DAMPER, SIDE COVER

2N4-21717-00-00

$7.99

3

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

4

GROMMET (1J7)

90480-05201-00

$8.49

5

COVER, SIDE 2 (RH)

4G0-21721-00-6G

Unavailable

6

DAMPER, SIDE COVER

2N4-21717-00-00

$7.99

7

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

8

GROMMET (1J7)

90480-05201-00

$8.49

9

BOX

4G0-21170-01-00

Unavailable

10

BOLT(3DM)

97024-06020-00

$8.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

13

COLLAR

90387-06113-00

$11.49

14

GROMMET (2N3)

90480-16233-00

$8.49

15

LID

4G0-28185-00-00

Unavailable

16

SCREW, PAN

98507-06014-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLATE

90201-06049-00

Unavailable

19

BOX, TOOL

(4G0-21171-00-00)

Unavailable

20

SCREW, PAN

98507-06014-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLATE

90201-06049-00

Unavailable

23

DAMPER, SIDE COVER

1J7-21717-00-00

Unavailable

24

EMBLEM 1

4U8-21781-00-00

Unavailable

25

EMBLEM 2

4U8-21782-00-00

Unavailable

26

GRAPHIC

(4U8-2173E-30-00)

Unavailable

27

GRAPHIC

(4U8-2173F-30-00)

Unavailable

28

PLATE, SPEC

4U8-21683-10-00

Unavailable

29

TOOL KIT

1AA-W2810-00-00

Unavailable
