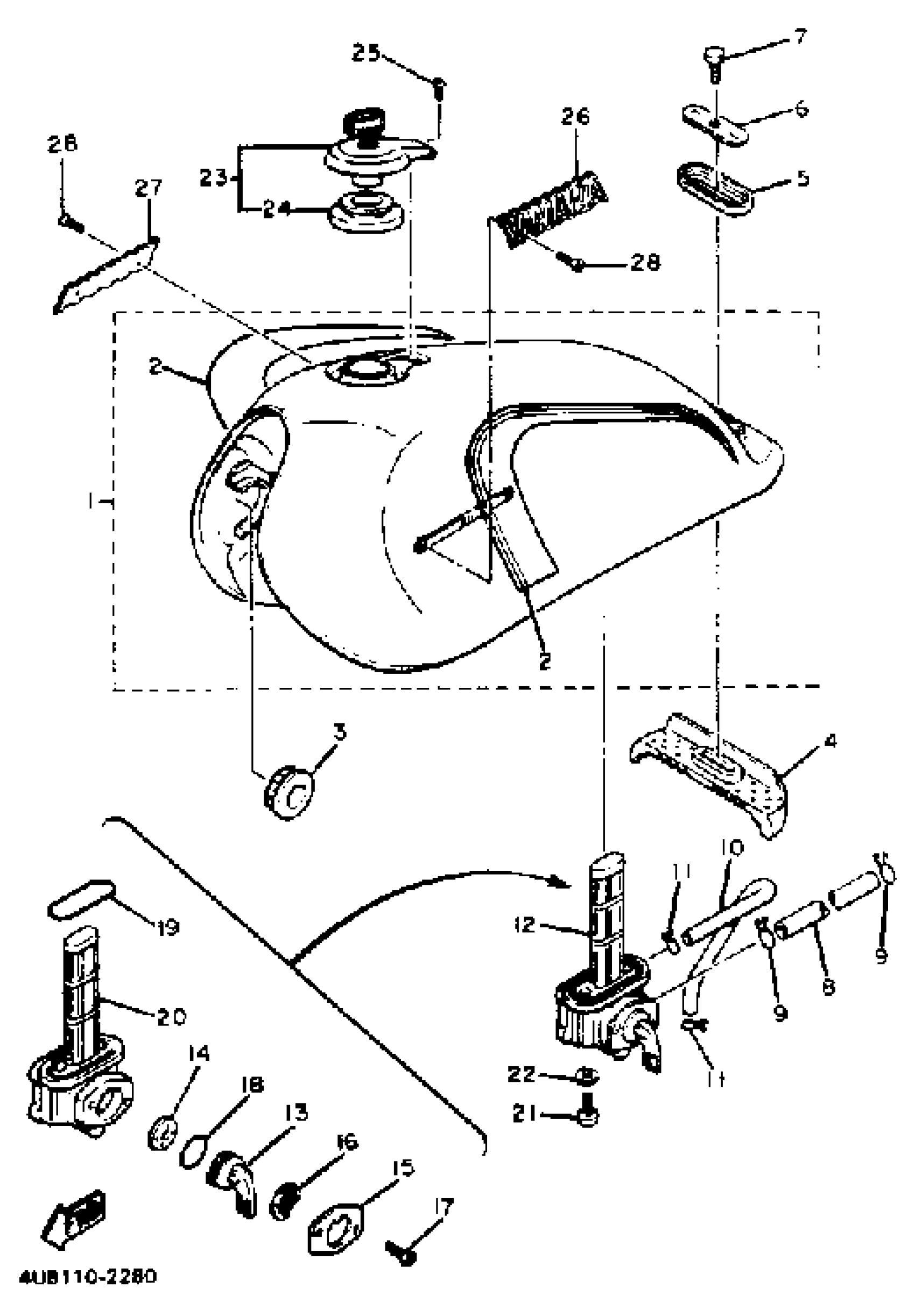

Yamaha XJ550RK (XJ550R) 1983 FUEL TANK Diagram

FUEL TANK

4G0-24110-00-X9

Unavailable

GRAPHIC SET

(4U8-24240-30-00)

Unavailable

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

UNAVAILABLE IN PRICE BOOK

4G0-23182-00-00

Unavailable

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

WASHER, SPECIAL

4H7-24186-00-00

Unavailable

BOLT(62E)

97013-08012-00

Unavailable

PIPE, FUEL 1

4G0-24311-00-00

Unavailable

CLIP

90467-100A1-00

$7.49

HOSE

90445-09531-00

Unavailable

CLIP (16G)

90467-08021-00

$8.49

FUEL COCK ASSY 1

3AL-24500-00-00

$140.99

. LEVER, COCK

4H7-24524-00-00

Unavailable

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

. PLATE, LVR FITTING

4H7-24525-00-00

Unavailable

WASHER, WAVE

10L-24518-00-00

Unavailable

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

O-RING, FUEL COCK

3H3-24534-00-00

Unavailable

O-RING

2W6-24512-00-00

Unavailable

NET, FILTER 1

3Y1-24514-00-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

CAP ASSY

4X7-24602-10-00

Unavailable

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

EMBLEM 1

4G0-24161-00-00

Unavailable

EMBLEM 2

4G0-24162-00-00

Unavailable

SCREW (2F0)

90152-04006-00

Unavailable
