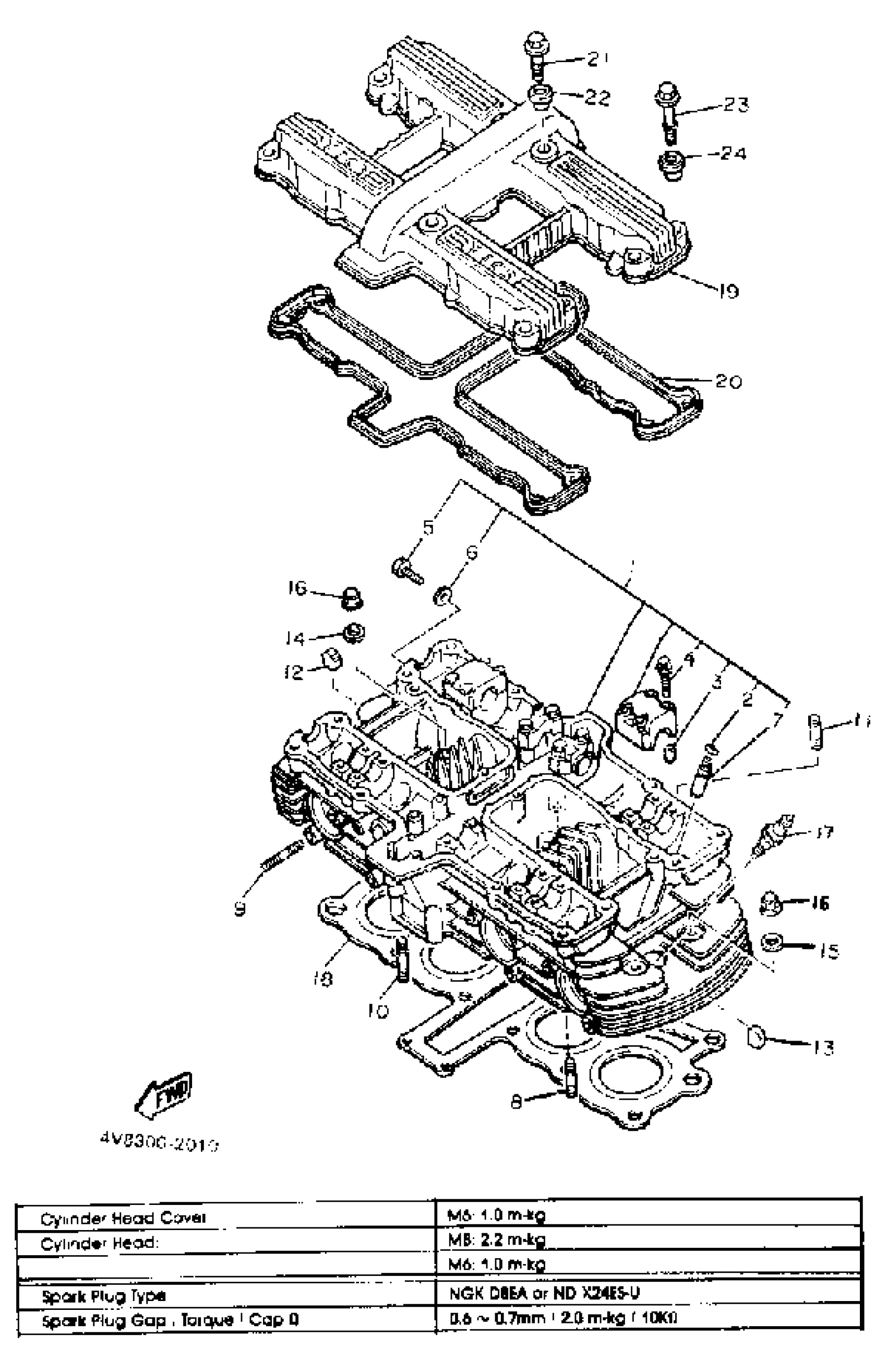

Yamaha XJ550RK (XJ550R) 1983 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(4U8-11101-00-00)

Unavailable

2

CIRCLIP (4G0)

93440-10085-00

$8.49

3

PIN, DOWEL(3XW)

91808-16023-00

$8.49

4

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

5

SCREW

90153-06029-00

$10.49

6

GASKET 256113960000

90430-06014-00

Unavailable

7

GUIDE, INTAKE VALVE

4G0-11133-11-00

$49.99

8

BOLT

50M-14651-00-00

Unavailable

9

BOLT, STUD(1FW)

90116-06466-00

$4.51

10

BOLT, STUD 3

95617-06625-00

$8.49

11

BOLT, STUD 2

95617-08330-00

$10.49

12

ABSORBER

434-11161-00-00

Unavailable

13

ABSORBER 1

4H7-11161-00-00

$3.48

14

WASHER, PLATE (33N)

90201-094G1-00

$9.49

15

WASHER, PLATE

90201-080L7-00

$4.82

16

NUT, CROWN (4G0)

90176-08026-00

Unavailable

17

ND X24ES-U XJ550RH

(94701-00181-00)

Unavailable

17

D8EA NGK SPLUG 10PK

D8E-A0000-00-00

Unavailable

18

GASKET,CYL HEAD

4U8-11181-10-00

Unavailable

19

COVER, CYLINDER.HEAD 1

(4V8-11191-00-00)

Unavailable

20

GASKET, CYLINDER HEAD ASSY

3KM-11193-00-00

Unavailable

21

BOLT (4V8)

90109-06604-00

Unavailable

22

RUBBER, MOUNT 1

4G0-1111G-00-00

Unavailable

23

BOLT (4V8)

90109-06605-00

Unavailable

24

RUBBER, MOUNT 2

4U8-1112G-00-00

Unavailable
