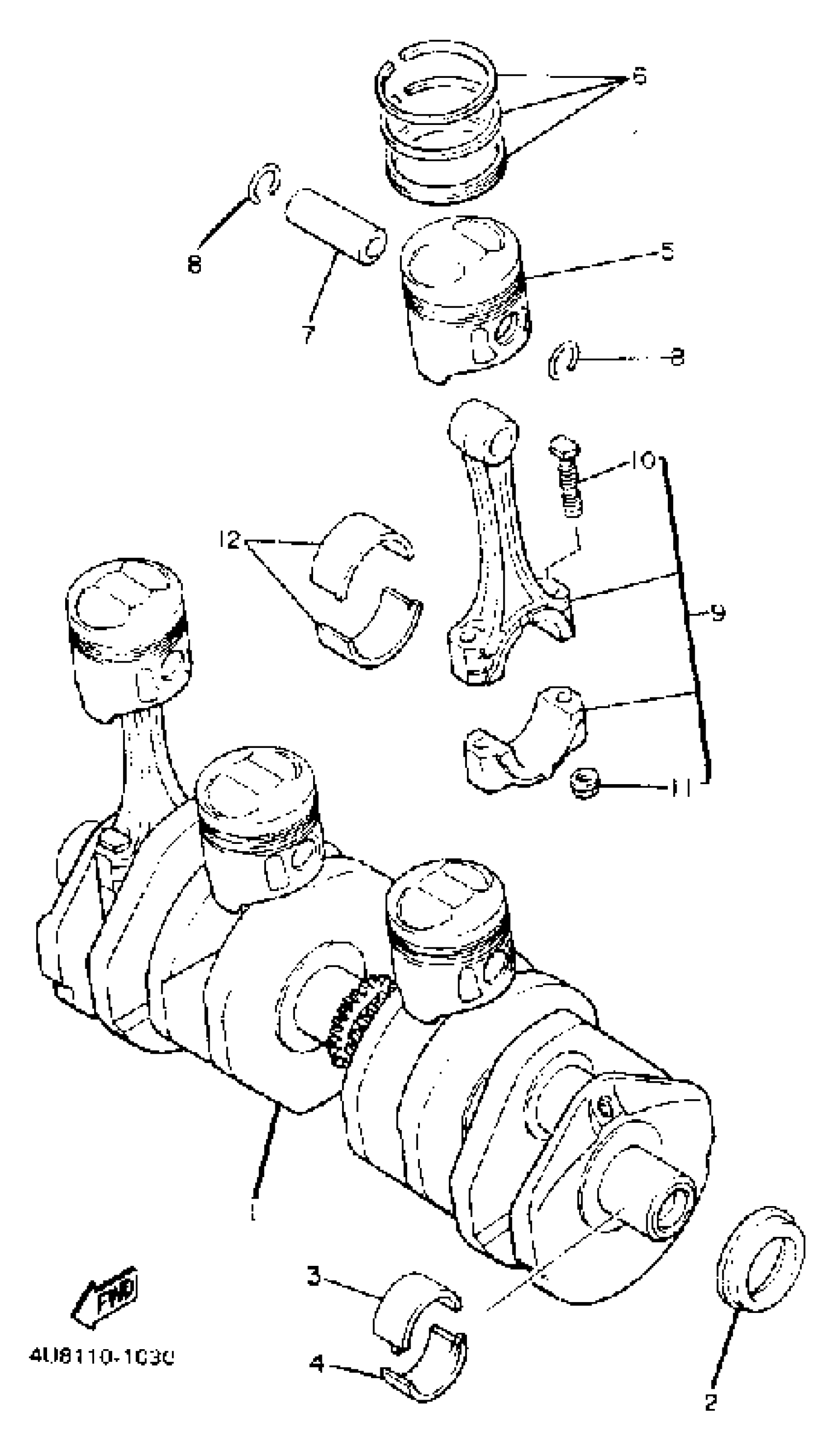

Yamaha XJ550RK (XJ550R) 1983 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

(4U8-11411-00-00)

Unavailable

2

OIL SEAL (32X45X6.5-2H7)

93101-32144-00

$24.99

3

PLANE BRNG,CRSF 1

49A-11416-00-00

Unavailable

3

PLANE BRNG,CRSF 1

49A-11416-10-00

Unavailable

3

PLANE BRNG,CRSF 1

49A-11416-20-00

Unavailable

3

PLANE BRNG, CRSF 1

4G0-11416-30-00

Unavailable

3

PLANE BRNG, CRSF 1

(4G0-11416-40-00)

Unavailable

4

PLANE BRNG, CRSF 3

4U8-11418-00-00

Unavailable

4

PLANE BRNG,CRSF 1

49A-11416-10-00

Unavailable

4

PLANE BRNG,CRSF 1

49A-11416-20-00

Unavailable

4

PLANE BRNG, CRSF 3

4U8-11418-30-00

Unavailable

4

PLANE BRNG, CRSF 3

4U8-11418-40-00

Unavailable

5

PISTON STD

4U8-11631-00-00

Unavailable

5

PISTON 2 O/S 0.50

4U8-11636-00-00

Unavailable

5

PISTON 4 O/S 1.00

(4U8-11638-00-00)

Unavailable

6

PISTON RING SET (STD)

4GA-11603-00-00

Unavailable

6

PISTON RING SET (1.00MM O/S)

4GA-11607-00-00

Unavailable

6

PISTON RINGSET 2ND

(4U8-11610-20-00)

Unavailable

7

PIN, PISTON

49A-11633-00-00

Unavailable

8

CIRCLIP (4G0)

93450-16068-00

Unavailable

9

CONNECTING ROD ASSEMBLY

4U8-Y1165-00-00

Unavailable

10

BOLT, CONNECTING ROD

4H7-11654-00-00

Unavailable

11

NUT (4H7)

90179-07307-00

Unavailable

12

PLANE BRNG, CON ROD

4U8-11656-00-00

Unavailable

12

PLANE BRNG, CON ROD

4U8-11656-10-00

Unavailable

12

PLANE BRNG, CON ROD

4U8-11656-20-00

Unavailable

12

PLANE BRNG, CON ROD

4U8-11656-30-00

Unavailable
