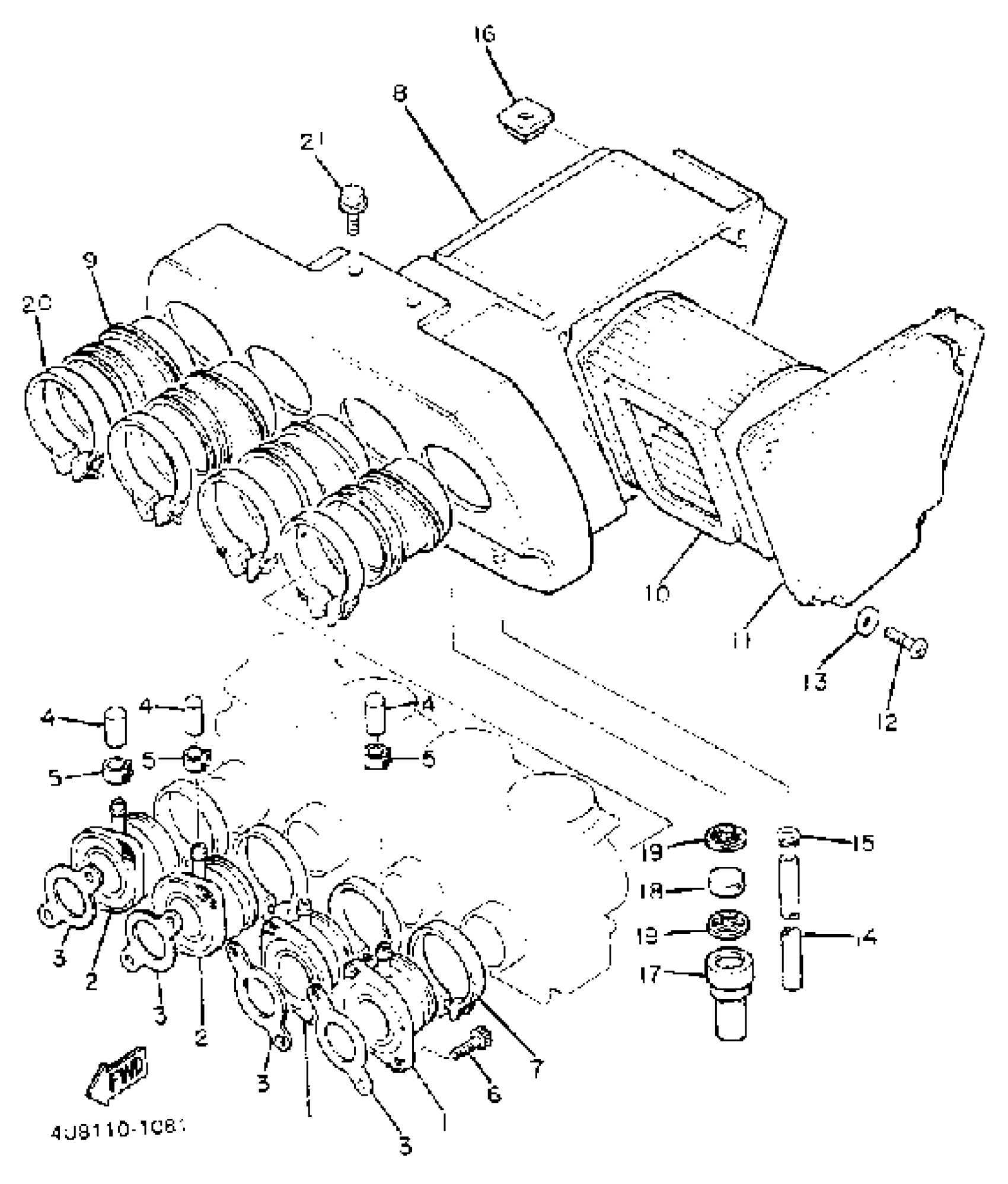

Yamaha XJ550RK (XJ550R) 1983 AIR FILTER Diagram

JOINT, CARBURETOR

4G0-13586-02-00

Unavailable

JOINT, CARBURETOR

4G0-13596-02-00

$122.99

GASKET

33M-13556-10-00

$4.58

UNAVAILABLE IN PRICE BOOK (1J7-13569-00)

15G-13569-00-00

Unavailable

CLIP (3G0)

90467-10039-00

$9.49

BOLT,SOCKET

91317-06020-00

Unavailable

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

AIR CLNR CASE ASSEMBLY

4U8-14401-00-00

Unavailable

JOINT, AIR CLEANER 1

4G0-14453-00-00

Unavailable

ELEMENT, AIR CLEANER

4U8-14451-00-00

$49.99

CAP, CLEANER CASE 1

4U8-14412-00-00

Unavailable

SCREW, PAN HEAD(4MY)

98507-05025-00

$8.49

WASHER(1RW)

92907-05600-00

$3.78

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

CLIP

90467-090A2-00

$4.41

PLATE, CLNR CS FTNG

4H7-14484-00-00

Unavailable

PIPE, SUCTION 1

(4U8-14423-00-00)

Unavailable

SEAL

36Y-14462-00-00

Unavailable

GUIDE

(4U8-14473-00-00)

Unavailable

HOSE CLAMP ASSY

90450-56001-00

Unavailable

BOLT, WITH WASHER (4L6)

90119-06029-00

Unavailable
