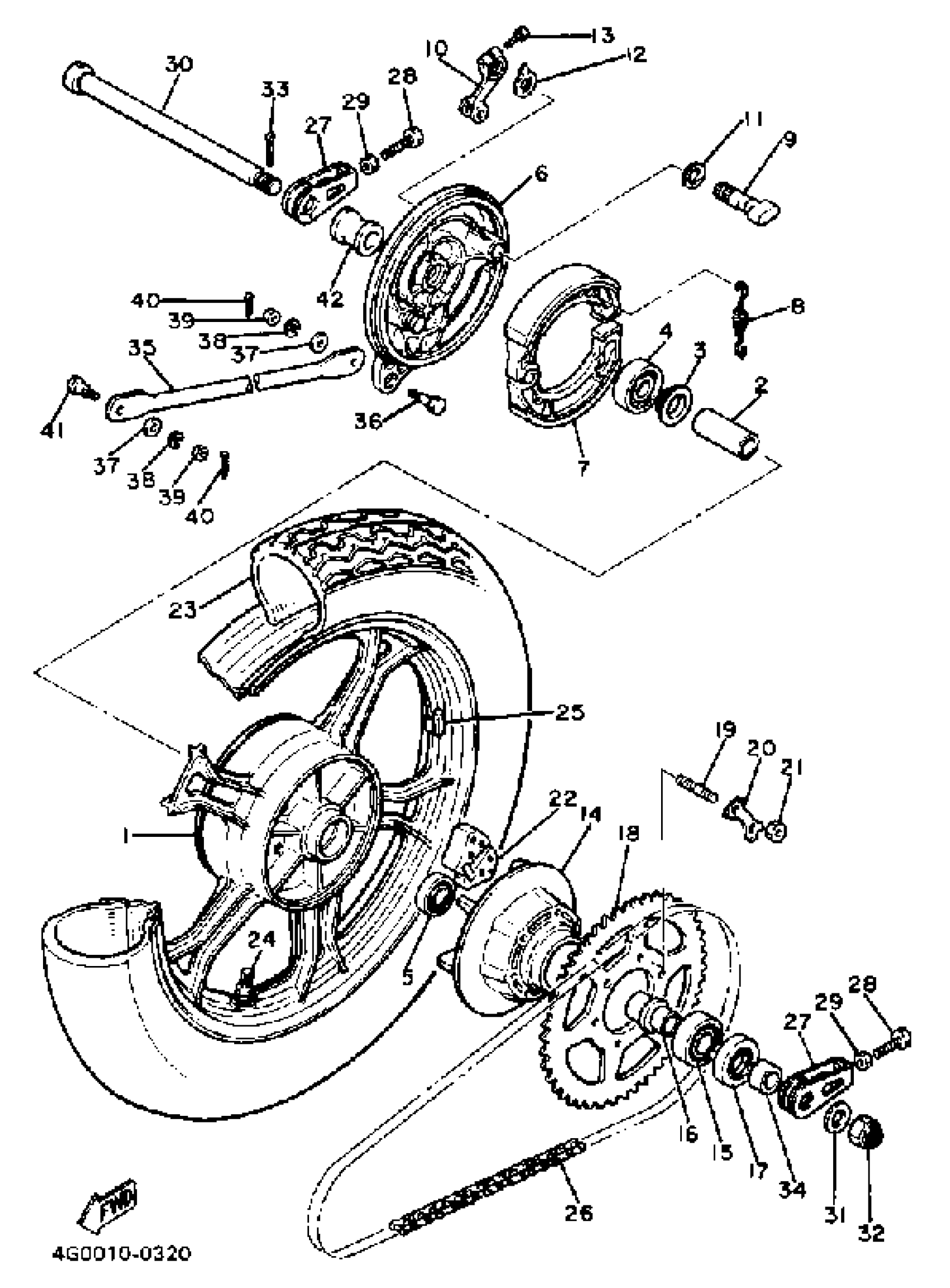

Yamaha XJ550RJ (XJ550R) 1982 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

4U8-25338-29-00

Unavailable

2

SPACER

90560-17125-00

Unavailable

3

FLANGE, SPACER

146-25315-00-00

$7.99

4

BEARING(4HM)

93306-30317-00

$39.99

5

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

6

PLATE, BRAKE SHOE

4G0-25321-00-38

Unavailable

7

BRAKE SHOE KIT

1HX-W253E-00-00

$36.99

8

SPRING, TENSION 2462533300

90507-20002-00

$8.49

9

CAMSHAFT

4R4-25351-00-00

Unavailable

10

LEVER, CAMSHAFT

371-25355-02-00

Unavailable

11

SHIM, CAM SHAFT

148-25353-00-00

$6.99

12

PLATE

3Y6-2533A-01-00

$5.49

13

BOLT, HEXAGON (462)

90101-06291-00

$8.49

14

CLUTCH, HUB

(4G0-25366-00-00)

Unavailable

15

BEARING(3BC)

93306-30437-00

$66.99

16

COLLAR

90387-176A0-00

Unavailable

17

OIL SEAL(3BC)

93106-30029-00

Unavailable

18

SPROCKET, DRVN 45T

5K5-25445-20-00

Unavailable

19

UNAVAILABLE IN PRICE BOOK

90911-61034-80

Unavailable

20

WASHER

4G0-25412-00-00

Unavailable

21

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

22

DAMPER

4G0-25364-00-00

Unavailable

23

061H 110/90-18S716

94111-18448-00

Unavailable

24

VALVE, RIM (31A)

93900-00031-00

Unavailable

25

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

25

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

25

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

26

CHAIN 50HDS-104L

94580-05104-00

Unavailable

27

PULLER, CHAIN 2

4G0-25389-00-00

Unavailable

28

BOLT

90101-08060-00

Unavailable

29

. NUT

95380-08700-00

Unavailable

30

AXLE, WHEEL

4G0-25381-00-00

Unavailable

31

WASHER, PLAIN

92990-14200-00

Unavailable

32

NUT, CASTLE (4V7)

90171-14031-00

Unavailable

33

PIN, COTTER

91490-30030-00

Unavailable

34

COLLAR

90387-175A9-00

Unavailable

35

BAR, TENSION

4G0-25371-00-00

Unavailable

36

BOLT (537 TENSION BAR)

90109-08406-00

Unavailable

37

.. WASHER, PLATE

92990-08600-00

Unavailable

38

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

39

. NUT

95380-08700-00

Unavailable

40

PIN, COTTER

91490-20025-00

Unavailable

41

BOLT (183-25378-00)

90109-08368-00

Unavailable

42

COLLAR, WHEEL

148-25383-00-00

Unavailable
