Description

Price

1

HANDLEBAR

2L0-26111-00-00

Unavailable

2

GRIP LH

2H7-26241-01-00

$11.99

3

GRIP ASSY

2H7-26240-01-00

$18.49

4

COLLAR (2H7)

90387-22660-00

$9.49

5

CABLE, THROTTLE 1

4U8-26311-00-00

Unavailable

6

HOLDER,

584-26393-02-00

Unavailable

7

CABLE, CLUTCH

4U8-26335-00-00

Unavailable

8

BOOT, WIRE

1E6-26342-00-00

$30.99

9

COVER, LEVER

1E6-26372-00-00

$23.99

10

NUT

90179-08030-00

$5.49

11

BOLT

90123-08002-00

$10.49

12

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

$20.99

13

BAND

341-26397-01-00

Unavailable

14

CABLE, STARTER 1

20X-26331-00-00

Unavailable

15

REAR VIEW MIRROR ASSY (RIGHT)

4H7-26290-50-00

$143.99

16

REAR VIEW MIRROR ASSY(LEFT)

4H7-26290-20-00

Unavailable

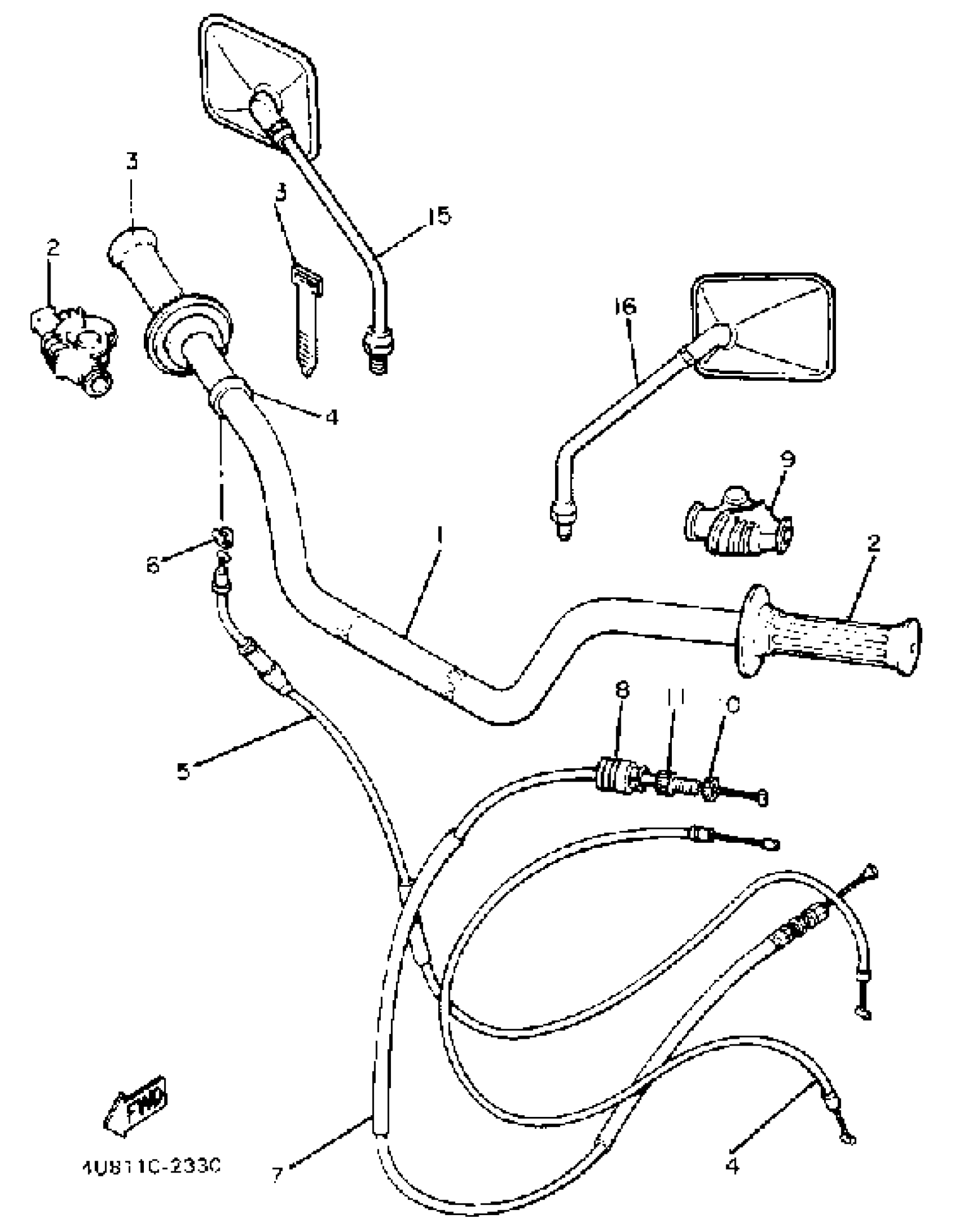

Yamaha XJ550RJ (XJ550R) 1982 HANDLEBAR CABLE Diagram

HANDLEBAR

GRIP LH

GRIP ASSY

COLLAR (2H7)

CABLE, THROTTLE 1

HOLDER,

CABLE, CLUTCH

BOOT, WIRE

COVER, LEVER

NUT

BOLT

COVER, HANDLE LEVER (R.H)

BAND

CABLE, STARTER 1

REAR VIEW MIRROR ASSY (RIGHT)

REAR VIEW MIRROR ASSY(LEFT)
