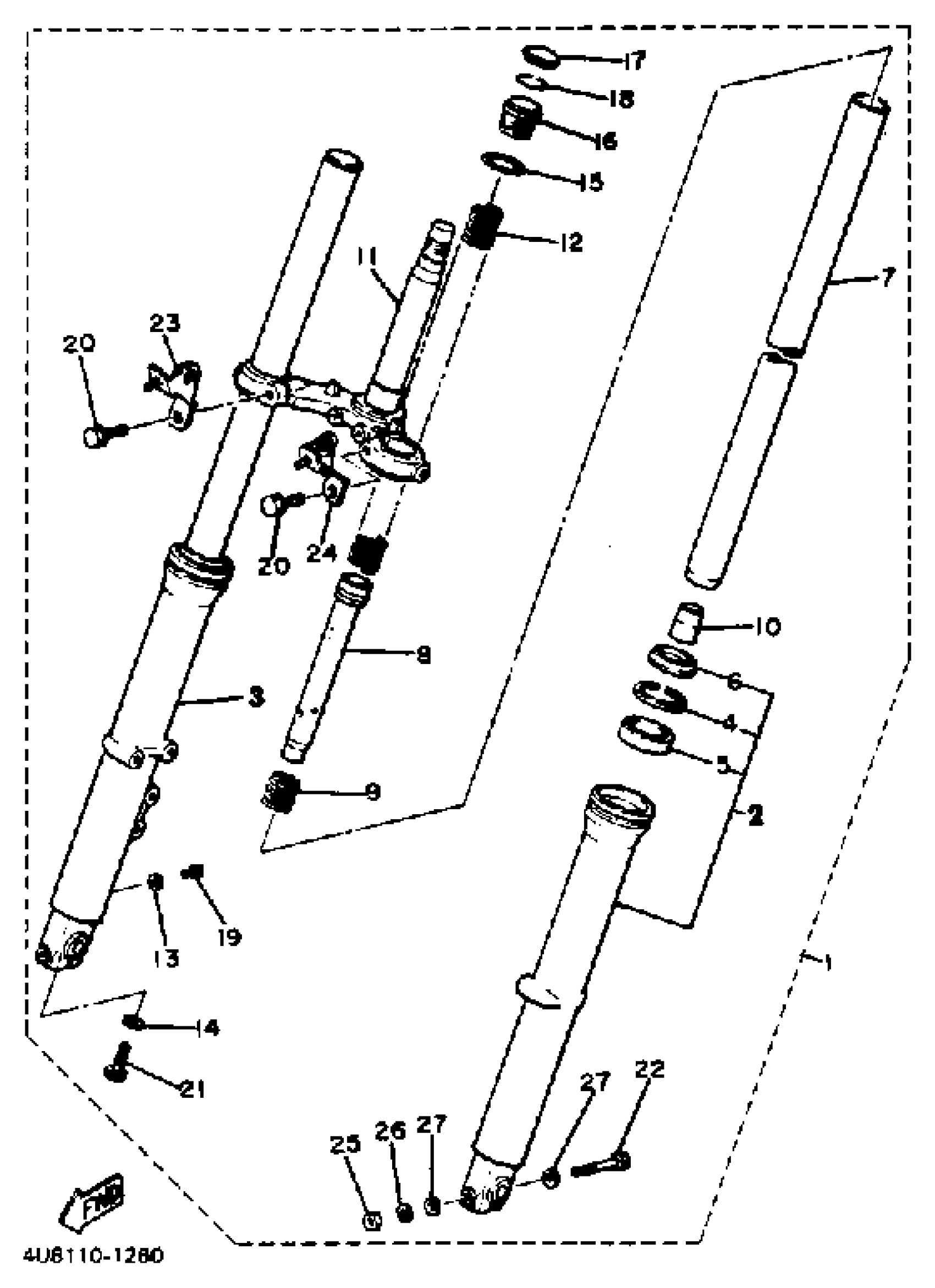

Yamaha XJ550RJ (XJ550R) 1982 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(4U8-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(4U8-23126-00-33)

Unavailable

3

. TUBE, OUTER 2

4U8-23136-00-33

Unavailable

4

RING, SNAP

4A1-23156-00-00

$5.49

5

OIL SEAL

4G0-23145-00-00

Unavailable

6

SEAL, DUST

4G0-23144-01-00

Unavailable

7

. INNER TUBE 1

5F8-23110-00-00

Unavailable

8

CYLINDER, FRTFRK

(5F8-23170-00-00)

Unavailable

9

.. SPRING, REBOUND

509-23151-L0-00

Unavailable

10

TAPER SPINDLE

1W1-23173-L0-00

$31.99

11

. UNDER BRACKET

5F8-23340-00-33

Unavailable

12

SPRING, FRONT FORK

(4U8-23141-00-00)

Unavailable

13

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

14

GASKET

509-23158-L0-00

$16.49

15

O-RING

3J2-23114-00-00

$8.99

16

. BOLT, CAP

3Y1-23111-00-00

Unavailable

17

. CAP, FRONT FORK

3Y1-23168-00-00

Unavailable

18

RING, SNAP

3J2-23183-00-00

Unavailable

19

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

20

. BOLT 1

4G0-23346-00-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

22

BOLT, HEXAGON

97017-08060-00

Unavailable

23

BRACKET, HORN

(4G0-23378-00-00)

Unavailable

24

. BRACKET, HORN

4G0-23377-00-00

Unavailable

25

NUT(6TA)

95337-08600-00

Unavailable

26

WASHER(JN5)

92907-08100-00

Unavailable

27

WASHER(6TA)

92907-08600-00

Unavailable
