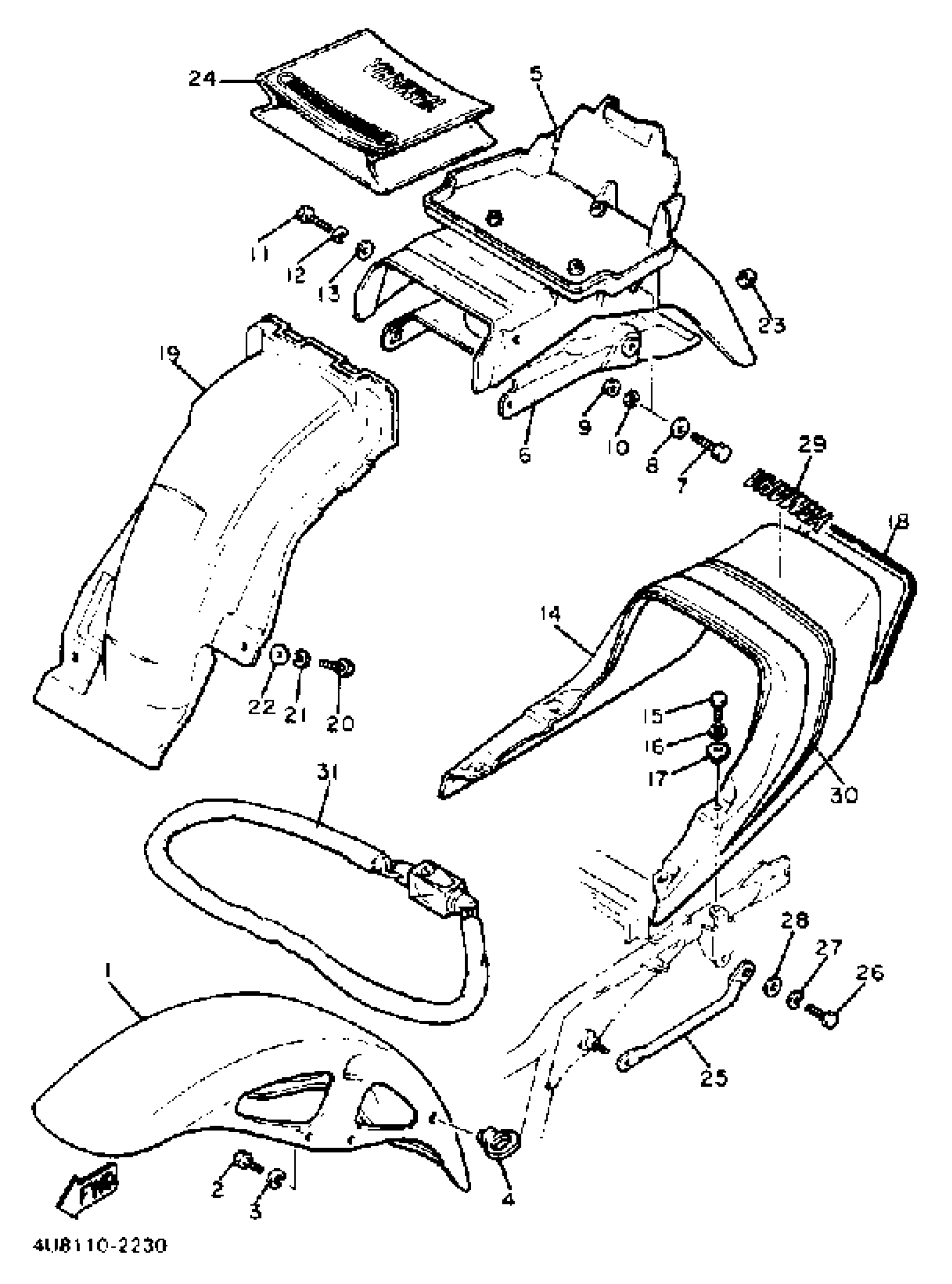

Yamaha XJ550RJ (XJ550R) 1982 FENDER Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

4K0-21510-00-T5

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

4G0-21610-00-00

Unavailable

6

REINFORCEMENT

4G0-21670-00-00

Unavailable

7

BOLT, HEXAGON

97017-08025-00

$10.49

8

.. WASHER, PLATE

92990-08600-00

Unavailable

9

NUT(6L2)

95333-08600-00

$2.49

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLAIN (646)

92990-06600-00

$2.80

14

COVER, REAR FENDER

4G0-21651-00-T5

Unavailable

15

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

16

WASHER, SPRING

92995-06100-00

Unavailable

17

COLLAR (899 INTAKE)

90387-06500-00

Unavailable

18

PROTECTOR

4G0-21652-00-00

Unavailable

19

GUARD, MUD

4G0-21629-00-00

Unavailable

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLATE

90201-06380-00

Unavailable

23

PLUG

90338-07018-00

Unavailable

24

BOX

4G0-2177A-00-00

Unavailable

25

HANDLE, STANDING

4G0-21165-00-00

Unavailable

26

BOLT, HEXAGON

97013-08020-00

$1.16

27

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

28

.. WASHER, PLATE

92990-08600-00

Unavailable

29

EMBLEM, YAMAHA

99245-00100-00

Unavailable

30

GRAPHIC, TAILCOVER

4U8-21663-20-00

Unavailable

31

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

Unavailable
