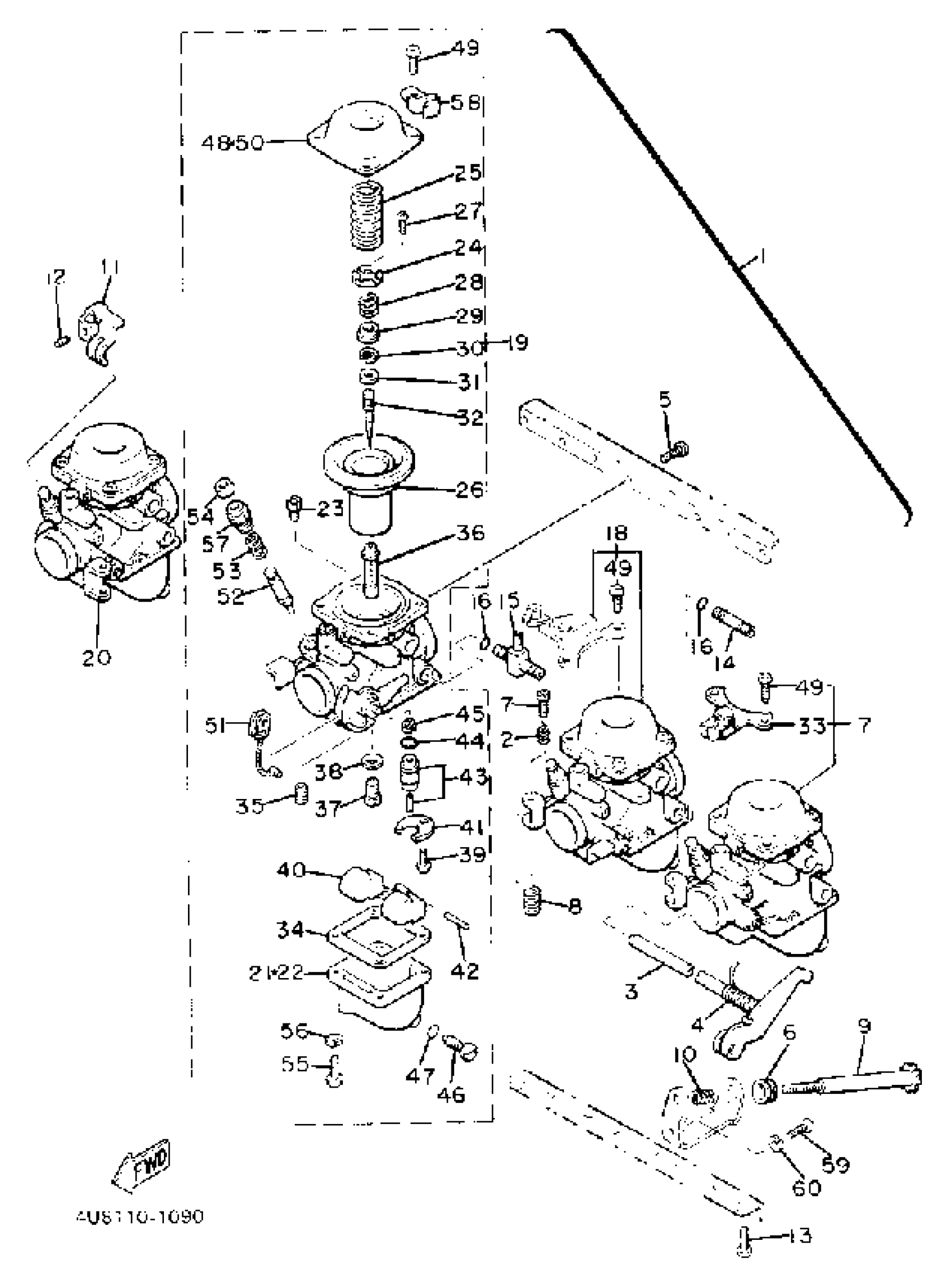

Yamaha XJ550RJ (XJ550R) 1982 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY

(4U8-14900-00-00)

Unavailable

2

. SPRING, THROTTLE STOP

3F7-14133-00-00

Unavailable

3

LEVER, STARTER 1

(4G0-14975-00-00)

Unavailable

4

SPRING

(4G0-14938-00-00)

Unavailable

5

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

6

. BUSH

4G0-14998-00-00

Unavailable

7

STOP SCREW SET

(31A-1490K-00-00)

Unavailable

8

. SPRING, AIR ADJUSTING

137-14134-00-00

Unavailable

9

. THROTTLE SCREW SET

31A-14103-00-00

Unavailable

10

. SPRING, THROTTLE STOP

143-14133-00-00

Unavailable

11

. LEVER, STARTER

4G0-14905-00-00

Unavailable

12

. SCREW, STARTER LEVER 2

584-14991-00-00

Unavailable

13

SCREW, PAN

98507-06014-00

$8.49

14

. PIPE, STARTER CON

4G0-14988-00-00

Unavailable

15

PIPE, STARTER CONNECTING

4U8-14988-00-00

Unavailable

16

O-RING

36Y-14147-00-00

Unavailable

17

CARBURETOR ASSEMBLY 1

(4U8-14901-00-00)

Unavailable

18

CARBURETOR ASSEMBLY 2

(4U8-14902-00-00)

Unavailable

19

CARBURETOR ASSEMBLY 3

(4U8-14903-00-00)

Unavailable

20

CARBURETOR ASSEMBLY 4

(4U8-14904-00-00)

Unavailable

21

.. BODY, FLOAT CHAMBER

4G0-14981-07-00

Unavailable

22

HOLDER

(4G0-14982-07-00)

Unavailable

23

JET, MAIN (#170)

3G2-14231-34-00

Unavailable

24

SEAT, SPRING

(4U8-14936-00-00)

Unavailable

25

.. SPRING, DIAPHRAGM

4U8-14933-00-00

Unavailable

26

DIAPHRAGM ASSY

4G0-14940-00-00

Unavailable

27

SCREW, PAN HEAD

(97802-03008-00)

Unavailable

28

SPRING, NEEDLE

3F7-14589-00-00

Unavailable

29

. WASHER

2N6-14227-01-00

Unavailable

30

CLIP

3FA-14137-00-00

Unavailable

31

. RING

2N6-14918-01-00

Unavailable

32

.. NEEDLE

443-14116-11-00

Unavailable

33

.. BRACKET, THROTTLE 1

4G0-14926-00-00

Unavailable

34

GASKET, FLOAT CHAMBER

46X-14984-00-00

Unavailable

35

JET, PILOT (# 35)

4G0-14142-35-A0

Unavailable

36

NOZZLE, MAIN

(4U8-14941-38-00)

Unavailable

37

JET,MAIN #112.5

620-1423A-73-00

Unavailable

38

WASHER,MAIN JET

137-14153-00-00

Unavailable

39

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

40

FLOAT

4G0-14985-00-00

Unavailable

41

. PLATE

2H0-14146-00-00

Unavailable

42

PIN, FLOAT

537-14186-00-00

Unavailable

43

NEEDLE VALVE SET

25G-14107-20-00

Unavailable

44

O-RING

8F2-14147-00-00

Unavailable

45

NET, FILTER

1J7-14994-00-00

Unavailable

46

SCREW

2L1-14191-00-00

Unavailable

47

O-RING

214-14147-00-00

Unavailable

48

.. COVER, DIAPHRAGM

4G0-14958-00-00

Unavailable

49

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

50

.. COVER, DIAPHRAGM

4U8-14958-00-00

Unavailable

51

. CABLE

4G0-14130-00-00

Unavailable

52

. PLUNGER, STARTER

4G0-14171-00-00

Unavailable

53

. SPRING, PLUNGER

256-14135-00-00

Unavailable

54

.. COVER, PLUNGER CAP

306-14173-00-00

Unavailable

55

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

56

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

57

.. CAP, PLUNGER

584-14176-00-00

Unavailable

58

CLIP, PIPE

(4G0-14139-00-00)

Unavailable

59

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

60

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable
