Description

Price

1

JOINT, CARBURETOR

4G0-13586-02-00

Unavailable

2

JOINT, CARBURETOR

4G0-13596-02-00

$122.99

3

GASKET

33M-13556-10-00

$4.58

4

PLUG, BLIND

16G-13569-00-00

$7.99

5

CLIP (3G0)

90467-10039-00

$9.49

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

8

AIR CLNR CASE ASSEMBLY

4U8-14401-00-00

Unavailable

9

JOINT, AIR CLEANER 1

4G0-14453-00-00

Unavailable

10

ELEMENT, AIR CLEANER

4U8-14451-00-00

$49.99

11

CAP, CLEANER CASE 1

4U8-14412-00-00

Unavailable

12

SCREW, PAN HEAD(4MY)

98507-05025-00

$8.49

13

WASHER(1RW)

92907-05600-00

$3.78

14

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

15

CLIP

90467-090A2-00

$4.41

16

PLATE, CLNR CS FTNG

4H7-14484-00-00

Unavailable

17

PIPE, SUCTION 1

(4U8-14423-00-00)

Unavailable

18

SEAL

36Y-14462-00-00

Unavailable

19

GUIDE

(4U8-14473-00-00)

Unavailable

20

HOSE CLAMP ASSY

90450-56001-00

Unavailable

21

BOLT, WITH WASHER (4L6)

90119-06029-00

Unavailable

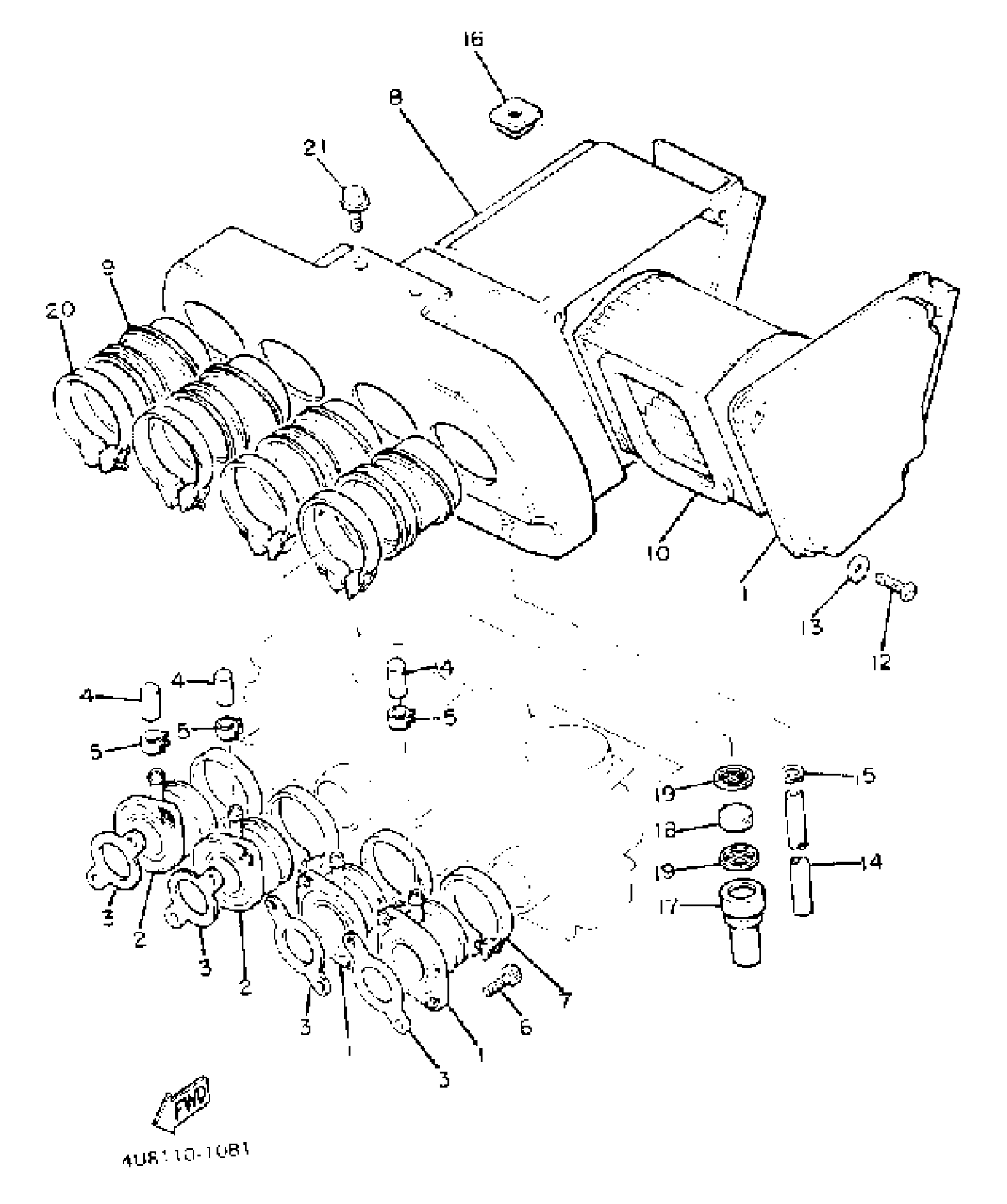

Yamaha XJ550RJ (XJ550R) 1982 AIR FILTER Diagram

JOINT, CARBURETOR

JOINT, CARBURETOR

GASKET

PLUG, BLIND

CLIP (3G0)

BOLT,SOCKET

CLAMP, HOSE (5H0)

AIR CLNR CASE ASSEMBLY

JOINT, AIR CLEANER 1

ELEMENT, AIR CLEANER

CAP, CLEANER CASE 1

SCREW, PAN HEAD(4MY)

WASHER(1RW)

TUBE, FLEXIBLE(3NV)

CLIP

PLATE, CLNR CS FTNG

PIPE, SUCTION 1

SEAL

GUIDE

HOSE CLAMP ASSY

BOLT, WITH WASHER (4L6)
