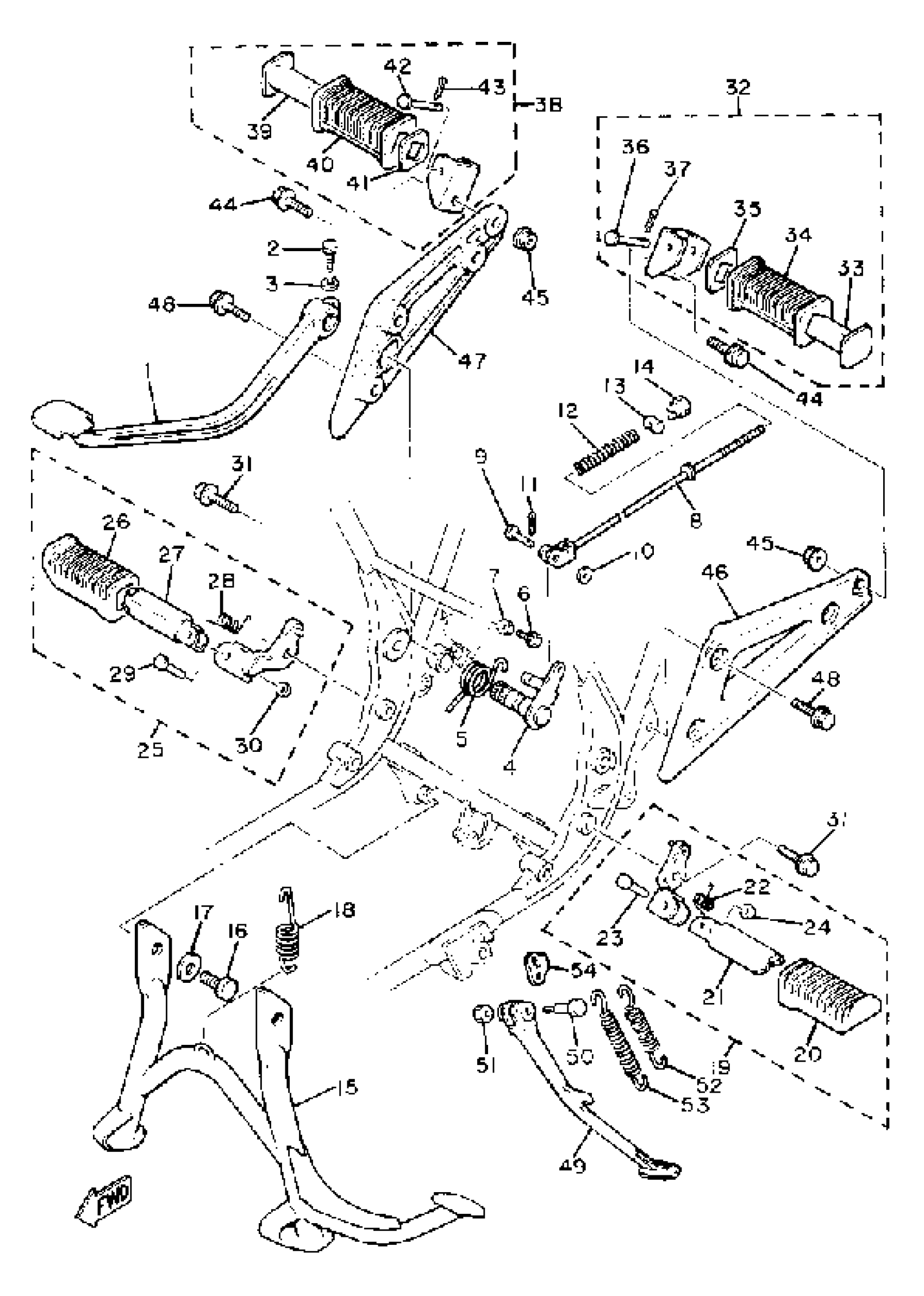

Yamaha XJ550RH (XJ550R) 1981 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

4G0-27211-00-00

Unavailable

2

BOLT (1J7)

90109-06468-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SHAFT, BRAKE PEDAL

4G0-27212-00-00

Unavailable

5

SPRING, TORSION

90508-40364-00

Unavailable

6

SCREW 341272170000

90153-06008-00

$7.49

7

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

8

ROD, BRAKE

4G0-27231-00-00

Unavailable

9

PIN, CLEVIS (24X)

90240-06103-00

$7.49

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

11

PIN, COTTER

91490-20025-00

$1.99

12

SPRING, (180-27236-00)

90501-10245-00

$8.49

13

PIN 1562723700

90249-12008-00

$8.49

14

NUT (25K)

90179-06411-00

$8.49

15

STAND, MAIN

4G0-27111-00-R4

Unavailable

16

BOLT,HEXAGON

97017-10016-00

Unavailable

17

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

18

SPRING, TENSION

90506-40251-00

Unavailable

19

FRT FOOTREST ASSEMBLY L

4G0-27410-00-R4

Unavailable

20

COVER, FOOTREST

4L0-27423-00-00

Unavailable

21

FOOTREST

3CK-27451-00-00

Unavailable

22

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

23

PIN (214-27418-00)

90243-08006-00

Unavailable

24

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

25

FRT FOOTREST ASSEMBLY R

4G0-27420-00-R4

Unavailable

26

COVER, FOOTREST

4L0-27423-00-00

Unavailable

27

FOOTREST

3N6-27461-00-00

Unavailable

28

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

29

PIN (214-27418-00)

90243-08006-00

Unavailable

30

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

31

BOLT, FLANGE(JN5)

95817-12030-00

Unavailable

32

RR FOOTREST ASY 1

4G0-27430-00-00

Unavailable

33

FOOTREST, REAR 1

447-27431-00-00

Unavailable

34

COVER, REAR FOOTREST

447-27433-00-00

Unavailable

35

WASHER 447274370000

90209-18070-00

Unavailable

36

PIN, WITH HOLE (465)

90240-06042-00

Unavailable

37

PIN, COTTER

91490-16020-00

Unavailable

38

REAR FOOTREST ASS''Y 2

4G0-27440-00-00

Unavailable

39

FOOTREST, REAR 2

447-27441-00-00

Unavailable

40

COVER, REAR FOOTREST

447-27433-00-00

Unavailable

41

WASHER 447274370000

90209-18070-00

Unavailable

42

PIN, WITH HOLE (465)

90240-06042-00

Unavailable

43

PIN, COTTER

91490-16020-00

Unavailable

44

BOLT, FLANGE

95817-10030-00

Unavailable

45

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

46

BRACKET 2

4G0-27442-00-00

Unavailable

47

BRACKET 3

4G0-27443-00-00

Unavailable

48

BOLT, FLANGE

95817-10030-00

Unavailable

49

STAND, SIDE

4G0-27311-00-R4

Unavailable

50

BOLT

90109-10473-00

Unavailable

51

NUT (682)

95380-10700-00

Unavailable

52

SPRING, TENSION (4K0)

90506-18224-00

Unavailable

53

SPRING, TENSION (4K0)

90506-26225-00

Unavailable

54

LINK, SIDE STAND

3VD-27315-00-00

Unavailable
