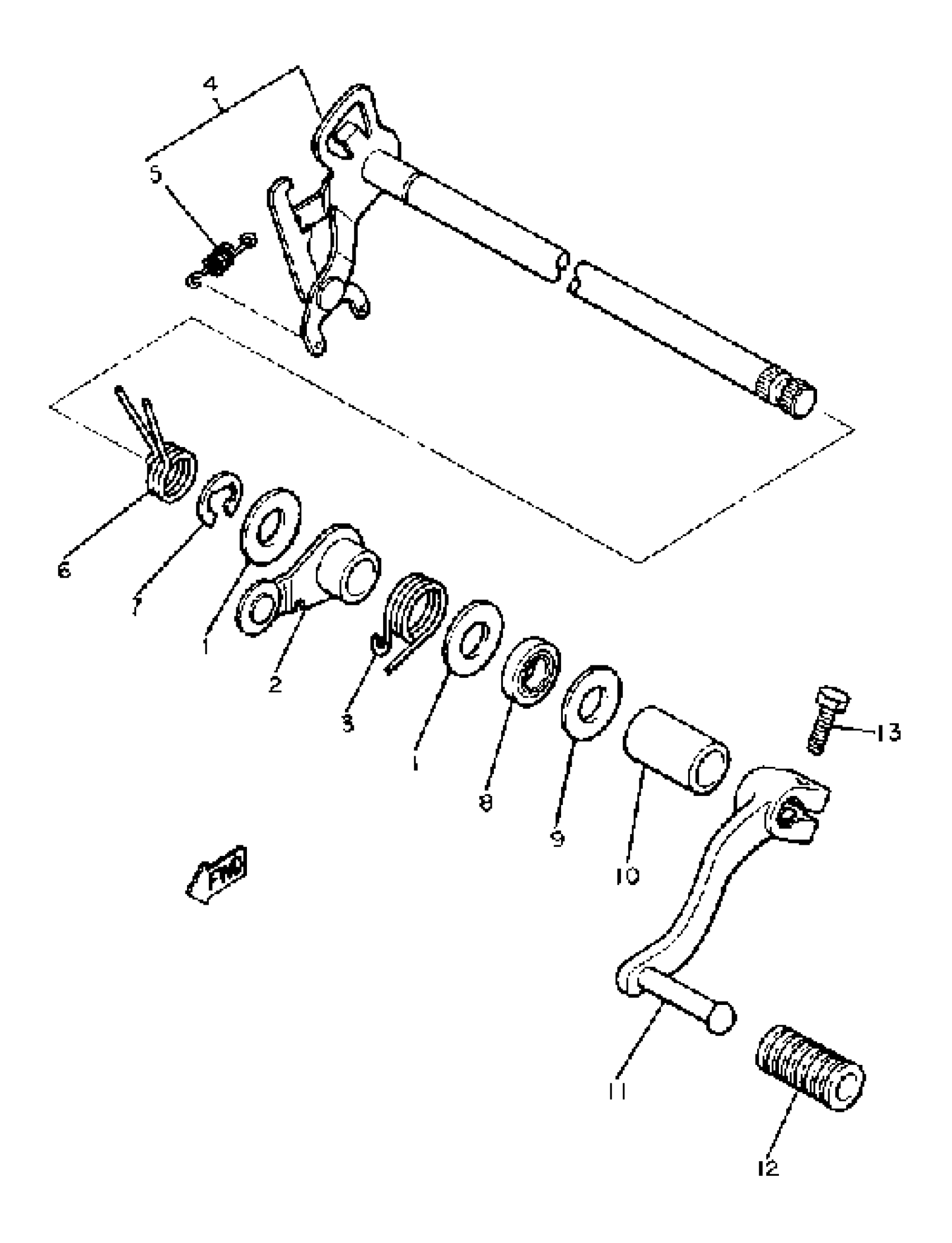

Yamaha XJ550RH (XJ550R) 1981 SHIFT SHAFT PEDAL Diagram

WASHER

90201-12588-00

$7.49

STOPPER LEVER ASSY

4G0-18140-00-00

Unavailable

SPRING, TORSION (90508-29473)

90508-29533-00

Unavailable

SHIFT LEVER ASSEMBLY

4G0-18120-01-00

Unavailable

SPRING, TENSION (4H7)

90506-08227-00

$4.19

COLLAR

90387-12033-00

$7.49

. SPRING, TORSION

90508-32534-00

Unavailable

SPRING W/ COLLAR (90508-32461)

99999-01178-00

Unavailable

CIRCLIP

99006-10600-00

$9.49

SEAL, OIL (30X)

93102-12321-00

$12.49

WASHER, PLATE (353)

90201-12575-00

$8.49

COLLAR (4G0)

90387-125A8-00

$3.61

PEDAL, SHIFT

5H0-18111-00-00

Unavailable

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

BOLT, HEXAGON

97017-06020-00

$4.06
