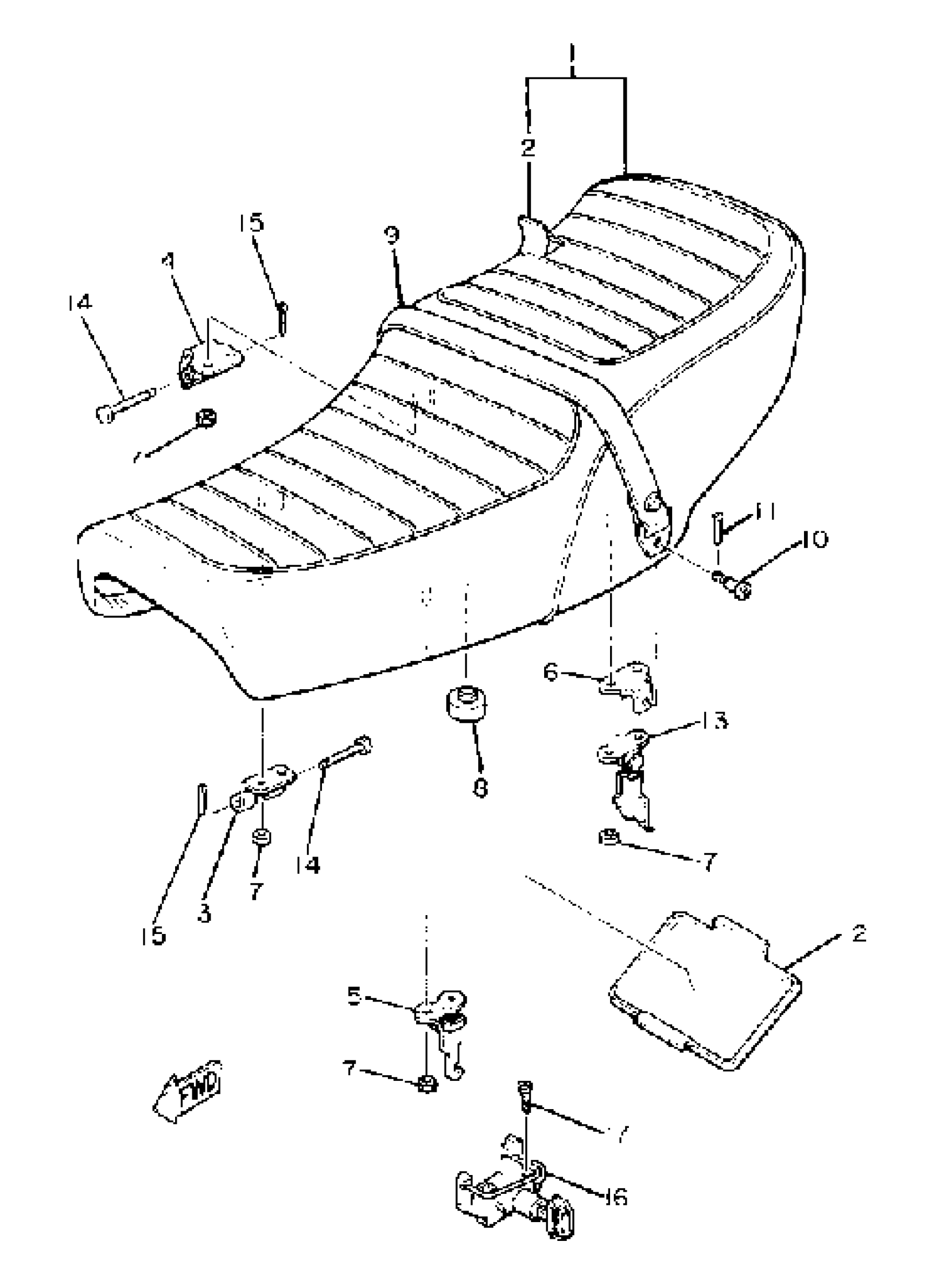

Yamaha XJ550RH (XJ550R) 1981 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

4G0-W2472-01-00

Unavailable

2

. COVER, DOUBLE SEAT

4G0-24731-00-00

Unavailable

3

HINGE, SEAT

(4G0-24769-00-00)

Unavailable

4

HINGE, SEAT 2

4G0-24779-00-00

Unavailable

5

BRACKET, SEAT

(4G0-24728-00-00)

Unavailable

6

BRACKET, SEAT

4G0-24718-01-00

Unavailable

7

NUT, FLANGE(7NB)

95780-06500-00

$2.60

8

DAMPER, SEAT

4G0-24723-00-00

Unavailable

9

BAND, SEAT

4G0-24734-00-00

Unavailable

10

BOLT, SEAT FITTING

2M1-24717-00-00

Unavailable

11

CLIP (156-83525-00)

90468-10050-00

$3.05

12

LID

395-28185-00-00

Unavailable

13

SEAT LEVER ASSEMBLY

(4G0-24760-00-00)

Unavailable

14

PIN, CLEVIS

91701-05055-00

$7.49

15

CLIP (156-83525-00)

90468-10050-00

$3.05

16

SEAT LOCK ASSEMBLY

4G0-24705-00-00

Unavailable

17

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable
