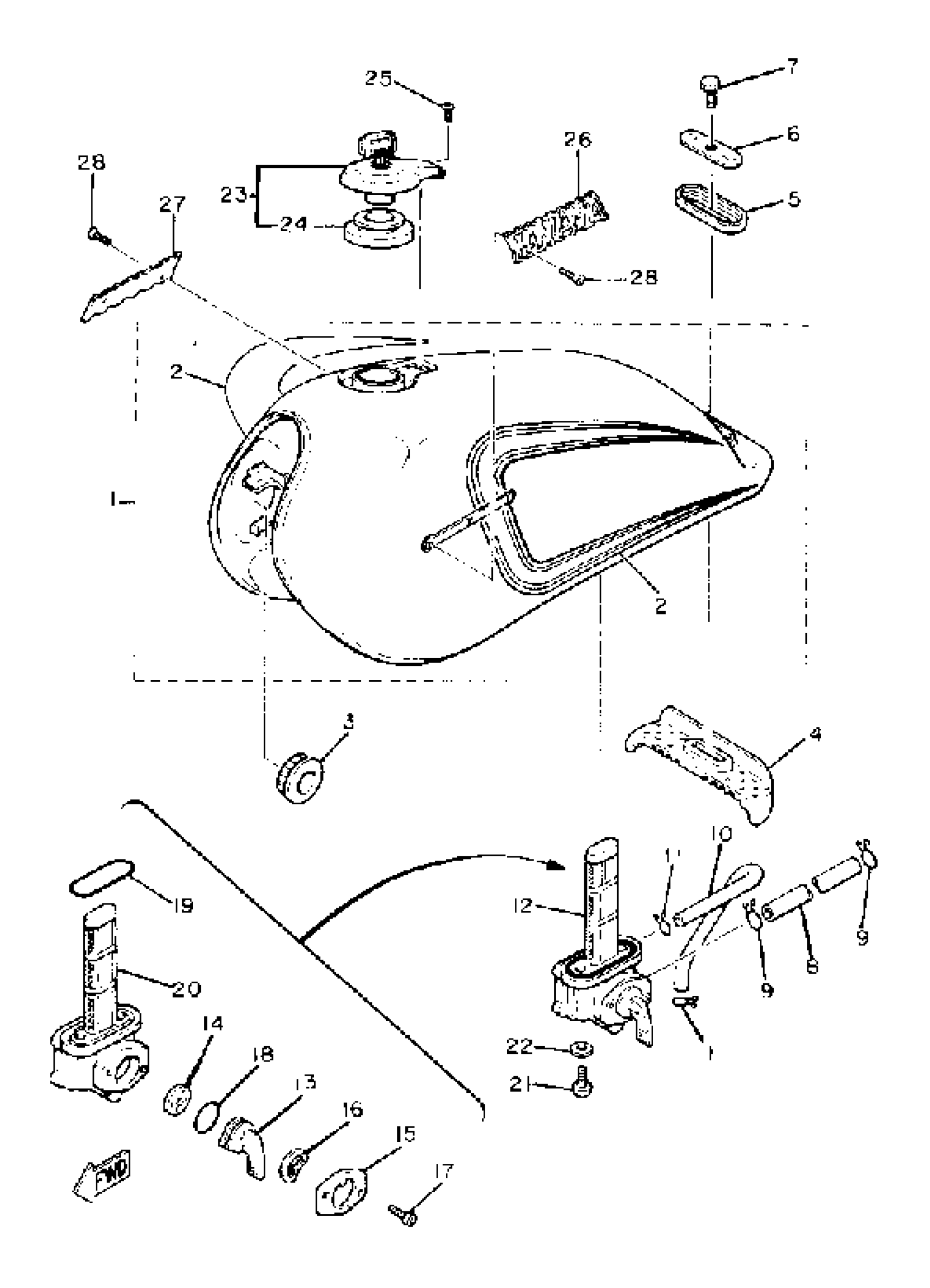

Yamaha XJ550RH (XJ550R) 1981 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

4G0-24110-00-09

Unavailable

2

GRAPHIC SET

(4U8-24240-00-00)

Unavailable

3

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

4

DAMPER, LOCATING 2

4G0-24182-00-00

Unavailable

5

DAMPER, LOCATING 3

4H7-24183-00-00

Unavailable

6

WASHER, SPECIAL

4H7-24186-00-00

Unavailable

7

BOLT(62E)

97013-08012-00

Unavailable

8

PIPE, FUEL 1

4G0-24311-00-00

Unavailable

9

CLIP

90467-100A1-00

$7.49

10

HOSE

90445-09531-00

Unavailable

11

CLIP 101235600

90467-08003-00

$10.49

12

FUEL COCK ASSY 1

3AL-24500-00-00

$140.99

13

. LEVER, COCK

4H7-24524-00-00

Unavailable

14

VALVE, FUEL COCK

3H3-24523-00-00

$31.99

15

. PLATE, LVR FITTING

4H7-24525-00-00

Unavailable

16

WASHER, WAVE

10L-24518-00-00

Unavailable

17

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

18

O-RING, FUEL COCK

3H3-24534-00-00

Unavailable

19

O-RING

2W6-24512-00-00

Unavailable

20

NET, FILTER 1

3Y1-24514-00-00

Unavailable

21

SCREW 256241430000

90149-06011-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

CAP ASSY

4X7-24602-10-00

Unavailable

24

GASKET, TANK CAP

4X7-24612-00-00

Unavailable

25

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

26

EMBLEM 1

4G0-24161-00-00

Unavailable

27

EMBLEM 2

4G0-24162-00-00

Unavailable

28

SCREW (2F0)

90152-04006-00

Unavailable
