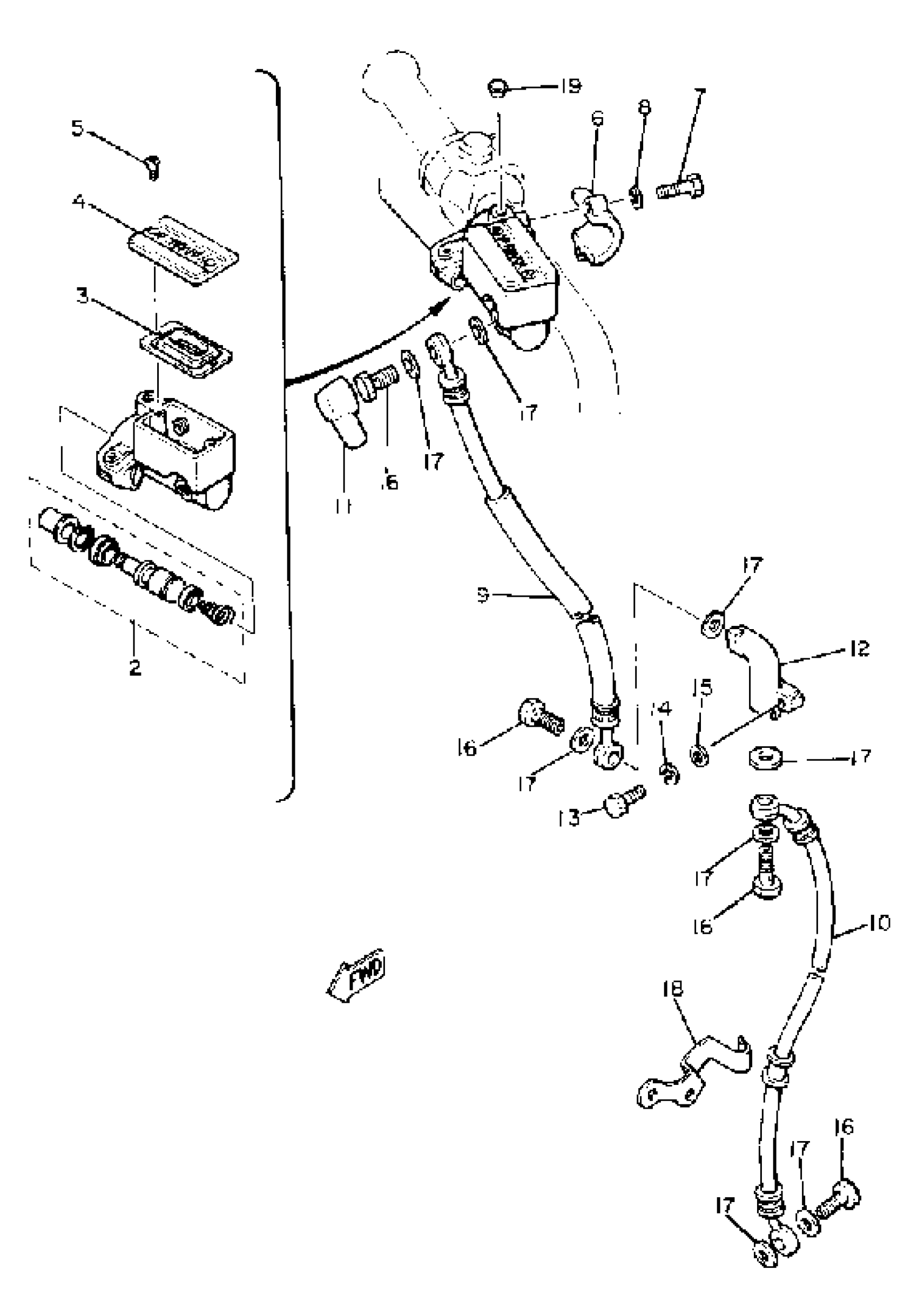

Yamaha XJ550RH (XJ550R) 1981 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

3TB-25870-00-00

$268.99

2

CYLINDER KIT, MASTER

23L-W0041-00-00

$123.99

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

4

CAP, RESERVOIR

4H7-25852-00-00

$39.99

5

SCREW, FLAT

98707-04010-00

$8.49

6

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92907-06100-00

$4.25

9

HOSE, BRAKE 1

4U8-25872-00-00

Unavailable

10

HOSE, BRAKE 2

4U8-25873-00-00

Unavailable

11

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

12

JOINT

1J7-25885-01-00

Unavailable

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

BOLT, UNION(3GM)

90401-10159-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

HOLDER, BRKE HOSE 2

4E2-25876-00-00

Unavailable

19

PLUG (341-26329-00)

90338-09012-00

Unavailable
