Description

Price

1

DISC, BRAKE

2H7-25831-00-00

Unavailable

2

WASHER, LOCK

1J3-25834-01-00

$6.99

3

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

4

CALIPER ASSY RIGHT

23W-25810-02-00

Unavailable

5

.. PISTON ASSEMBLY, CALIPER

4L0-W0057-00-00

Unavailable

6

SEAL KIT

4L0-W0047-01-00

$44.99

7

BRAKE PAD KIT

23W-W0045-02-00

Unavailable

8

PIN, SLIDE

(4L0-25914-00-00)

Unavailable

9

PIN, COTTER (648)

91490-20015-00

$2.20

10

RETAINER

(4L0-25913-00-00)

Unavailable

11

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

12

SHIM, CALIPER

(4L0-25828-00-01)

Unavailable

12

SHIM, CALIPER

(4L0-25828-00-02)

Unavailable

12

SHIM, CALIPER

(4L0-25828-00-03)

Unavailable

13

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

14

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

15

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

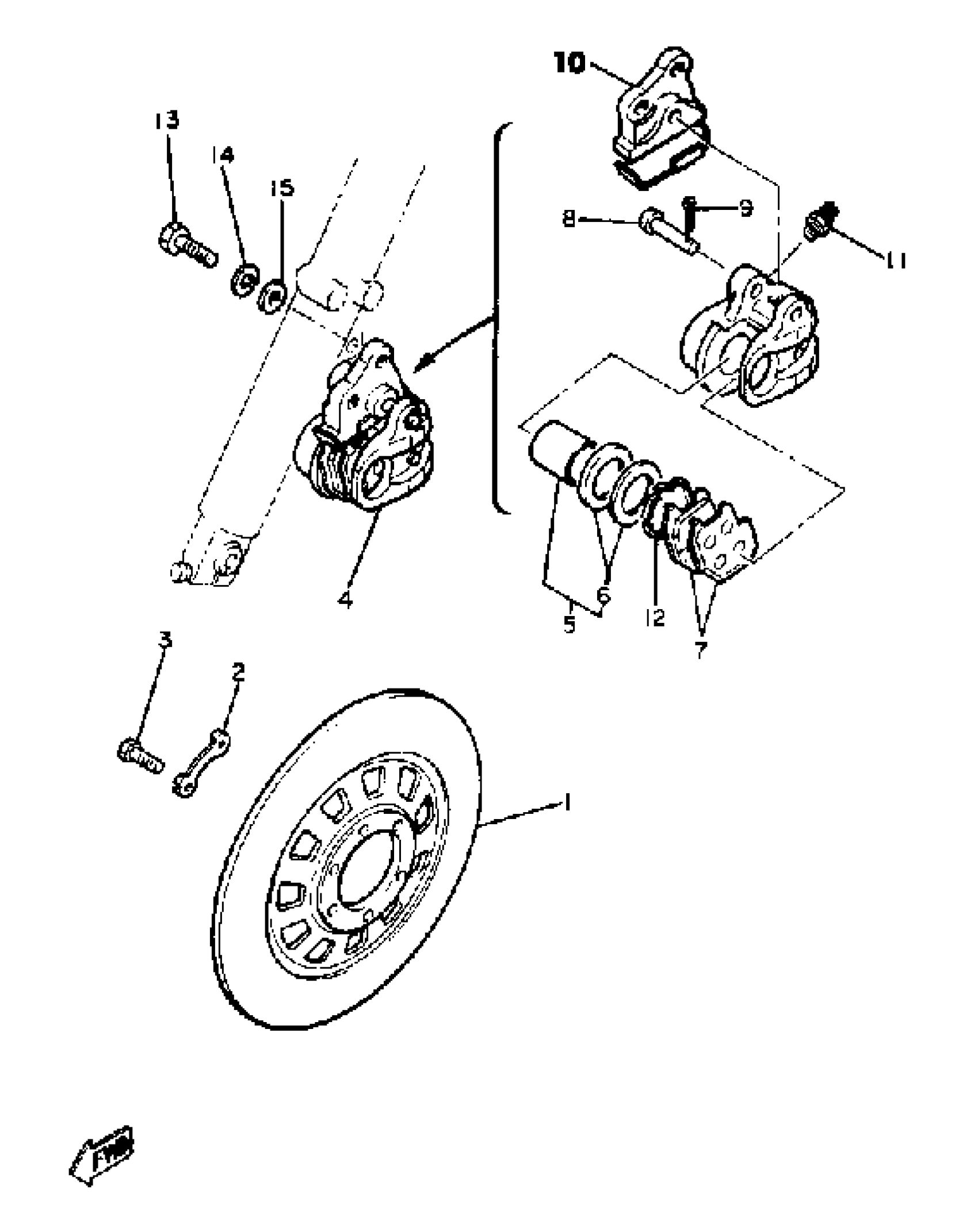

Yamaha XJ550RH (XJ550R) 1981 FRONT BRAKE CALIPER Diagram

DISC, BRAKE

WASHER, LOCK

BOLT, HEXAGON (1L9)

CALIPER ASSY RIGHT

.. PISTON ASSEMBLY, CALIPER

SEAL KIT

BRAKE PAD KIT

PIN, SLIDE

PIN, COTTER (648)

RETAINER

BLEED SCREW KIT

SHIM, CALIPER

SHIM, CALIPER

SHIM, CALIPER

BOLT, WASHER BASED(3VD)

YBS67-10 WASHER, SPRING

958-69527-00 WASHER, PLAIN
