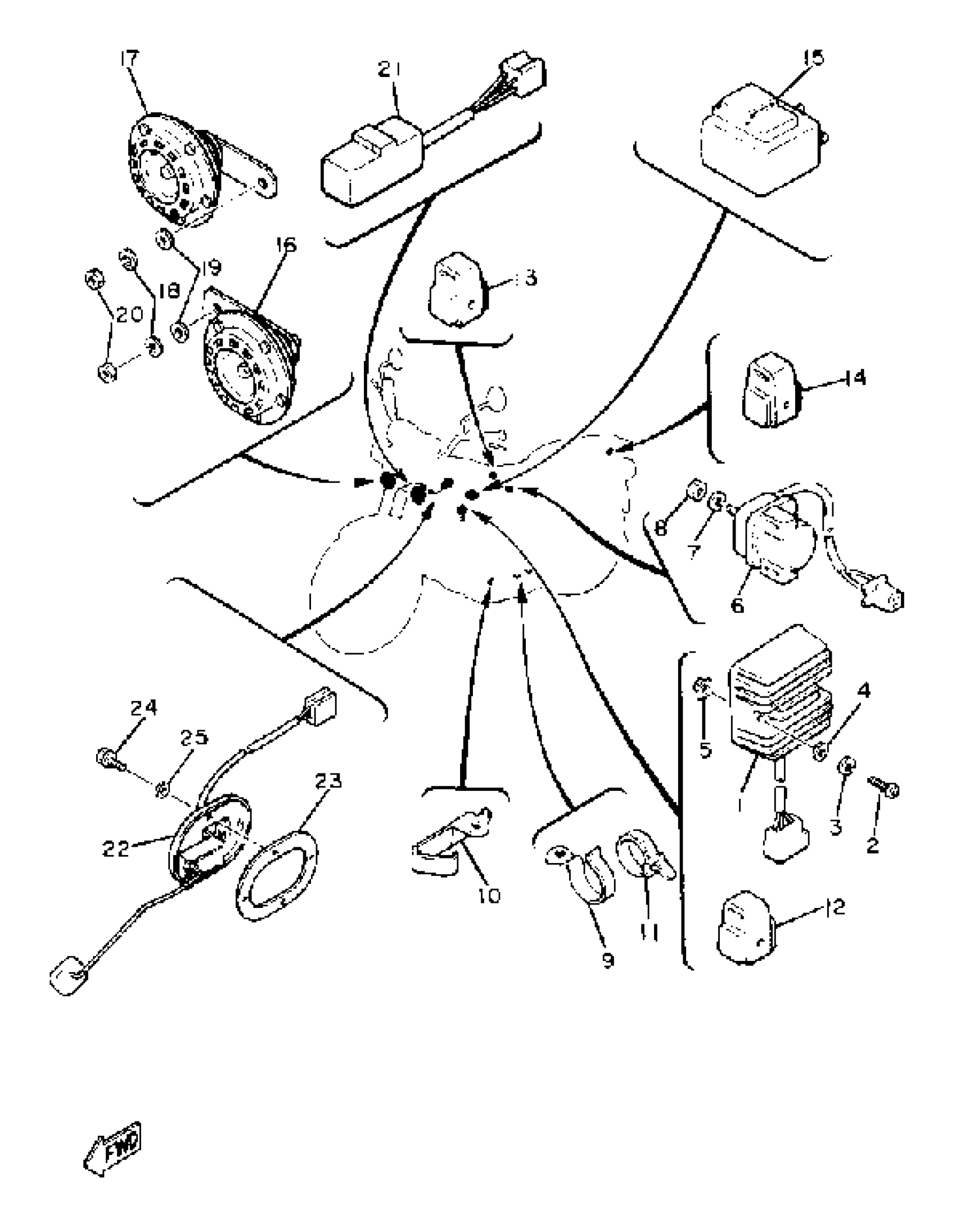

Yamaha XJ550RH (XJ550R) 1981 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

3G1-81960-A1-00

Unavailable

2

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

NUT, PLATE

4G0-21736-00-00

Unavailable

6

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

7

WASHER, SPRING

92995-06100-00

Unavailable

8

NUT(650)

95380-06700-00

$8.49

9

CLAMP (4G0)

90462-08078-00

$5.60

10

CLAMP

90462-08087-00

Unavailable

11

BAND

341-26397-01-00

Unavailable

12

RELAY ASSY

12R-81950-02-00

$70.99

13

RELAY ASSY (3H5-00)

3H5-81950-00-00

Unavailable

14

RELAY ASSY

4U8-81950-03-00

Unavailable

15

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

16

HORN

4G0-83371-20-00

Unavailable

17

HORN

4G0-83371-30-00

Unavailable

18

WASHER(JN5)

92907-08100-00

Unavailable

19

WASHER(6TC)

92907-08200-00

Unavailable

20

NUT, CAP

95307-08800-00

Unavailable

21

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

22

SENDER UNIT ASSEMBLY, FUEL METER

4G0-85752-00-00

Unavailable

23

GASKET, SENDER UNIT

2H7-85753-00-00

Unavailable

24

BOLT, FLANGE

95817-06014-00

Unavailable

25

WASHER, PLATE(3MB)

90202-05187-00

Unavailable
